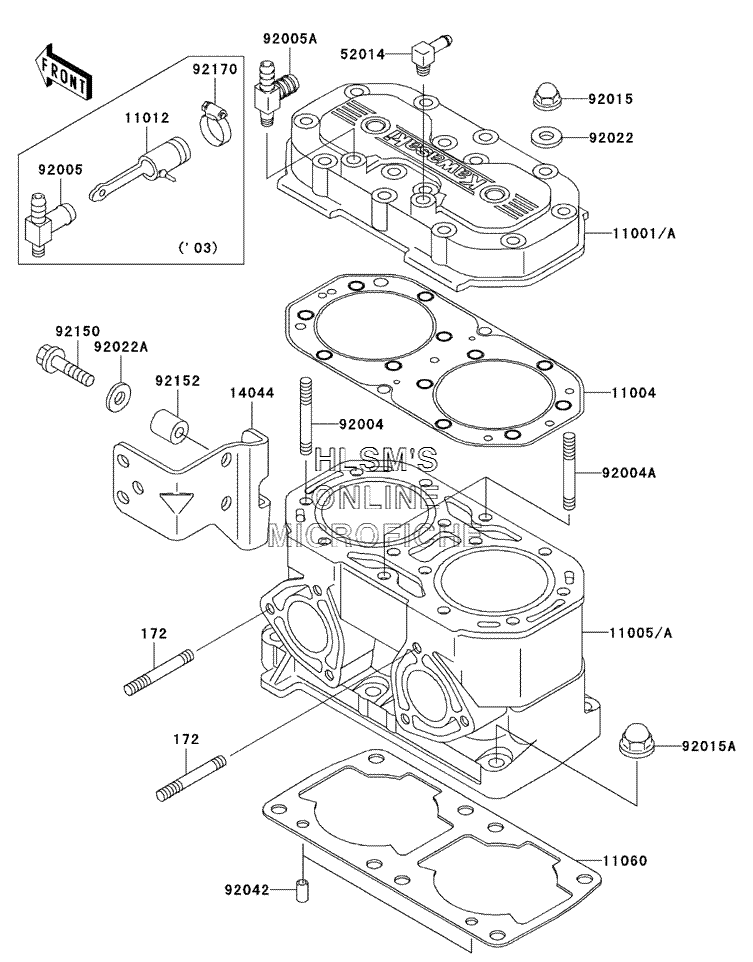

CYLINDER HEAD/CYLINDER для Kawasaki 800 SX-R (JS800-A3) - 2005 года выпуска
-
№АртикулНазвание
-
172172R0830 BOLT, STUDBOLT, STUD
-
11001A11001-3746 HEAD, CYLINDERHEAD, CYLINDER
-
1100411004-3720 GASKET, HEADGASKET, HEAD
-
11005A11005-3760 CYLINDER, ENGINECYLINDER, ENGINE
-
1106011060-3711 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1404414044-3728 HOLDER, CABLEHOLDER, CABLE
-
5201452014-3721 ELBOWELBOW
-
9200492004-3715 STUD, 8X43STUD, 8X43
-
92004A92004-3719 STUD, 8X43STUD, 8X43
-
92005A92005-3749 FITTINGFITTING
-
9201592015-1371 NUT, CAP, 8MMNUT, CAP, 8MM
-
92015A92015-1649 NUT, 10MMNUT, 10MM
-
9202292022-1964 WASHER, 8.2X18X1.5WASHER, 8.2X18X1.5
-
92022A92022-3743 WASHER, 8.2X18X1.5WASHER, 8.2X18X1.5
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9215092150-3833 BOLT, 8X35BOLT, 8X35
-
9215292152-3736 COLLARCOLLAR
