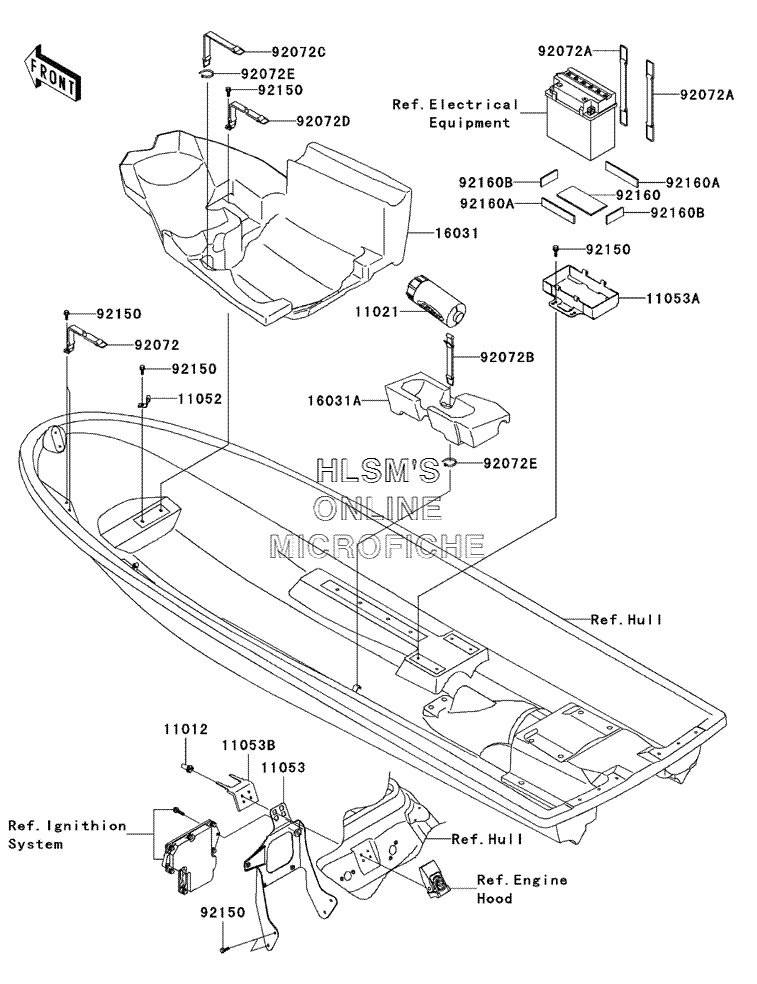

HULL FITTINGS для Kawasaki 800 SX-R (JS800-A3) - 2005 года выпуска
-
№АртикулНазвание
-
1101211012-3768 CAP, HOLDERCAP, HOLDER
-
1102111021-3706 CASE, ASSY., TOOLCASE, ASSY., TOOL
-
1105211052-3773 BRACKETBRACKET
-
1105311053-3702 BRACKETBRACKET
-
11053A11053-3727 BRACKET, BATTERYBRACKET, BATTERY
-
11053B11053-3747 BRACKETBRACKET
-
1603116031-3919 FLOAT, FUEL TANKFLOAT, FUEL TANK
-
16031A16031-3941 FLOATFLOAT
-
9207292072-3812 BAND, OIL TANKBAND, OIL TANK
-
92072A92072-3841 BAND, BATTERYBAND, BATTERY
-
92072B92072-3859 BAND, TOOL CASEBAND, TOOL CASE
-
92072C92072-3864 BAND, FUEL TANK (LEFT)BAND, FUEL TANK (LEFT)
-
92072D92072-3865 BAND, FUEL TANK (RIGHT)BAND, FUEL TANK (RIGHT)
-
92072E92072-3871 BAND, L=99BAND, L=99
-
9215092150-3758 BOLT, 6X20BOLT, 6X20
-
9216092160-1851 DAMPERDAMPER
-
92160A92160-3840 DAMPERDAMPER
-
92160B92160-3880 DAMPER, WATER MUFFLERDAMPER, WATER MUFFLER
