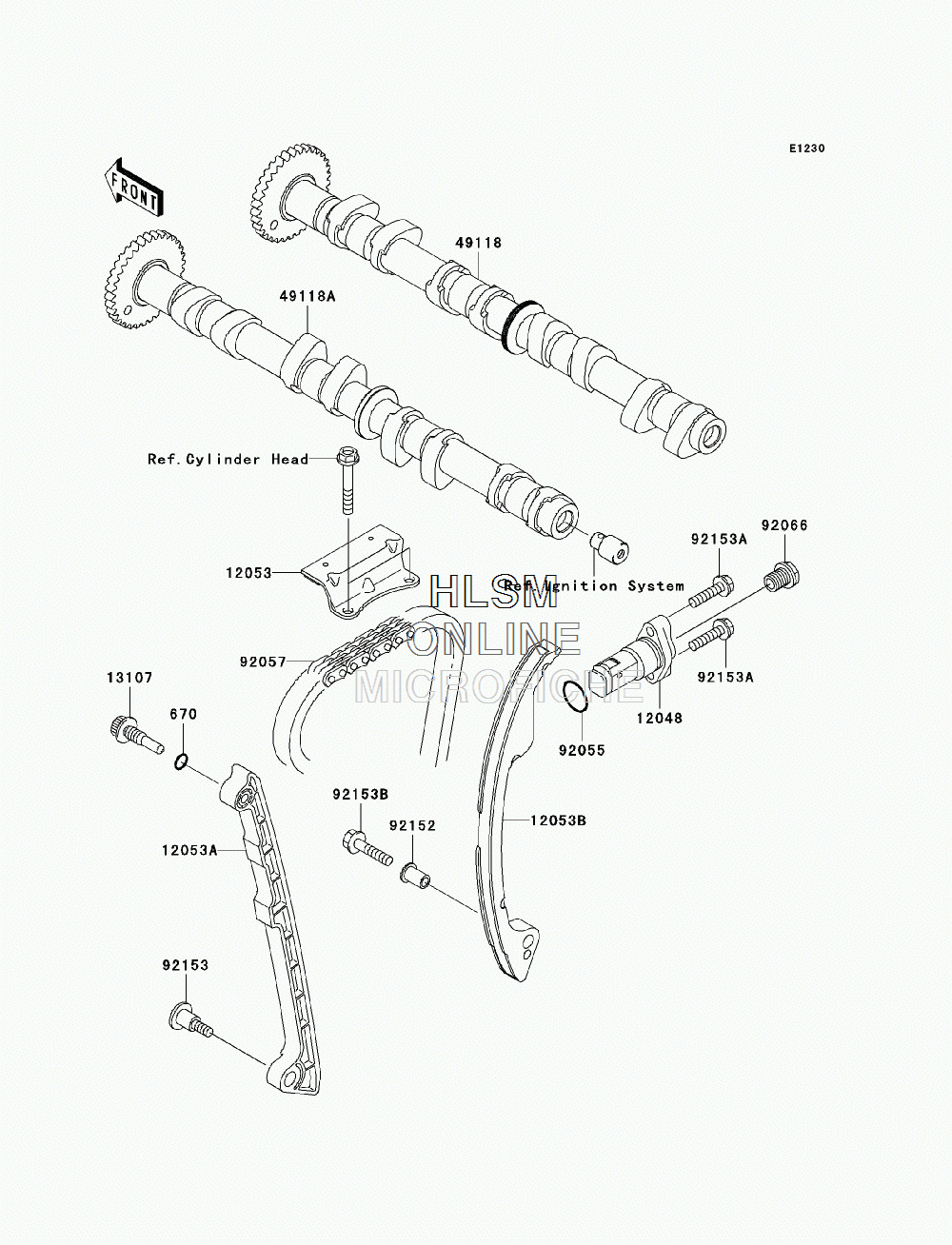

CAMSHAFT(S)/TENSIONER для Kawasaki ULTRA LX 3-PASS (JT1500G9F) - 2009 года выпуска
-
№АртикулНазвание
-
670670D1509 O-RING, 9MMO-RING, 9MM
-
1204812048-3701 TENSIONER-ASSYTENSIONER-ASSY
-
1205312053-1432 GUIDE-CHAIN, UPPGUIDE-CHAIN, UPP
-
12053A12053-3701 GUIDE-CHAIN, EXHAUST SIDEGUIDE-CHAIN, EXHAUST SIDE
-
12053B12053-3705 GUIDE-CHAIN, INTAKE SIDEGUIDE-CHAIN, INTAKE SIDE
-
1310713107-0157 SHAFT, CHAIN GUIDESHAFT, CHAIN GUIDE
-
4911849118-3709 CAMSHAFT-COMP, INTAKECAMSHAFT-COMP, INTAKE
-
49118A49118-3710 CAMSHAFT-COMP, EXHAUSTCAMSHAFT-COMP, EXHAUST
-
9205592055-086 O-RING, 18.8X1.9O-RING, 18.8X1.9
-
9205792057-3714 CHAIN, CAM, 98XRIGHT HAND2015-136LCHAIN, CAM, 98XRIGHT HAND2015-136L
-
9206692066-3780 PLUGPLUG
-
9215292152-1167 COLLARCOLLAR
-
9215392153-1200 BOLT, SOCKET, 6X24.5BOLT, SOCKET, 6X24.5
-
92153A92153-3705 BOLT, 6X25BOLT, 6X25
-
92153B92153-3710 BOLT, 6X28BOLT, 6X28
