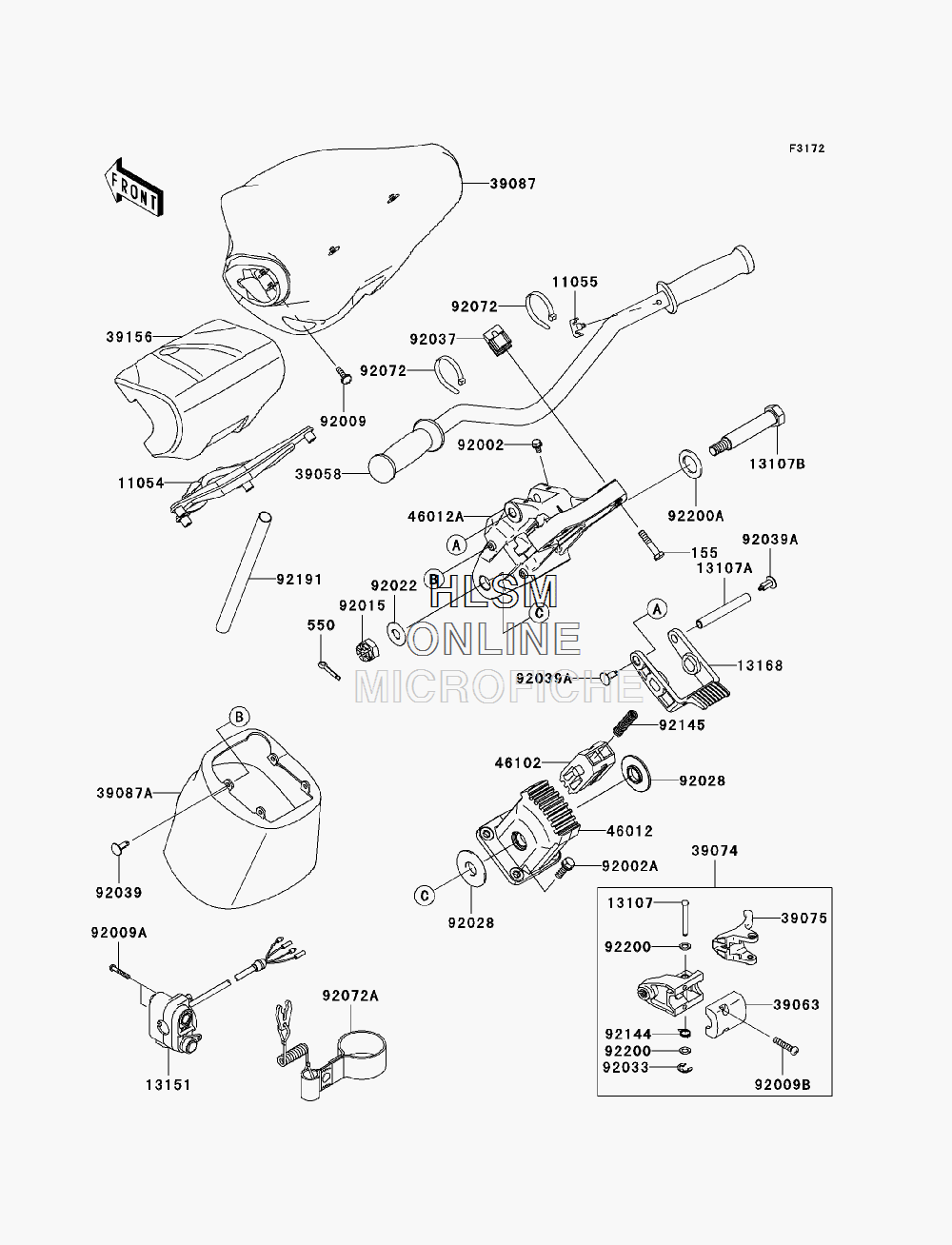

HANDLEBAR для Kawasaki ULTRA LX 3-PASS (JT1500G9F) - 2009 года выпуска
-
№АртикулНазвание
-
155155R0850 BOLT-WSP-SMALL, 8X50BOLT-WSP-SMALL, 8X50
-
550550S3035 PIN-COTTER, 3X35PIN-COTTER, 3X35
-
1105411054-3710 BRACKET, HANDLE PADBRACKET, HANDLE PAD
-
1105511055-3709 BRACKET, THROTTLE LEVERBRACKET, THROTTLE LEVER
-
1310713107-3740 SHAFTSHAFT
-
13107A13107-3795 SHAFTSHAFT
-
13107B13107-3803 SHAFT, HANDLE HOLDER PIVOTSHAFT, HANDLE HOLDER PIVOT
-
1315113151-3722 SWITCH-COMP, STOP & STARTSWITCH-COMP, STOP & START
-
1316813168-3754 LEVERLEVER
-
3905839058-3744-6Z HANDLE-COMP (F.BLACK)HANDLE-COMP (F.BLACK)
-
3906339063-3727 HOUSING-CONTROLHOUSING-CONTROL
-
3907439074-3726 LEVER-ASSY-THROTTLELEVER-ASSY-THROTTLE
-
3907539075-3714 LEVER-THROTTLELEVER-THROTTLE
-
3908739087-3735-6Z PAD-HANDLE (F.BLACK)PAD-HANDLE (F.BLACK)
-
39087A39087-3737-6Z PAD-HANDLE (F.BLACK)PAD-HANDLE (F.BLACK)
-
3915639156-3845 PAD, HANDLEPAD, HANDLE
-
4601246012-3730 HOLDER-HANDLE (LOWER)HOLDER-HANDLE (LOWER)
-
46012A46012-3732 HOLDER-HANDLE (UPPER)HOLDER-HANDLE (UPPER)
-
4610246102-3733 ROD, HANDLE POSITIONROD, HANDLE POSITION
-
9200292002-3763 BOLT, 6X12BOLT, 6X12
-
92002A92002-3774 BOLT, 8X25BOLT, 8X25
-
9200992009-3781 SCREW, 6X20SCREW, 6X20
-
92009A92009-3836 SCREW, 5X30SCREW, 5X30
-
92009B92009-3837 SCREW, 6X30SCREW, 6X30
-
9201592015-3805 NUT, CASTLE, 14MMNUT, CASTLE, 14MM
-
9202292022-3738 WASHER, 15X34X2.0WASHER, 15X34X2.0
-
9202892028-3743 BUSHINGBUSHING
-
9203392033-3723 RING-SNAPRING-SNAP
-
9203792037-503 CLAMP, HANDLEBARCLAMP, HANDLEBAR
-
9203992039-3787 RIVETRIVET
-
92039A92039-3788 RIVETRIVET
-
9207292072-0105 BAND, L=188.85BAND, L=188.85
-
92072A92072-3816 BAND, TETHER SWITCHBAND, TETHER SWITCH
-
9214492144-3749 SPRINGSPRING
-
9214592145-3723 SPRINGSPRING
-
9219192191-3792 TUBE, 22X24X200TUBE, 22X24X200
-
9220092200-3738 WASHERWASHER
-
92200A92200-3802 WASHER, 21X34X2WASHER, 21X34X2
