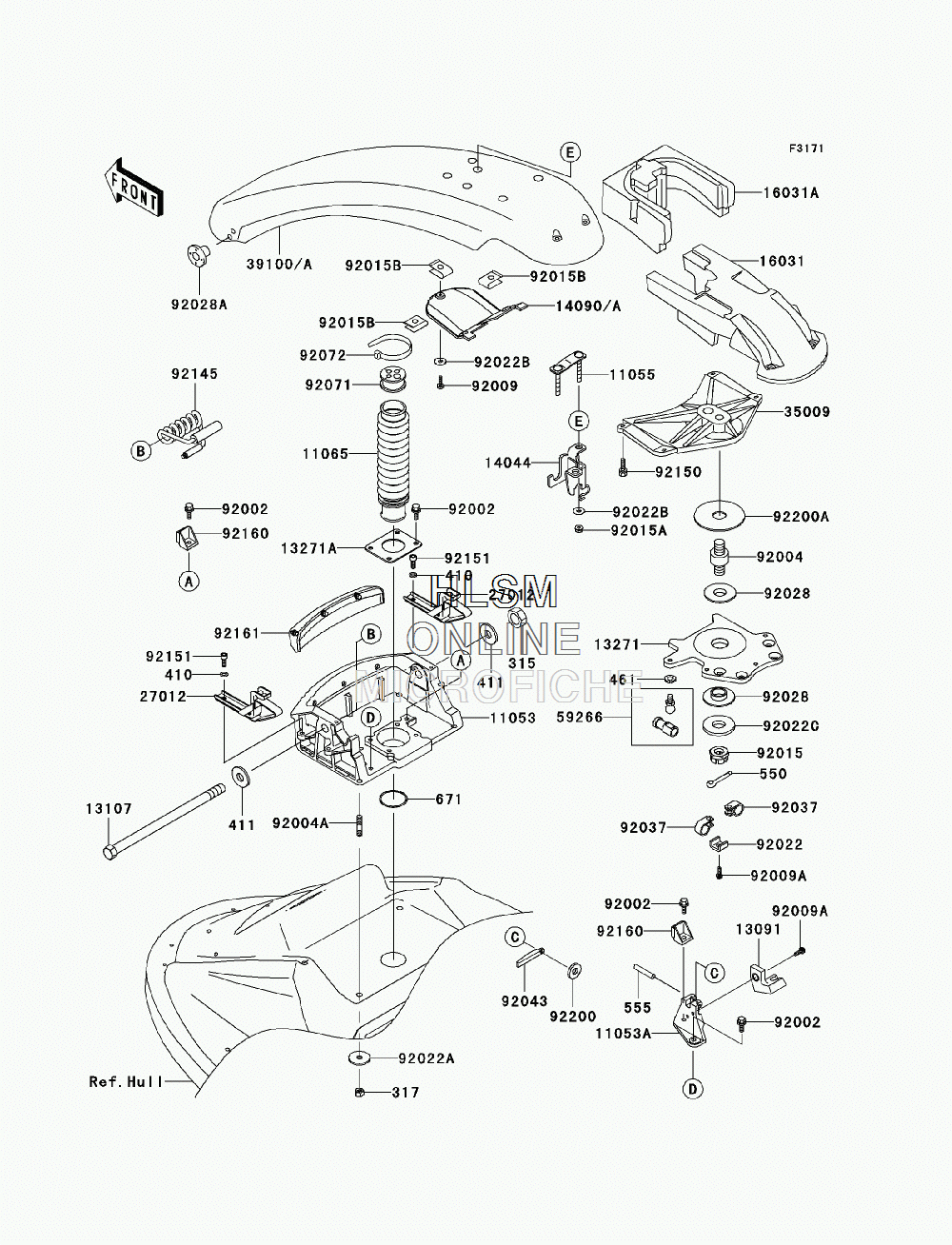

HANDLE POLE для Kawasaki 800 SX-R (JS800ABF) - 2011 года выпуска
-
№АртикулНазвание
-
1105311053-3741 BRACKETBRACKET
-
11053A11053-3749 BRACKETBRACKET
-
1105511055-3715 BRACKETBRACKET
-
1106511065-3726 CAPCAP
-
1309113091-3774 HOLDERHOLDER
-
1310713107-3781 SHAFTSHAFT
-
1327113271-3845 PLATEPLATE
-
13271A13271-3882 PLATEPLATE
-
1404414044-3716 HOLDER-CABLEHOLDER-CABLE
-
1409014090-3708-H1 COVER, HANDLE POLE (S.RED) (USA ONLY) (FOR 8C)COVER, HANDLE POLE (S.RED) (USA ONLY) (FOR 8C)
-
14090A14090-3708-367 COVER, HANDLE POLE (C.L.GREEN) (CANADA ONLY) (FOR 650)COVER, HANDLE POLE (C.L.GREEN) (CANADA ONLY) (FOR 650)
-
1603116031-3951 FLOAT, HANDLE POLEFLOAT, HANDLE POLE
-
16031A16031-3952 FLOAT, HANDLE POLEFLOAT, HANDLE POLE
-
2701227012-3859 HOOKHOOK
-
3500935009-3712 BRACEBRACE
-
3910039100-3717-H1 POLE-COMP-HANDLE (S.RED) (USA ONLY) (FOR 8C)POLE-COMP-HANDLE (S.RED) (USA ONLY) (FOR 8C)
-
39100A39100-3717-367 POLE-COMP-HANDLE (C.L.GREEN) (CANADA ONLY) (FOR 650)POLE-COMP-HANDLE (C.L.GREEN) (CANADA ONLY) (FOR 650)
-
5926659266-3707 JOINT-BALLJOINT-BALL
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
9200492004-3728 STUDSTUD
-
92004A92004-3756 STUD, 8X25STUD, 8X25
-
9200992009-3797 SCREW, 5X16SCREW, 5X16
-
92009A92009-3868 SCREW, 5X16SCREW, 5X16
-
9201592015-3006 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
92015A92015-3767 NUT, 6MMNUT, 6MM
-
92015B92015-3830 NUT, CLIP, 5MMNUT, CLIP, 5MM
-
9202292022-3014 WASHER, CLAMPWASHER, CLAMP
-
92022A92022-3746 WASHER, 8.5X34X3WASHER, 8.5X34X3
-
92022B92022-567 WASHERWASHER
-
92022C92022-571 WASHERWASHER
-
9202892028-3743 BUSHINGBUSHING
-
92028A92028-3752 BUSHING, STEERINGBUSHING, STEERING
-
9203792037-3007 CLAMP, LEAD WIRECLAMP, LEAD WIRE
-
9204392043-3754 PIN, STOPPERPIN, STOPPER
-
9207192071-3788 GROMMETGROMMET
-
9207292072-0105 BAND, L=188.85BAND, L=188.85
-
315315R1400 NUT-HEX-FINE, 14MMNUT-HEX-FINE, 14MM
-
317317R0800 NUT-HEX-SMALLNUT-HEX-SMALL
-
410410S0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
411411S1400 WASHER-PLAIN, 14MMWASHER-PLAIN, 14MM
-
461461S0600 WASHER-SPRING, 6MMWASHER-SPRING, 6MM
-
550550S4040 PIN-COTTER, 4X40PIN-COTTER, 4X40
-
555555B0325 PIN-SPRING, 3X25PIN-SPRING, 3X25
-
671671B2540 O-RING, 40MMO-RING, 40MM
-
9214592145-3720 SPRINGSPRING
-
9215092150-3758 BOLT, 6X20BOLT, 6X20
-
9215192151-3770 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9216092160-3790 DAMPERDAMPER
-
9216192161-3743 DAMPERDAMPER
-
9220092200-3723 WASHER, 3.5X12X1WASHER, 3.5X12X1
-
92200A92200-3725 WASHER, 20.5X80X3WASHER, 20.5X80X3
