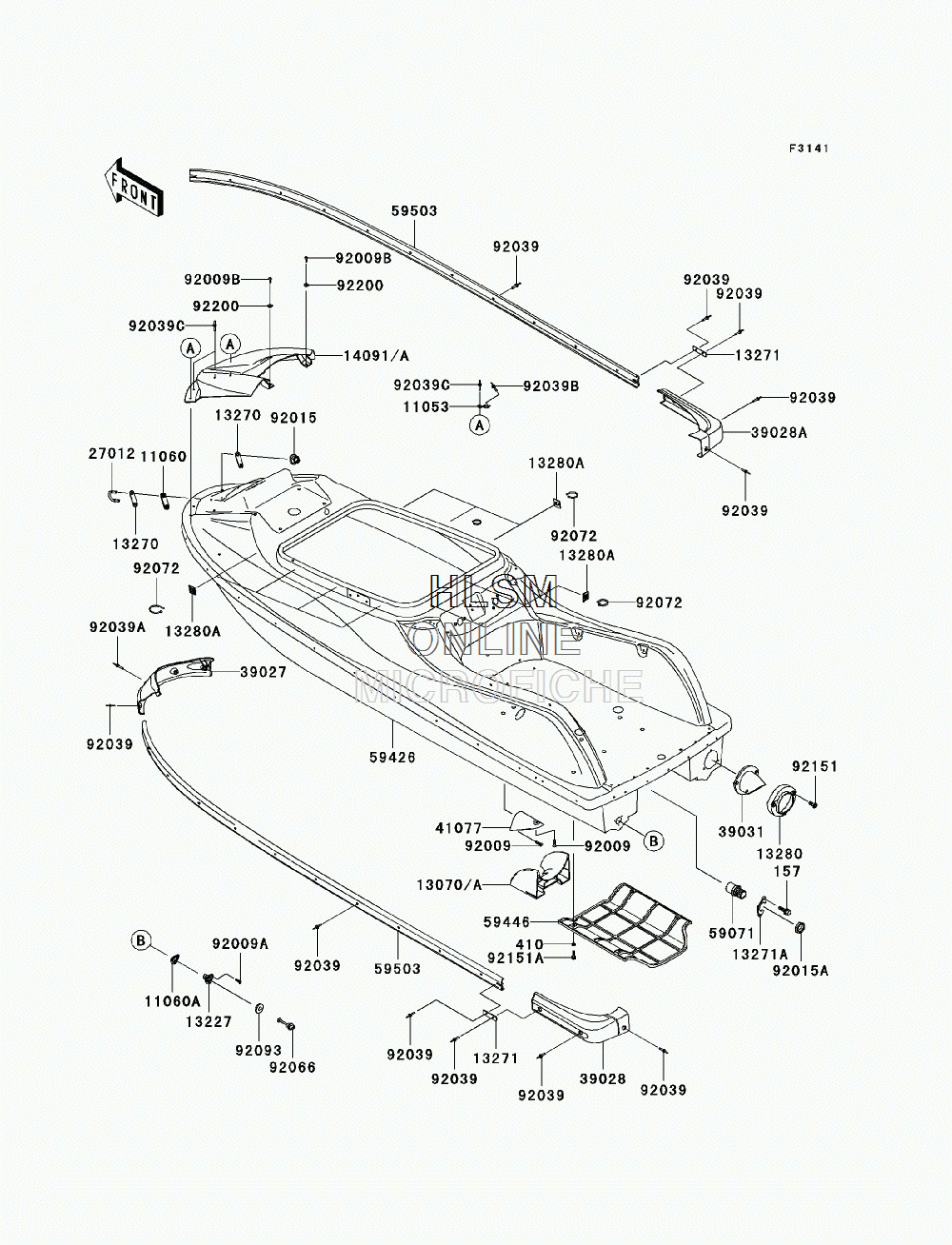

HULL для Kawasaki 800 SX-R (JS800ABF) - 2011 года выпуска
-
№АртикулНазвание
-
1105311053-3739 BRACKETBRACKET
-
1106011060-3799 GASKET, U HOOK (FRONT)GASKET, U HOOK (FRONT)
-
11060A11060-3801 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
1307013070-3732-H8 GUIDE, INTAKE (EBONY) (CANADA ONLY) (FOR 650)GUIDE, INTAKE (EBONY) (CANADA ONLY) (FOR 650)
-
13070A13070-3732-8C GUIDE, INTAKE (J.WHITE) (USA ONLY) (FOR 8C)GUIDE, INTAKE (J.WHITE) (USA ONLY) (FOR 8C)
-
1322713227-3721-6Z HOUSING, DRAIN PLUG (F.BLACK)HOUSING, DRAIN PLUG (F.BLACK)
-
1327013270-3896 PLATEPLATE
-
1327113271-3884 PLATEPLATE
-
13271A13271-3909 PLATEPLATE
-
1328013280-3742 HOLDER, TAIL PIPE CAPHOLDER, TAIL PIPE CAP
-
13280A13280-3757 HOLDERHOLDER
-
1409114091-3773-H8 COVER, NOSE (EBONY) (USA ONLY) (FOR 8C)COVER, NOSE (EBONY) (USA ONLY) (FOR 8C)
-
14091A14091-3773-367 COVER, NOSE (C.L.GREEN) (CANADA ONLY) (FOR 650)COVER, NOSE (C.L.GREEN) (CANADA ONLY) (FOR 650)
-
2701227012-3797 HOOKHOOK
-
3902739027-3745-6Z BUMPER-FRONT (F.BLACK)BUMPER-FRONT (F.BLACK)
-
3902839028-3753-6Z BUMPER-REAR (LEFT) (F.BLACK)BUMPER-REAR (LEFT) (F.BLACK)
-
39028A39028-3754-6Z BUMPER-REAR (RIGHT) (F.BLACK)BUMPER-REAR (RIGHT) (F.BLACK)
-
3903139031-3709 CAP-END, TAIL PIPECAP-END, TAIL PIPE
-
4107741077-3701 ADAPTERADAPTER
-
5907159071-3763 JOINTJOINT
-
5942659426-3943-22 HULL-COMP (J.WHITE) (USA ONLY) (FOR 8C)HULL-COMP (J.WHITE) (USA ONLY) (FOR 8C)
-
5944659446-3755 COVER-JET PUMPCOVER-JET PUMP
-
5950359503-3707-6Z FENDER-BOAT (F.BLACK)FENDER-BOAT (F.BLACK)
-
9200992009-3842 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
92009A92009-3849 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
92009B92009-3868 SCREW, 5X16SCREW, 5X16
-
9201592015-3709 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-3738 NUT, 20MMNUT, 20MM
-
9203992039-3778 RIVETRIVET
-
92039A92039-3779 RIVETRIVET
-
92039B92039-3780 RIVETRIVET
-
92039C92039-3794 RIVETRIVET
-
9206692066-3783-6Z PLUG (REAR), DRAIN (F.BLACK)PLUG (REAR), DRAIN (F.BLACK)
-
9207292072-0105 BAND, L=188.85BAND, L=188.85
-
9209392093-3720 SEALSEAL
-
157157R0518 BOLT-WSP, 5X18BOLT-WSP, 5X18
-
410410S0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
9215192151-3746 BOLT, SOCKET, M6, SHOULDERBOLT, SOCKET, M6, SHOULDER
-
92151A92151-3774 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
9220092200-3714 WASHER, 5.9X16X1.5WASHER, 5.9X16X1.5
