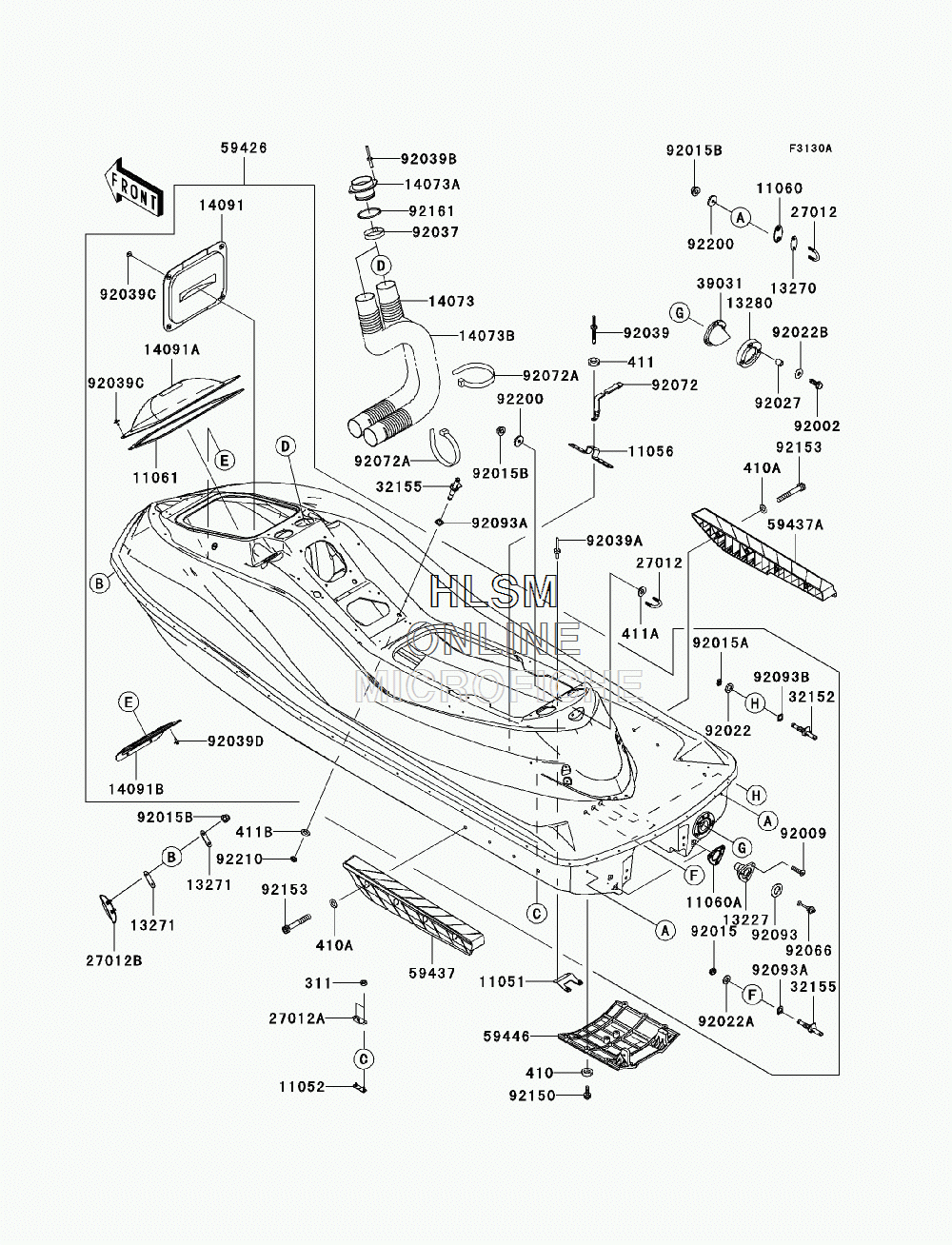

HULL для Kawasaki ULTRA LX 3-PASS (JT1500GBF) - 2011 года выпуска
-
№АртикулНазвание
-
1105111051-3802 BRACKET, BREATHER-BILGEBRACKET, BREATHER-BILGE
-
1105211052-3712 BRACKET, REAR DUCTBRACKET, REAR DUCT
-
1105611056-3722 BRACKET, WATER MUFFLERBRACKET, WATER MUFFLER
-
1106011060-3800 GASKET, U HOOK (REAR)GASKET, U HOOK (REAR)
-
11060A11060-3801 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
1106111061-3754 GASKET, BATTERY COVERGASKET, BATTERY COVER
-
1322713227-3721-6Z HOUSING, DRAIN PLUG (F.BLACK)HOUSING, DRAIN PLUG (F.BLACK)
-
1327013270-3860 PLATEPLATE
-
1327113271-3724 PLATEPLATE
-
1328013280-3718 HOLDER, EXHAUST VALVEHOLDER, EXHAUST VALVE
-
1407314073-3804 DUCT, L=800DUCT, L=800
-
14073A14073-3805 DUCTDUCT
-
14073B14073-3836 DUCT, L=1000DUCT, L=1000
-
1409114091-3786 COVER, ECUCOVER, ECU
-
14091A14091-3809 COVER, BATTERYCOVER, BATTERY
-
14091B14091-3819 COVER, STORAGE CASECOVER, STORAGE CASE
-
2701227012-3797 HOOKHOOK
-
27012A27012-3816 HOOKHOOK
-
27012B27012-3822-6Z HOOK, BOW (F.BLACK)HOOK, BOW (F.BLACK)
-
3215232152-3749 PIPEPIPE
-
3215532155-3702 PIPE, COOLINGPIPE, COOLING
-
3903139031-3704 CAP-ENDCAP-END
-
5942659426-3976-8C HULL-COMP (J.WHITE)HULL-COMP (J.WHITE)
-
5943759437-3741-6Z STABILIZER (LEFT) (F.BLACK)STABILIZER (LEFT) (F.BLACK)
-
59437A59437-3742-6Z STABILIZER (RIGHT) (F.BLACK)STABILIZER (RIGHT) (F.BLACK)
-
5944659446-3759 COVER-JET PUMPCOVER-JET PUMP
-
9200292002-3755 BOLT, 6X20BOLT, 6X20
-
9200992009-3849 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
9201592015-1477 NUT, 16MMNUT, 16MM
-
92015A92015-1589 NUT, 20MMNUT, 20MM
-
92015B92015-1933 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202292022-1116 WASHER, 20.3X36X2.3WASHER, 20.3X36X2.3
-
92022A92022-1903 WASHER, 17.3X30X2.3WASHER, 17.3X30X2.3
-
92022B92022-567 WASHERWASHER
-
9202792027-3705 COLLAR, 6.2X10X10COLLAR, 6.2X10X10
-
9203792037-3738 CLAMPCLAMP
-
311311R0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
410410S0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
410A410S0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
411411S0500 WASHER-PLAIN, 5MMWASHER-PLAIN, 5MM
-
411A411S0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
411B411S1600 WASHER-PLAINWASHER-PLAIN
-
9203992039-3741 RIVETRIVET
-
92039A92039-3755 RIVETRIVET
-
92039B92039-3775 RIVETRIVET
-
92039C92039-3785 RIVETRIVET
-
92039D92039-3788 RIVETRIVET
-
9206692066-3783-6Z PLUG, REAR, DRAIN (F.BLACK)PLUG, REAR, DRAIN (F.BLACK)
-
9207292072-3814 BAND, 314X18BAND, 314X18
-
92072A92072-3884 BAND, L=608.22BAND, L=608.22
-
9209392093-3720 SEALSEAL
-
92093A92093-3783 SEALSEAL
-
92093B92093-3784 SEALSEAL
-
9215092150-3775 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
9215392153-3746 BOLT, SOCKET, 8X55BOLT, SOCKET, 8X55
-
9216192161-3769 DAMPERDAMPER
-
9220092200-3779 WASHERWASHER
-
9221092210-3707 NUTNUT
