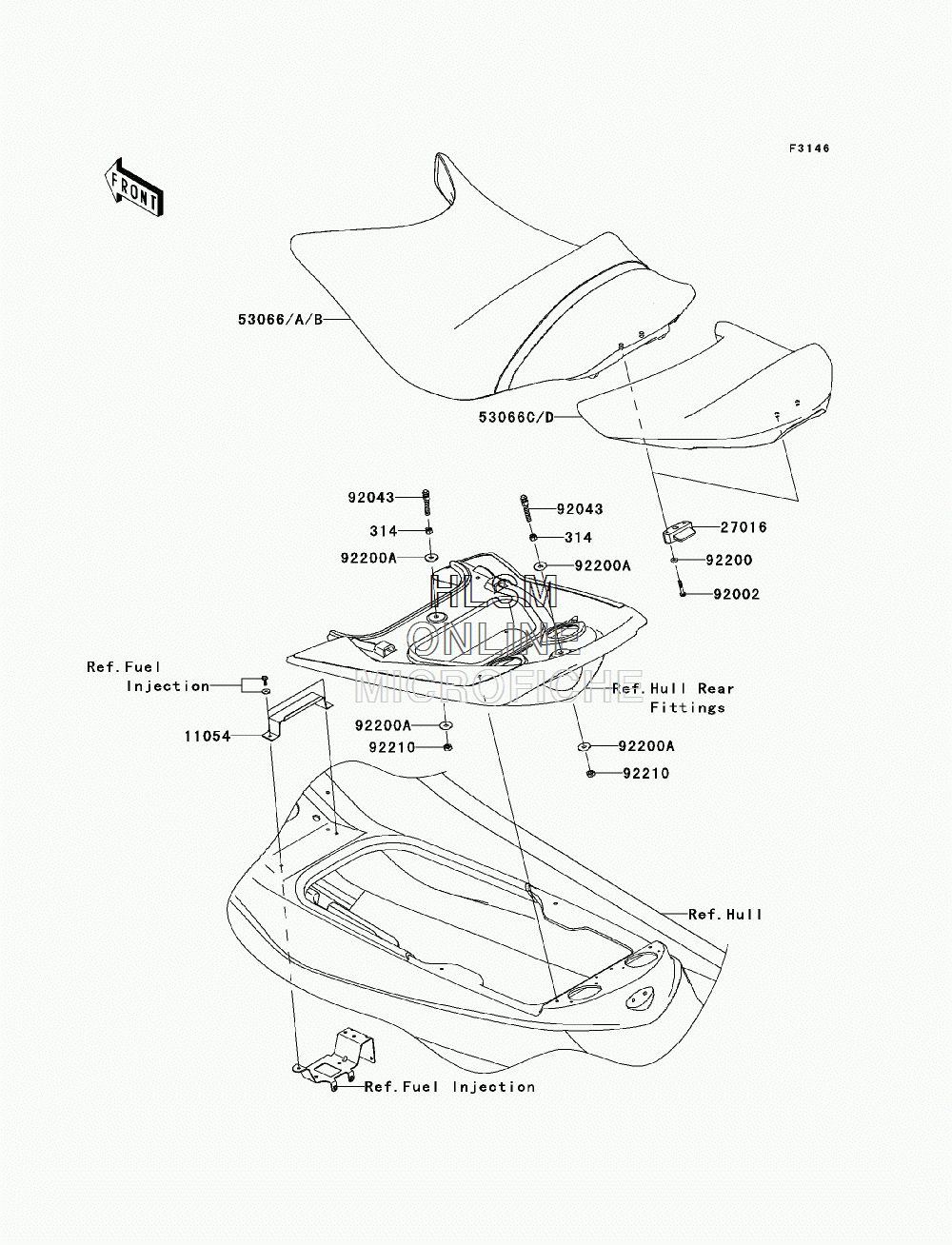

SEAT для Kawasaki ULTRA LX 3-PASS (JT1500GBF) - 2011 года выпуска
-
№АртикулНазвание
-
314314R1000 NUT-HEX-FINE, 10MMNUT-HEX-FINE, 10MM
-
1105411054-3702 BRACKET, FRONT SEATBRACKET, FRONT SEAT
-
2701627016-3758 LOCK-ASSY, SEAT, FR & REARLOCK-ASSY, SEAT, FR & REAR
-
53066B53066-3719-13M SEAT (FRONT), LEATHER SIL+BAND SILSEAT (FRONT), LEATHER SIL+BAND SIL
-
53066D53066-3720-12N SEAT-ASSY (REAR) (P.SILVER)SEAT-ASSY (REAR) (P.SILVER)
-
9200292002-3716 BOLT, 6X40BOLT, 6X40
-
9204392043-3763 PINPIN
-
9220092200-1543 WASHER, 6.5X16X2.0WASHER, 6.5X16X2.0
-
92200A92200-3762 WASHERWASHER
-
9221092210-3792 NUT, LOCK, 10MMNUT, LOCK, 10MM
