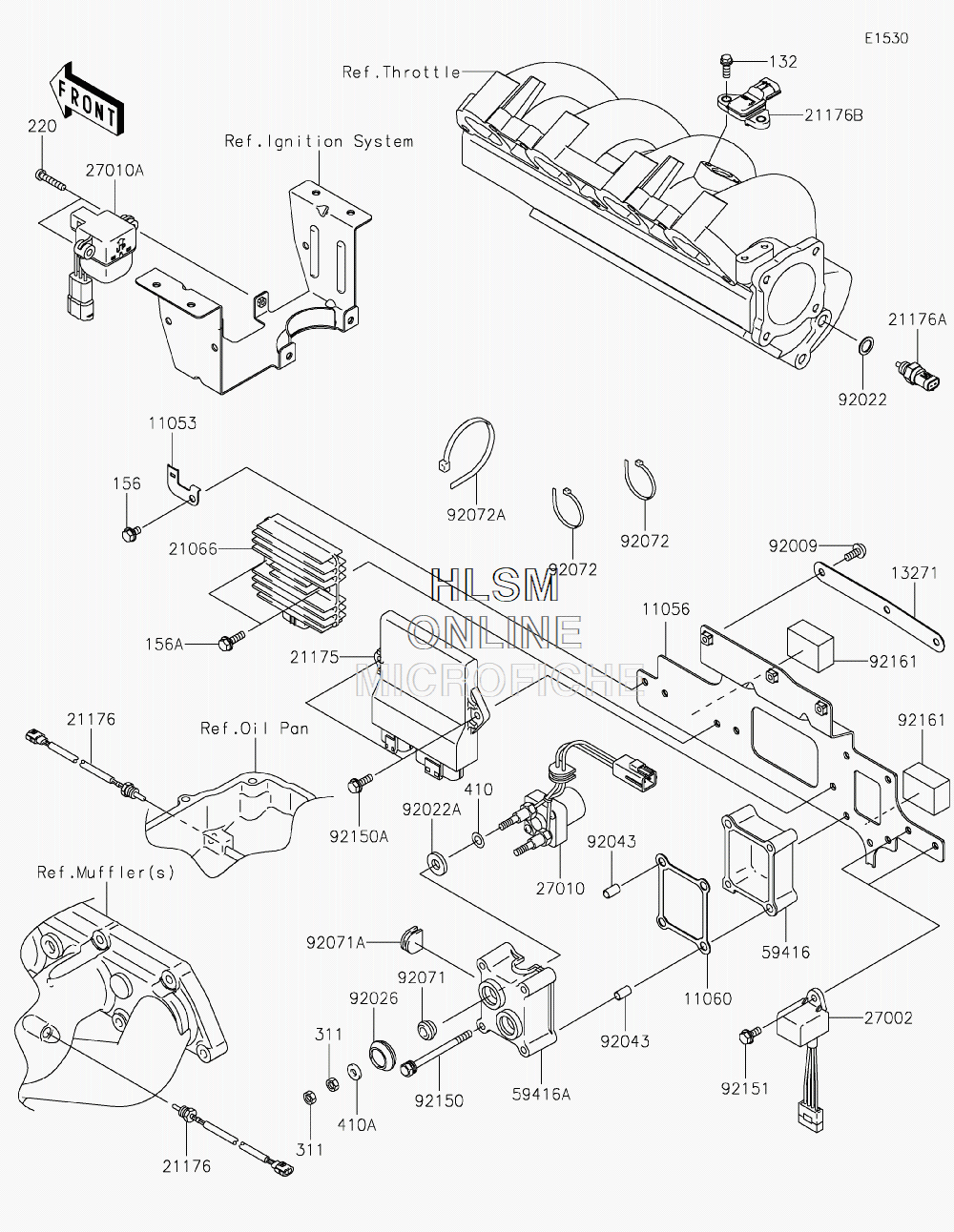

FUEL INJECTION для Kawasaki STX-15F [JT1500AGF] - 2016 года выпуска
-
№АртикулНазвание
-
1105311053-3724 BRACKET, FUSEBRACKET, FUSE
-
1105611056-4115 BRACKET, SWITCHBRACKET, SWITCH
-
1106011060-3709 GASKETGASKET
-
132132BD0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
1327113271-3842 PLATEPLATE
-
156156R0610 BOLT-WP, 6X10BOLT-WP, 6X10
-
156A156R0620 BOLT-WP, 6X20BOLT-WP, 6X20
-
2106621066-3718 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
2117521175-0968 CONTROL UNIT-ELECTRONICCONTROL UNIT-ELECTRONIC
-
2117621176-0741 SENSOR, TEMPSENSOR, TEMP
-
21176A21176-1086 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
21176B21176-3765 SENSOR, PRESSURESENSOR, PRESSURE
-
220220R0420 SCREW-PAN-CROS, 4X20SCREW-PAN-CROS, 4X20
-
2700227002-3703 RELAY-ASSYRELAY-ASSY
-
2701027010-3777 SWITCHSWITCH
-
27010A27010-3785 SWITCH, VDSSWITCH, VDS
-
311311R0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
410410AA1000 WASHER-PLAIN-SMALL, 10MMWASHER-PLAIN-SMALL, 10MM
-
410A410S0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
5941659416-3765 CASE-ELECTRICCASE-ELECTRIC
-
59416A59416-3766 CASE-ELECTRICCASE-ELECTRIC
-
9200992009-3830 SCREW, 6X15SCREW, 6X15
-
9202292022-1211 WASHER, 12X18X1.0WASHER, 12X18X1.0
-
92022A92022-3035 WASHERWASHER
-
9202692026-3703 SPACERSPACER
-
9204392043-3715 PINPIN
-
9207192071-3004 GROMMETGROMMET
-
92071A92071-3837 GROMMETGROMMET
-
9207292072-0105 BAND, L=188.85BAND, L=188.85
-
92072A92072-3883 BAND, L=372.24BAND, L=372.24
-
9215092150-3711 BOLT, 6X80BOLT, 6X80
-
92150A92150-3729 BOLT, 6X18BOLT, 6X18
-
9215192151-3788 BOLT, 6X14BOLT, 6X14
-
9216192161-3752 DAMPERDAMPER
