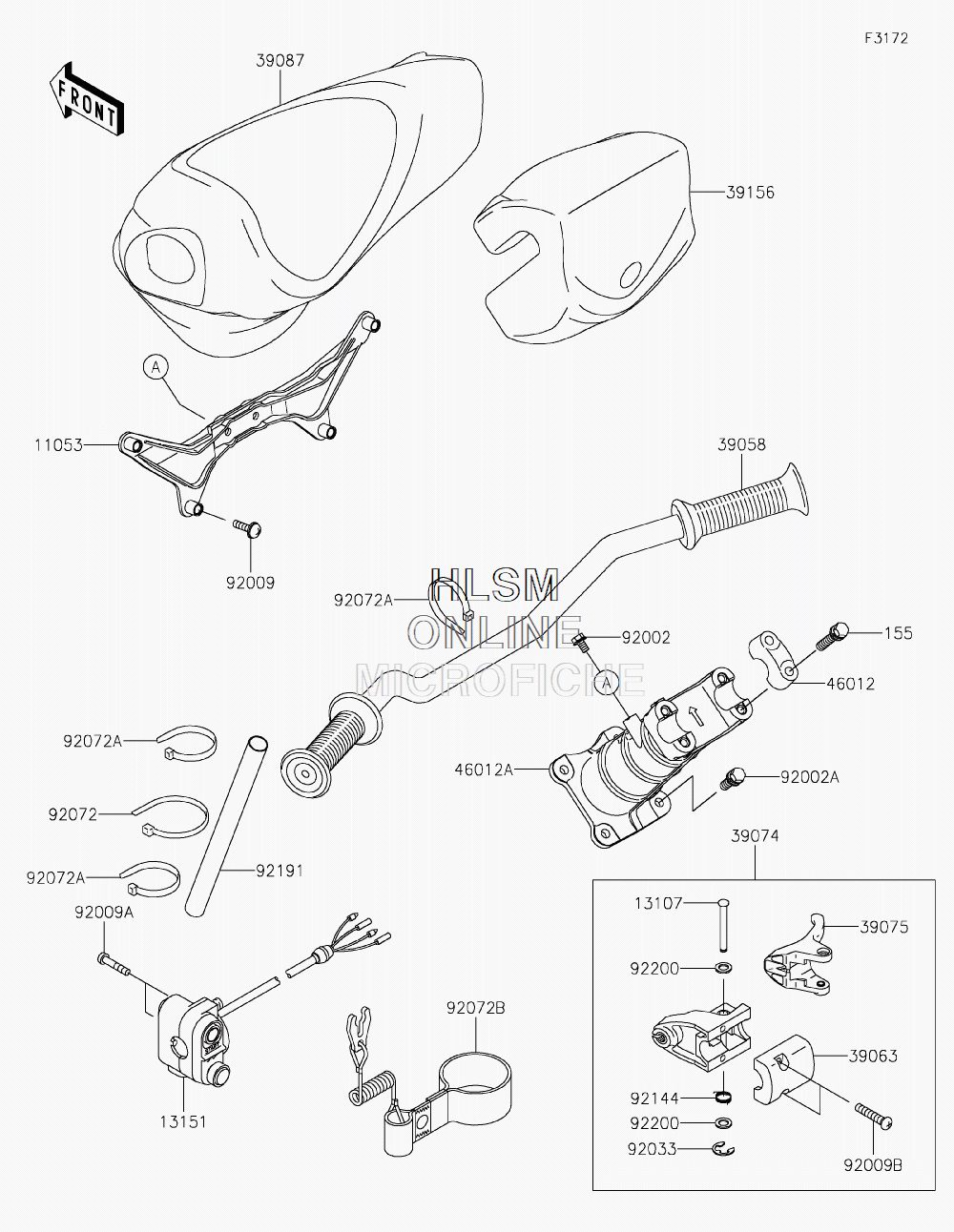

HANDLEBAR для Kawasaki STX-15F [JT1500AGF] - 2016 года выпуска
-
№АртикулНазвание
-
1105311053-3762 BRACKET, HANDLE PADBRACKET, HANDLE PAD
-
1310713107-3740 SHAFTSHAFT
-
1315113151-3722 SWITCH-COMP, STOP & STARTSWITCH-COMP, STOP & START
-
155155R0840 BOLT-WSP-SMALL, 8X40BOLT-WSP-SMALL, 8X40
-
3905839058-3735-6Z HANDLE-COMP, (F.BLACK)HANDLE-COMP, (F.BLACK)
-
3906339063-3727 HOUSING-CONTROLHOUSING-CONTROL
-
3907439074-3726 LEVER-ASSY-THROTTLELEVER-ASSY-THROTTLE
-
3907539075-3714 LEVER-THROTTLELEVER-THROTTLE
-
3908739087-3730-6Z PAD-HANDLE, (F.BLACK)PAD-HANDLE, (F.BLACK)
-
3915639156-3839 PAD, HANDLEPAD, HANDLE
-
4601246012-3720 HOLDER-HANDLE, UPPERHOLDER-HANDLE, UPPER
-
46012A46012-3728 HOLDER-HANDLEHOLDER-HANDLE
-
9200292002-3763 BOLT, 6X12BOLT, 6X12
-
92002A92002-3774 BOLT, 8X25BOLT, 8X25
-
9200992009-3781 SCREW, 6X20SCREW, 6X20
-
92009A92009-3836 SCREW, 5X30SCREW, 5X30
-
92009B92009-3837 SCREW, 6X30SCREW, 6X30
-
9203392033-3723 RING-SNAPRING-SNAP
-
9207292072-0104 BAND, L=286.69BAND, L=286.69
-
92072A92072-0105 BAND, L=188.85BAND, L=188.85
-
92072B92072-3809 BAND, TETHER SWITCHBAND, TETHER SWITCH
-
9214492144-3749 SPRINGSPRING
-
9219192191-3792 TUBE, 22X24X200TUBE, 22X24X200
-
9220092200-3738 WASHERWASHER
