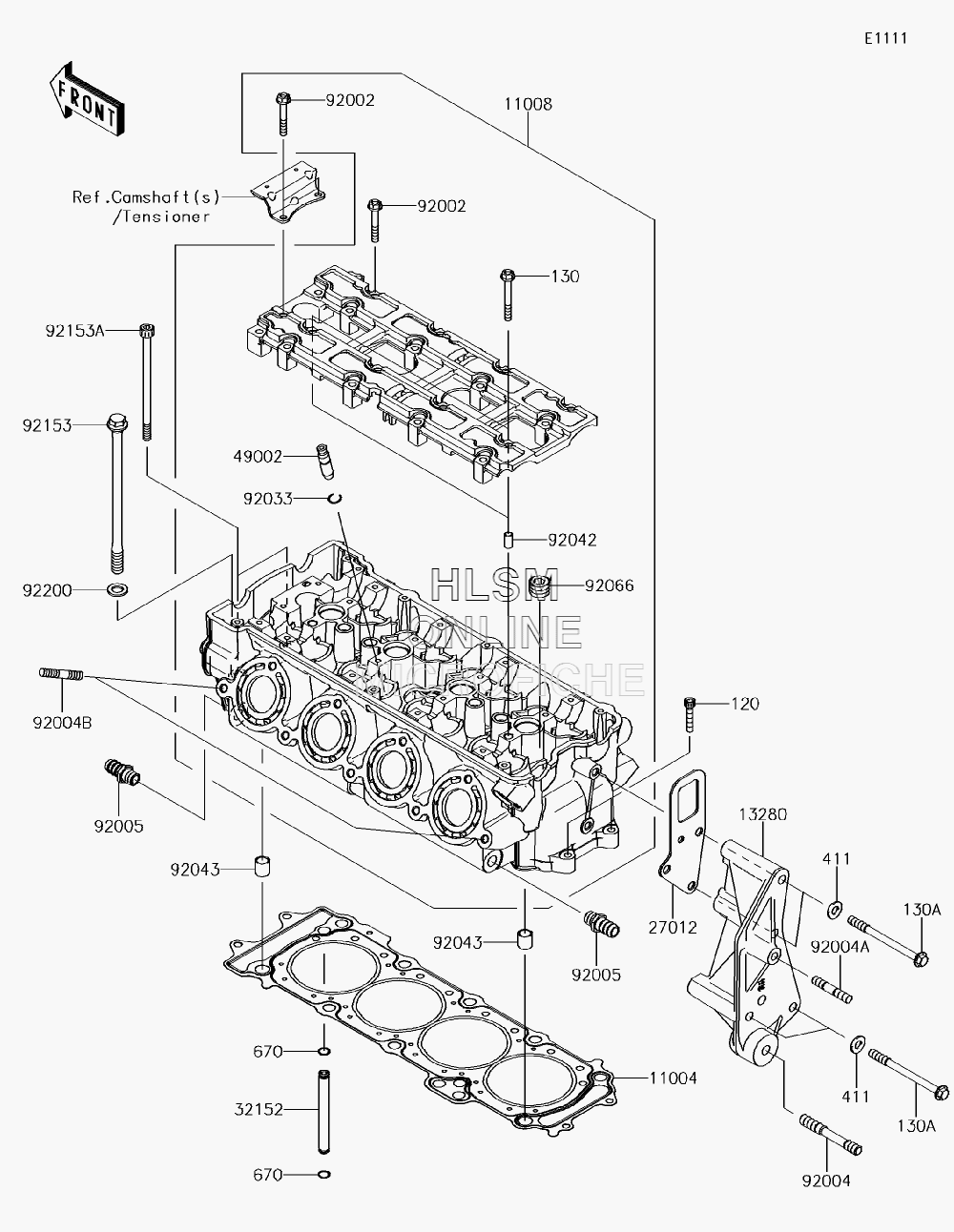

CYLINDER HEAD для Kawasaki ULTRA 310LX [JT1500MHF] - 2017 года выпуска
-
№АртикулНазвание
-
1100411004-0744 GASKET-HEADGASKET-HEAD
-
1100811008-3710 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
120120CD0630 BOLT-SOCKET, 6X30BOLT-SOCKET, 6X30
-
130130CD0650 BOLT-FLANGED, 6X50BOLT-FLANGED, 6X50
-
130A130CD0895 BOLT-FLANGED, 8X95BOLT-FLANGED, 8X95
-
1328013280-3763 HOLDER, BELT TENSIONERHOLDER, BELT TENSIONER
-
2701227012-3863 HOOK, ENGINE, REARHOOK, ENGINE, REAR
-
3215232152-1544 PIPE, OILPIPE, OIL
-
411411S0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
4900249002-1140 GUIDE-VALVEGUIDE-VALVE
-
670670D1507 O RING, 7MMO RING, 7MM
-
9200292002-1756 BOLT, 6X40BOLT, 6X40
-
9200492004-0023 STUD, 10X55STUD, 10X55
-
92004A92004-1253 STUD, 8X33STUD, 8X33
-
92004B92004-3743 STUD, 8X30STUD, 8X30
-
9200592005-3714 FITTINGFITTING
-
9203392033-1247 RING-SNAPRING-SNAP
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1593 PIN, 14X14PIN, 14X14
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
9215392153-3730 BOLT, FLANGED, 11X174BOLT, FLANGED, 11X174
-
92153A92153-3731 BOLT, SOCKET, 7X126BOLT, SOCKET, 7X126
-
9220092200-0940 WASHER, 11.2X18.2X1.8WASHER, 11.2X18.2X1.8
