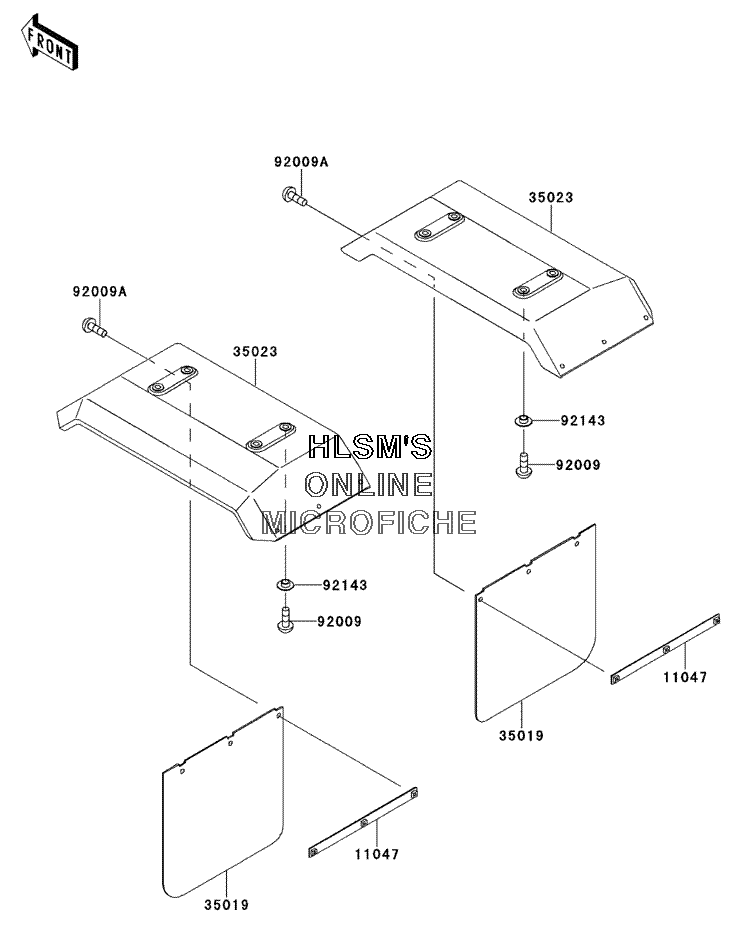

FENDER - REAR (OPTIONAL) для Kawasaki MULE 2510 4X4 (KAF620-A6) - 2000 года выпуска
-
№АртикулНазвание
-
1104711047-1172 BRACKET, REAR FLAPBRACKET, REAR FLAP
-
3501935019-1244 FLAP, REAR FENDERFLAP, REAR FENDER
-
3502335023-1298 FENDER-REARFENDER-REAR
-
9200992009-1166 SCREWSCREW
-
92009A92009-1288 SCREW, 6X14SCREW, 6X14
-
9214392143-1087 COLLARCOLLAR
