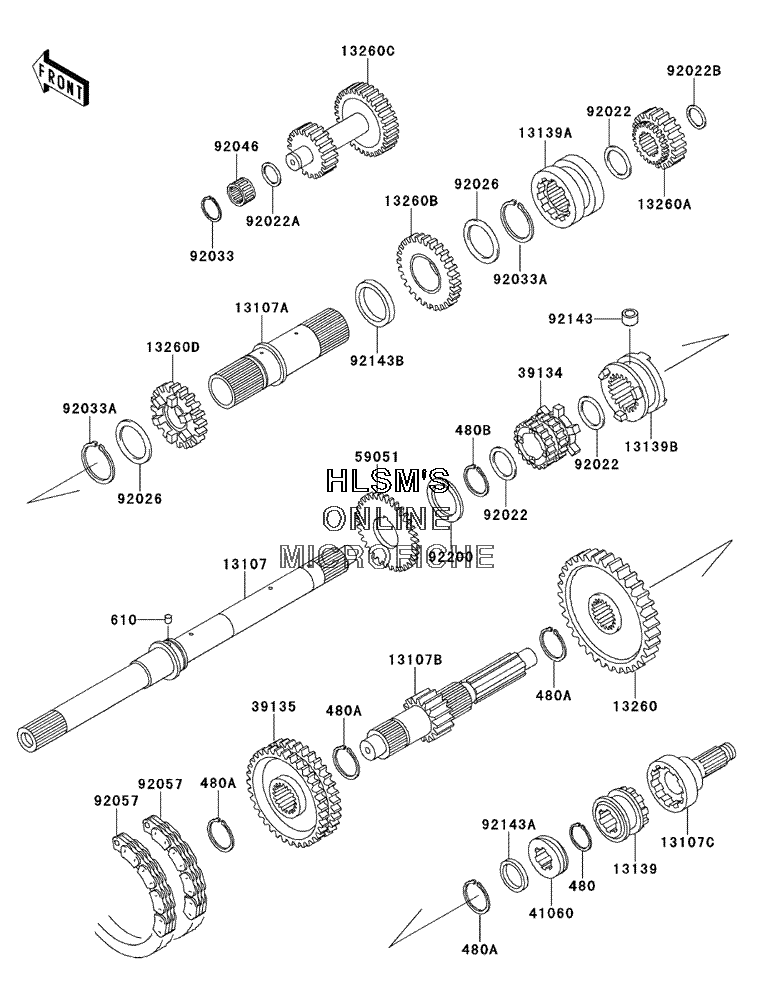

TRANSMISSION для Kawasaki MULE 2510 4X4 (KAF620-A6) - 2000 года выпуска
-
№АртикулНазвание
-
480480J2500 CIRCLIP-TYPE-C, 25MMCIRCLIP-TYPE-C, 25MM
-
480A480J3000 CIRCLIP-TYPE-C, 30MMCIRCLIP-TYPE-C, 30MM
-
480B480J3200 CIRCLIP-TYPE-C, 32MMCIRCLIP-TYPE-C, 32MM
-
610610A0505 ROLLERROLLER
-
1310713107-1308 SHAFT, INPUTSHAFT, INPUT
-
13107A13107-1309 SHAFT, INPUT OUTERSHAFT, INPUT OUTER
-
13107B13107-1310 SHAFT, OUTPUT (15 TEETH)SHAFT, OUTPUT (15 TEETH)
-
13107C13107-1313 SHAFT, 2WD/4WDSHAFT, 2WD/4WD
-
1313913139-1068 SHIFTER, 2WD/4WDSHIFTER, 2WD/4WD
-
13139A13139-1069 SHIFTER, SPEED, HI/LOWSHIFTER, SPEED, HI/LOW
-
13139B13139-1072 SHIFTER, FRONT/REARSHIFTER, FRONT/REAR
-
1326013260-1288 GEAR, OUTPUT REVERSE (51 TEETH)GEAR, OUTPUT REVERSE (51 TEETH)
-
13260A13260-1289 GEAR, INPUT REDUCTION (20 TEETH)GEAR, INPUT REDUCTION (20 TEETH)
-
13260B13260-1290 GEAR, INPUT REDUCTION (28 TEETH)GEAR, INPUT REDUCTION (28 TEETH)
-
13260C13260-1291 GEAR, REDUCTION (17/25 TEETH)GEAR, REDUCTION (17/25 TEETH)
-
13260D13260-1462 GEAR, INPUT (28 TEETH)GEAR, INPUT (28 TEETH)
-
3913439134-1055 SPROCKET-DRIVE (20 TEETH)SPROCKET-DRIVE (20 TEETH)
-
3913539135-1055 SPROCKET-DRIVEN (41 TEETH)SPROCKET-DRIVEN (41 TEETH)
-
4106041060-1147 GEAR-METER SCREWGEAR-METER SCREW
-
5905159051-2097 GEAR-SPURGEAR-SPUR
-
9202292022-1109 WASHER, 25.3X33X1WASHER, 25.3X33X1
-
92022A92022-255 WASHER, 17.3X28X1WASHER, 17.3X28X1
-
92022B92022-270 WASHER, 17.3X30X1.4WASHER, 17.3X30X1.4
-
9202692026-1375 SPACER, 35.3X44X0.5SPACER, 35.3X44X0.5
-
9203392033-032 RING-SNAPRING-SNAP
-
92033A92033-1269 RING-SNAPRING-SNAP
-
9204692046-1184 BEARING-NEEDLE, K17X23X13.8BEARING-NEEDLE, K17X23X13.8
-
9205792057-1364 CHAIN, REVERSE, 81RH2520, 54LCHAIN, REVERSE, 81RH2520, 54L
-
9214392143-1497 COLLAR, 8X14X10.5COLLAR, 8X14X10.5
-
92143A92143-1597 COLLAR, 25X32X4.5COLLAR, 25X32X4.5
-
92143B92143-1599 COLLARCOLLAR
-
9220092200-1155 WASHER, GOVERNOR GEARWASHER, GOVERNOR GEAR
Все узлы модели:
- AIR CLEANER
- AIR CLEANER W/ BELT CONVERTER
- BEVEL GEAR CASE
- BRAKE - FRONT W/ HUB
- BRAKE - MASTER CYLINDER
- BRAKE - REAR W/ HUBS
- BRAKE PEDAL W/ THROTTLE LEVER
- BRAKE PIPING
- CABLES
- CARBURETOR
- CARRIER W/ SCREEN (OPTIONAL)
- CHASSIS ELECTRICAL EQUIPMENT
- CONVERTER COVER W/DRIVE BELT
- CRANKCASE
- CRANKSHAFT W/ PISTON(S)
- CYLINDER HEAD
- DECALS (GREEN)
- DECALS (RED)
- DIFFERENTIAL
- DRIVE CONVERTER
- DRIVE SHAFT (FRONT)
- DRIVE SHAFT (PROPELLER)
- DRIVE SHAFT (REAR)
- DRIVEN CONVERTER
- FENDER - FRONT
- FENDER - REAR (OPTIONAL)
- FRAME
- FRAME FITTINGS (COVER)
- FRAME FITTINGS (LEVER(S))
- FUEL PUMP
- FUEL TANK
- GEAR BOX
- GEAR CHANGE MECHANISM
- GENERATOR W/ IGNITION SYSTEM
- GENERATOR W/ METER (OPTIONAL)
- GUARD(S) / CAB FRAME
- HEADLIGHT(S) W/ IGNITION SWITCH
- LABELS
- MANUALS
- MUFFLER(S)
- OIL PAN W/ OIL FILTER
- RADIATOR
- SEAT
- STARTER MOTOR
- STEERING WHEEL
- SUSPENSION - FRONT
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER(S)
- TAILLIGHT(S) (OPTIONAL)
- THROTTLE CONTROL
- • TRANSMISSION
- VALVE(S) W/ CAMSHAFT(S)
- WATER PUMP
- WHEELS - TIRES
