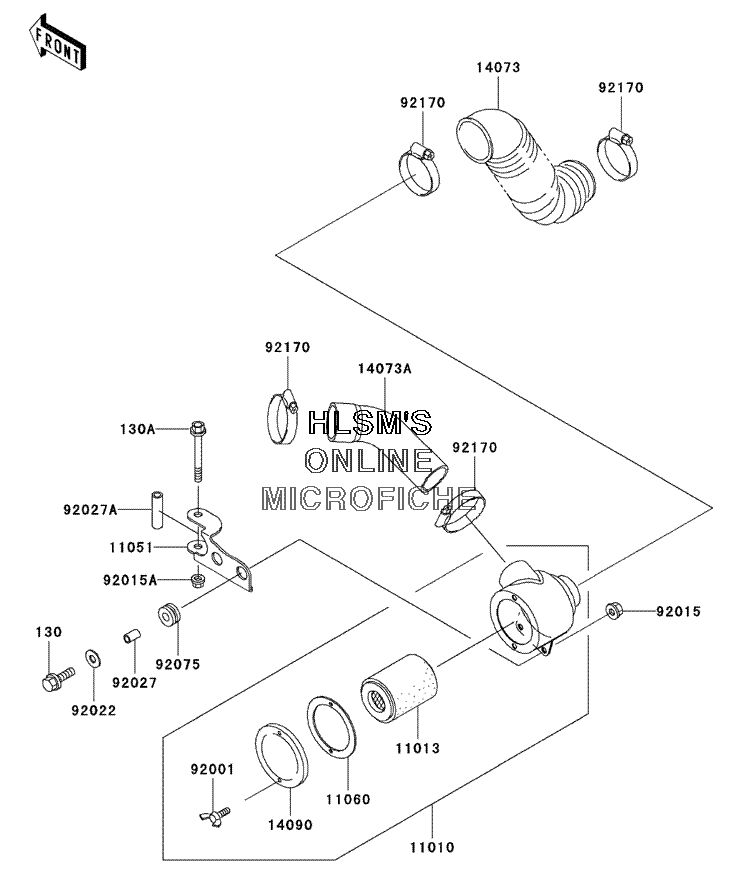

AIR CLEANER W/ BELT CONVERTER для Kawasaki MULE 2510 Diesel (KAF950-A1) - 2000 года выпуска
-
№АртикулНазвание
-
130130C0830 BOLT-FLANGED, 8X30 (BLACK)BOLT-FLANGED, 8X30 (BLACK)
-
130A130J1075 BOLT-FLANGEDBOLT-FLANGED
-
1101011010-1735 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101311013-1263 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1105111051-1337 BRACKETBRACKET
-
1106011060-1975 GASKET, AIR FILTER CASEGASKET, AIR FILTER CASE
-
1407314073-1492 DUCT, BELT CONVERTERDUCT, BELT CONVERTER
-
14073A14073-1756 DUCTDUCT
-
1409014090-1766 COVER, AIR FILTERCOVER, AIR FILTER
-
9200192001-1703 BOLT, WING, 6X15BOLT, WING, 6X15
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
92015A92015-1522 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9202292022-1632 WASHER, 9X28X2.3WASHER, 9X28X2.3
-
9202792027-1081 COLLAR, 8.8X12X15.5COLLAR, 8.8X12X15.5
-
92027A92027-1738 COLLAR, 10.5X16X50COLLAR, 10.5X16X50
-
9207592075-1736 DAMPERDAMPER
-
9217092170-1338 CLAMPCLAMP
