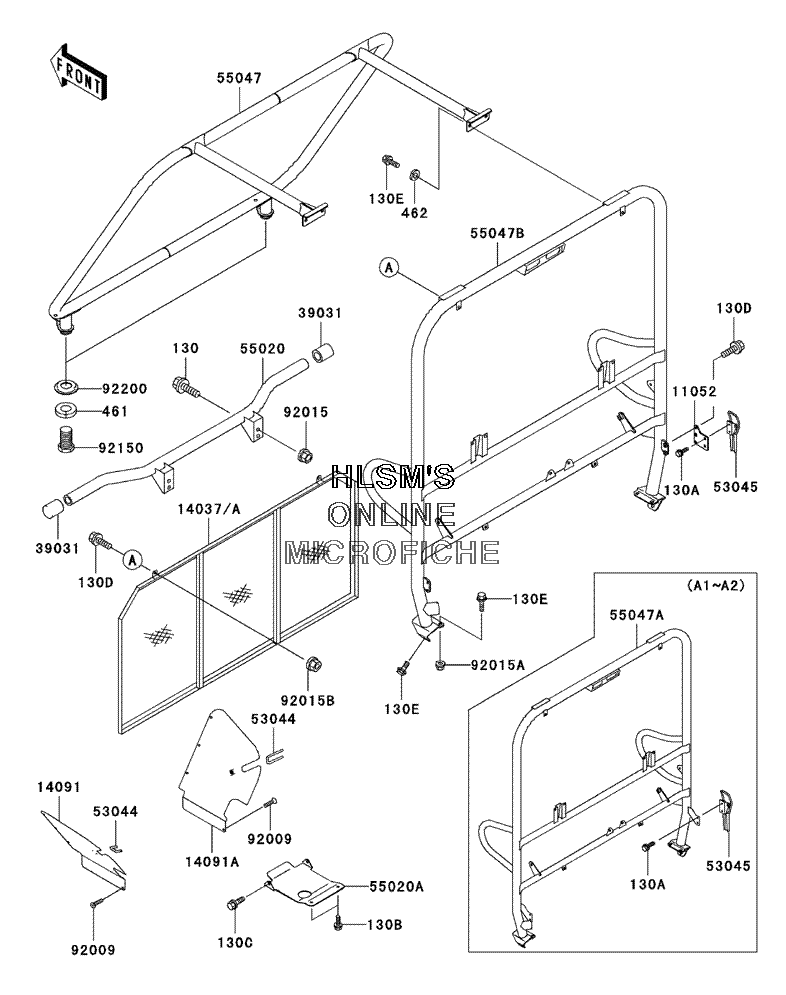

GUARD(S) / CAB FRAME для Kawasaki MULE 2510 Diesel (KAF950-A1) - 2000 года выпуска
-
№АртикулНазвание
-
130130G1225 BOLT-FLANGEDBOLT-FLANGED
-
130A130J0614 BOLT-FLANGED, 6X14 (BLACK)BOLT-FLANGED, 6X14 (BLACK)
-
130B130J0616 BOLT-FLANGED, 6X16 (BLACK)BOLT-FLANGED, 6X16 (BLACK)
-
130C130J0814 BOLT-FLANGED, 8X14BOLT-FLANGED, 8X14
-
130D130J0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130E130J1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
461461F2000 WASHER-SPRING, 20MMWASHER-SPRING, 20MM
-
462462K1000 WASHER-SPRING, 10MMWASHER-SPRING, 10MM
-
1403714037-1265 SCREEN, REAR GUARDSCREEN, REAR GUARD
-
1409114091-1142 COVER, FRONT (LEFT)COVER, FRONT (LEFT)
-
14091A14091-1143 COVER, FRONT (RIGHT)COVER, FRONT (RIGHT)
-
3903139031-1059 CAP-END, BUMPER PIPECAP-END, BUMPER PIPE
-
5304453044-1137 TRIMTRIM
-
5304553045-1063 HOOK-ASSYHOOK-ASSY
-
5502055020-1471 GUARD, FRONT BUMPERGUARD, FRONT BUMPER
-
55020A55020-1692 GUARD, GEAR CASEGUARD, GEAR CASE
-
5504755047-1004 BAR-COMP, CAB FRAME, FRONTBAR-COMP, CAB FRAME, FRONT
-
55047A55047-1011 BAR-COMP, CAB FRAME, REARBAR-COMP, CAB FRAME, REAR
-
9200992009-1166 SCREWSCREW
-
9201592015-1156 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
92015A92015-1366 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015B92015-1696 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
-
9215092150-1325 BOLT, 20X35BOLT, 20X35
-
9220092200-1032 WASHERWASHER
