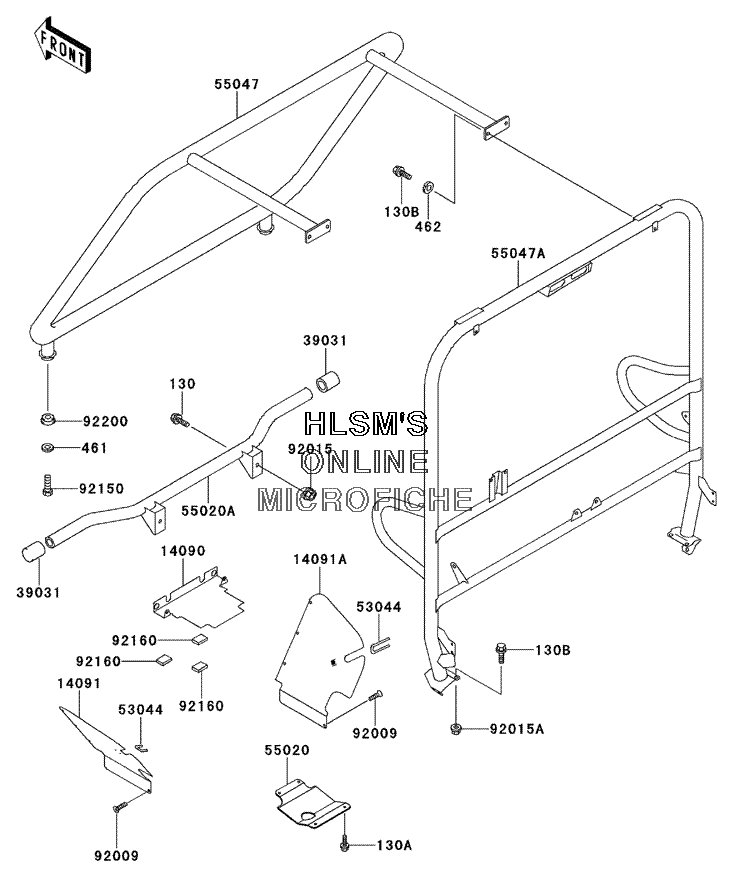

GUARD(S) / CAB FRAME для Kawasaki MULE 2520 Turf (KAF620-B6) - 2000 года выпуска
-
№АртикулНазвание
-
130130G1225 BOLT-FLANGEDBOLT-FLANGED
-
130A130J0616 BOLT-FLANGED, 6X16 (BLACK)BOLT-FLANGED, 6X16 (BLACK)
-
130B130J1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
461461F2000 WASHER-SPRING, 20MMWASHER-SPRING, 20MM
-
462462K1000 WASHER-SPRING, 10MMWASHER-SPRING, 10MM
-
1409014090-1325 COVER, FRONT (LOWER)COVER, FRONT (LOWER)
-
1409114091-1142 COVER, FRONT (LEFT)COVER, FRONT (LEFT)
-
14091A14091-1143 COVER, FRONT (RIGHT)COVER, FRONT (RIGHT)
-
3903139031-1059 CAP-END, BUMPER PIPECAP-END, BUMPER PIPE
-
5304453044-1137 TRIMTRIM
-
5502055020-1449 GUARD, GEAR CASEGUARD, GEAR CASE
-
55020A55020-1471 GUARD, FRONT BUMPERGUARD, FRONT BUMPER
-
5504755047-1004 BAR-COMP, CAB FRAME, FRONTBAR-COMP, CAB FRAME, FRONT
-
55047A55047-1008 BAR-COMP, CAB FRAME, REARBAR-COMP, CAB FRAME, REAR
-
9200992009-1166 SCREWSCREW
-
9201592015-1156 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
92015A92015-1366 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9215092150-1325 BOLT, 20X35BOLT, 20X35
-
9216092160-1102 DAMPERDAMPER
-
9220092200-1032 WASHERWASHER
