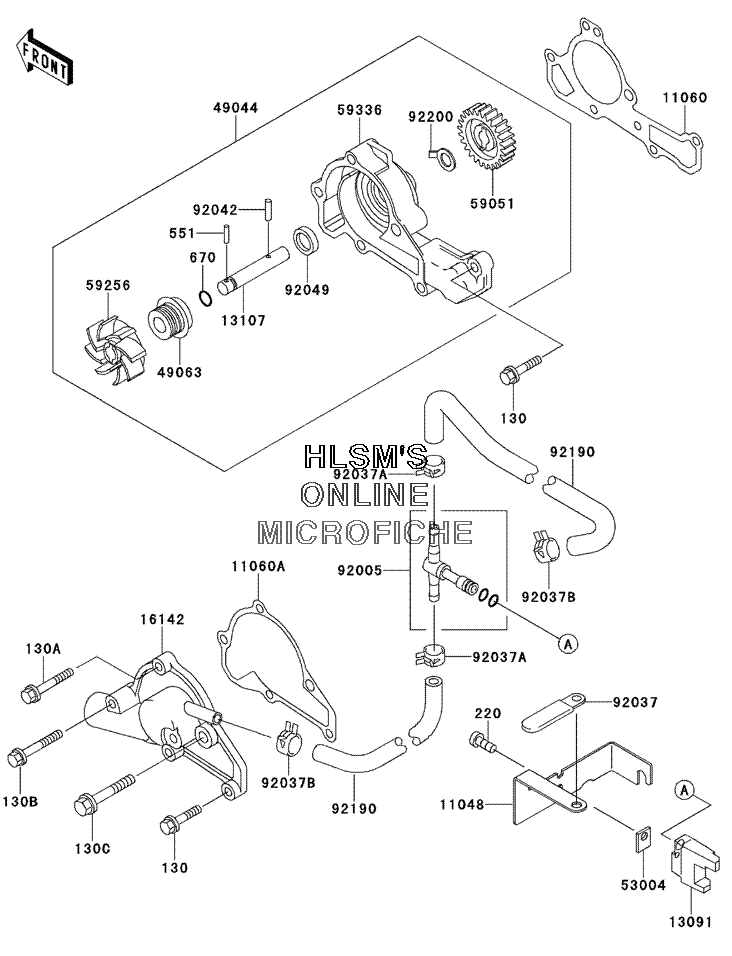

WATER PUMP для Kawasaki MULE 2520 Turf (KAF620-B6) - 2000 года выпуска
-
№АртикулНазвание
-
130130T0645 BOLT-FLANGEDBOLT-FLANGED
-
130A130T0665 BOLT-FLANGEDBOLT-FLANGED
-
130B130T0675 BOLT-FLANGEDBOLT-FLANGED
-
130C130T0870 BOLT-FLANGEDBOLT-FLANGED
-
220220C0410 SCREW-PAN-CROSSCREW-PAN-CROS
-
551551A0314 PIN-DOWEL, 3X14PIN-DOWEL, 3X14
-
670670B1507 O RING, 7MMO RING, 7MM
-
1104811048-2022 BRACKETBRACKET
-
1106011060-2450 GASKET, PUMP CASEGASKET, PUMP CASE
-
11060A11060-2451 GASKET, PUMP COVERGASKET, PUMP COVER
-
1309113091-2133 HOLDERHOLDER
-
1310713107-2097 SHAFTSHAFT
-
1614216142-2069 COVER-PUMPCOVER-PUMP
-
4904449044-2058 PUMP-WATERPUMP-WATER
-
4906349063-2056 SEAL-MECHANICALSEAL-MECHANICAL
-
5300453004-2056 MATMAT
-
5905159051-2113 GEAR-SPURGEAR-SPUR
-
5925659256-2057 IMPELLERIMPELLER
-
5933659336-2052 CASE-PUMPCASE-PUMP
-
9200592005-2057 FITTING, "T"FITTING, "T"
-
9203792037-1539 CLAMP, L=45CLAMP, L=45
-
92037A92037-2001 CLAMP, PULSE TUBECLAMP, PULSE TUBE
-
92037B92037-2065 CLAMPCLAMP
-
9204292042-014 PIN, DOWEL, 4X15.8PIN, DOWEL, 4X15.8
-
9204992049-2111 SEAL-OILSEAL-OIL
-
9219092190-2156 TUBETUBE
-
9220092200-2044 WASHERWASHER
