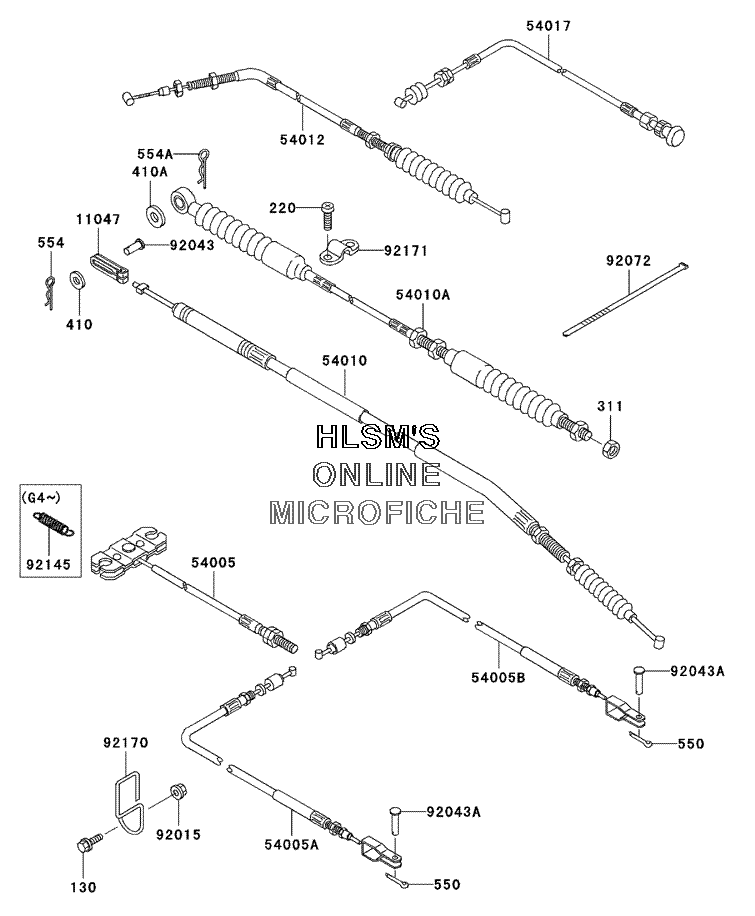

CABLES для Kawasaki MULE 3000 (KAF620-G1) - 2001 года выпуска
-
№АртикулНазвание
-
130130D0620 BOLT-FLANGEDBOLT-FLANGED
-
220220D0514 SCREW-PAN-CROS, 5X14SCREW-PAN-CROS, 5X14
-
311311B0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
410410B0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
410A410E0800 W-PLAIN-S, 8MMW-PLAIN-S, 8MM
-
550550D2022 PIN-COTTER, 2.0X22PIN-COTTER, 2.0X22
-
554554A0600 PIN-SNAPPIN-SNAP
-
554A554A0800 PIN-SNAP, 8MMPIN-SNAP, 8MM
-
1104711047-1043 BRACKET, DIFF LOCKBRACKET, DIFF LOCK
-
5400554005-1198 CABLE-BRAKE, PARKING, FRONTCABLE-BRAKE, PARKING, FRONT
-
54005A54005-1209 CABLE-BRAKE, PARKING, REAR (LEFT)CABLE-BRAKE, PARKING, REAR (LEFT)
-
54005B54005-1210 CABLE-BRAKE, PARKING, REAR (RIGHT)CABLE-BRAKE, PARKING, REAR (RIGHT)
-
5401054010-1120 CABLE, DIFF LOCKCABLE, DIFF LOCK
-
54010A54010-1121 CABLE, SHIFT CONTROLCABLE, SHIFT CONTROL
-
5401254012-1637 CABLE-THROTTLECABLE-THROTTLE
-
5401754017-1208 CABLE-STARTERCABLE-STARTER
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9204392043-092 PIN, 6X11PIN, 6X11
-
92043A92043-1039 PINPIN
-
9207292072-1239 BAND, L=188BAND, L=188
-
9217092170-1372 CLAMP, CABLECLAMP, CABLE
-
9217192171-1203 CLAMPCLAMP
