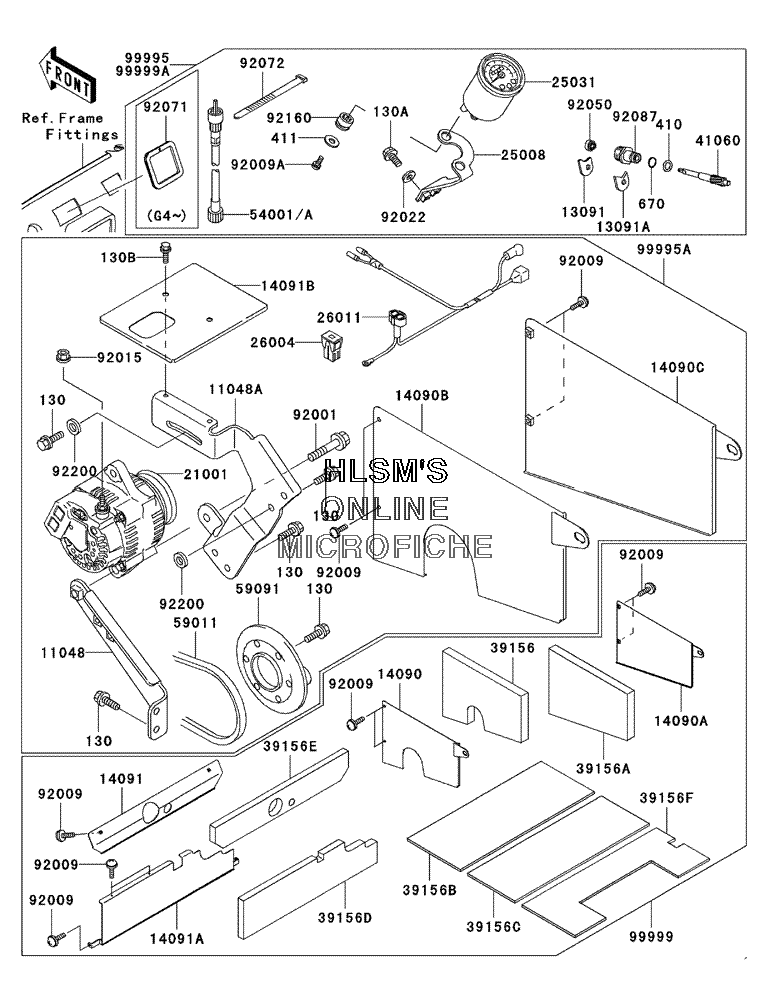

GENERATOR W/ METER (OPTIONAL) для Kawasaki MULE 3000 (KAF620-G1) - 2001 года выпуска
-
№АртикулНазвание
-
1104811048-1243 BRACKET, ENGINE, LOWERBRACKET, ENGINE, LOWER
-
11048A11048-1244 BRACKET, GENERATORBRACKET, GENERATOR
-
1309113091-1008 HOLDER, T=2.3HOLDER, T=2.3
-
13091A13091-1009 HOLDER, T=3.2HOLDER, T=3.2
-
1409014090-1260 COVER, ENCLOSURE (LEFT)COVER, ENCLOSURE (LEFT)
-
14090A14090-1261 COVER, ENCLOSURE (RIGHT)COVER, ENCLOSURE (RIGHT)
-
14090B14090-1354 COVER, ENCLOSURE (LEFT)COVER, ENCLOSURE (LEFT)
-
14090C14090-1355 COVER, ENCLOSURE (RIGHT)COVER, ENCLOSURE (RIGHT)
-
1409114091-1237 COVER, SEAT BACKCOVER, SEAT BACK
-
14091A14091-1359 COVER, SEAT UNDERCOVER, SEAT UNDER
-
14091B14091-1377 COVER, GENERATORCOVER, GENERATOR
-
2100121001-1129 GENERATORGENERATOR
-
2500825008-1228 BRACKET-METERBRACKET-METER
-
2503125031-1190 METER-ASSY., MPHMETER-ASSY., MPH
-
2600426004-1096 FUSE-ASSY., 50AFUSE-ASSY., 50A
-
2601126011-1758 WIRE-LEAD, GENERATORWIRE-LEAD, GENERATOR
-
3915639156-1301 PAD, ENCLOSURE COVER (LEFT)PAD, ENCLOSURE COVER (LEFT)
-
39156A39156-1302 PAD, ENCLOSURE COVER (RIGHT)PAD, ENCLOSURE COVER (RIGHT)
-
39156B39156-1304 PAD, CARRIER, FRONTPAD, CARRIER, FRONT
-
39156C39156-1305 PAD, CARRIER, CENTERPAD, CARRIER, CENTER
-
39156D39156-1678 PAD, SEAT UNDERPAD, SEAT UNDER
-
39156E39156-1679 PAD, SEAT BACKPAD, SEAT BACK
-
39156F39156-1680 PAD, CARRIER, REARPAD, CARRIER, REAR
-
4106041060-1148 GEAR-METER SCREWGEAR-METER SCREW
-
54001A54001-1248 CABLE-SPEEDOMETERCABLE-SPEEDOMETER
-
5901159011-2056 BELTBELT
-
5909159091-2053 PULLEYPULLEY
-
9200192001-1522 BOLT (BLACK), 10X47BOLT (BLACK), 10X47
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
92009A92009-3740 SCREW, 5X12SCREW, 5X12
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9205092050-075 SEAL-OILSEAL-OIL
-
9207292072-1293 BAND, L=140BAND, L=140
-
9208792087-010 BUSHING-METER GEARBUSHING-METER GEAR
-
9216092160-1461 DAMPERDAMPER
-
9220092200-1055 WASHER, 8.5X20X2.3WASHER, 8.5X20X2.3
-
130130H0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130A130J0614 BOLT-FLANGED, 6X14 (BLACK)BOLT-FLANGED, 6X14 (BLACK)
-
130B130L0608 BOLT-FLANGEDBOLT-FLANGED
-
410410B0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
411411B0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
670670D1510 O RING, 10MMO RING, 10MM
-
9999599995-1480 KIT., SPEEDOMETERKIT., SPEEDOMETER
-
99995A99995-1481 KIT., ALTERNATORKIT., ALTERNATOR
-
9999999999-1071 MULE 3000 SOUND PANELMULE 3000 SOUND PANEL
