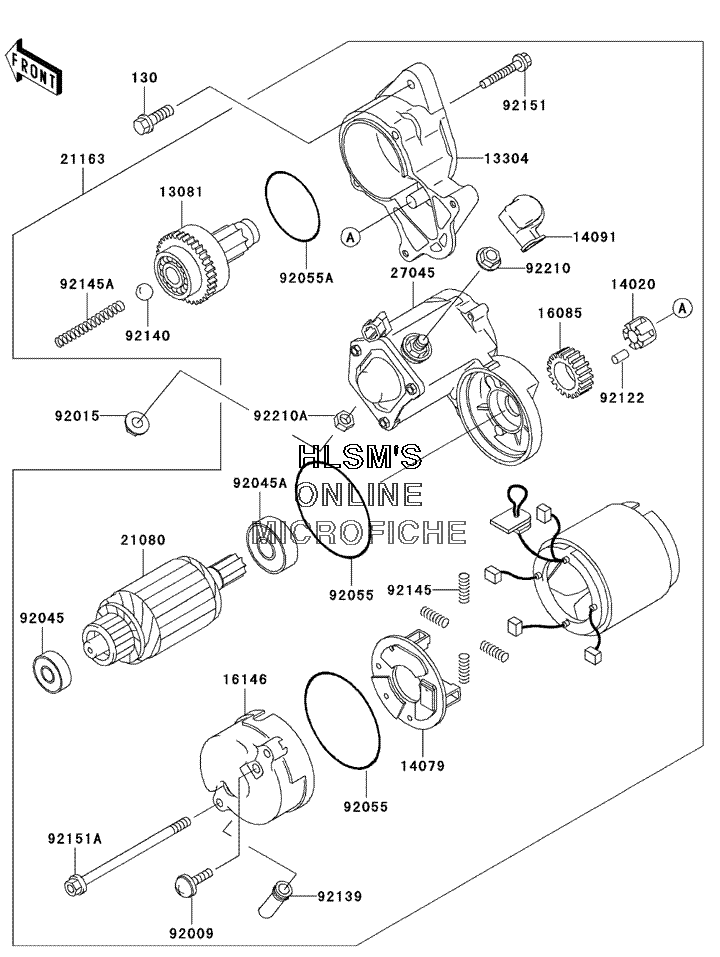

STARTER MOTOR для Kawasaki MULE 3000 (KAF620-G2) - 2002 года выпуска
-
№АртикулНазвание
-
130130P0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
1308113081-2231 CLUTCH-ASSYCLUTCH-ASSY
-
1330413304-2201 HOUSING-ASSYHOUSING-ASSY
-
1402014020-2112 RETAINERRETAINER
-
1407914079-2064 HOLDER-ASSYHOLDER-ASSY
-
1409114091-2080 COVERCOVER
-
1608516085-2055 GEARGEAR
-
1614616146-2228 COVER-ASSYCOVER-ASSY
-
2108021080-2070 ARMATUREARMATURE
-
2116321163-2124 STARTER-ELECTRICSTARTER-ELECTRIC
-
2704527045-2018 SWITCH-ASSYSWITCH-ASSY
-
9200992009-2455 SCREWSCREW
-
9201592015-1143 NUT, 8MMNUT, 8MM
-
9204592045-2257 BEARING-BALLBEARING-BALL
-
92045A92045-2258 BEARING-BALLBEARING-BALL
-
9205592055-2199 RING-ORING-O
-
92055A92055-2200 RING-ORING-O
-
9212292122-2057 ROLLERROLLER
-
9213992139-2051 BUSHINGBUSHING
-
9214092140-2061 BALLBALL
-
9214592145-2096 SPRINGSPRING
-
92145A92145-2097 SPRINGSPRING
-
9215192151-2167 BOLTBOLT
-
92151A92151-2168 BOLTBOLT
-
9221092210-2084 NUTNUT
-
92210A92210-2085 NUTNUT
