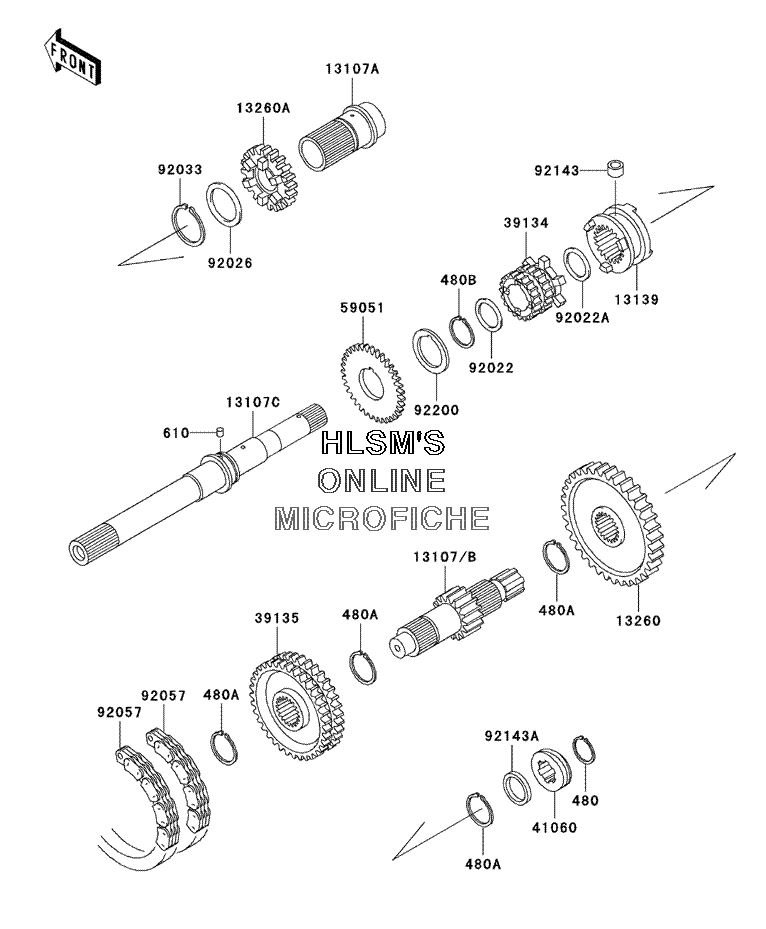

TRANSMISSION для Kawasaki MULE 3000 (KAF620-G2) - 2002 года выпуска
-
№АртикулНазвание
-
480480J2500 CIRCLIP-TYPE-C, 25MMCIRCLIP-TYPE-C, 25MM
-
480A480J3000 CIRCLIP-TYPE-C, 30MMCIRCLIP-TYPE-C, 30MM
-
480B480J3200 CIRCLIP-TYPE-C, 32MMCIRCLIP-TYPE-C, 32MM
-
610610A0505 ROLLERROLLER
-
13107A13107-1315 SHAFT, INPUT OUTERSHAFT, INPUT OUTER
-
13107B13107-1316 SHAFT, OUTPUT (15 TEETH)SHAFT, OUTPUT (15 TEETH)
-
13107C13107-1471 SHAFT, INPUTSHAFT, INPUT
-
1313913139-1072 SHIFTER, FRONT/REARSHIFTER, FRONT/REAR
-
1326013260-1288 GEAR, OUTPUT REVERSE (51 TEETH)GEAR, OUTPUT REVERSE (51 TEETH)
-
13260A13260-1462 GEAR, INPUT (28 TEETH)GEAR, INPUT (28 TEETH)
-
3913439134-1055 SPROCKET-DRIVE (20 TEETH)SPROCKET-DRIVE (20 TEETH)
-
3913539135-1055 SPROCKET-DRIVEN (41 TEETH)SPROCKET-DRIVEN (41 TEETH)
-
4106041060-1147 GEAR-METER SCREWGEAR-METER SCREW
-
5905159051-2097 GEAR-SPURGEAR-SPUR
-
9202292022-1109 WASHER, 25.3X33X1WASHER, 25.3X33X1
-
92022A92022-1573 WASHER, 22.3X33X1.0WASHER, 22.3X33X1.0
-
9202692026-1375 SPACER, 35.3X44X0.5SPACER, 35.3X44X0.5
-
9203392033-1269 RING-SNAPRING-SNAP
-
9205792057-1364 CHAIN, REVERSE, 81RH2520, 54LCHAIN, REVERSE, 81RH2520, 54L
-
9214392143-1497 COLLAR, 8X14X10.5COLLAR, 8X14X10.5
-
92143A92143-1597 COLLAR, 25X32X4.5COLLAR, 25X32X4.5
-
9220092200-1155 WASHER, GOVERNOR GEARWASHER, GOVERNOR GEAR
