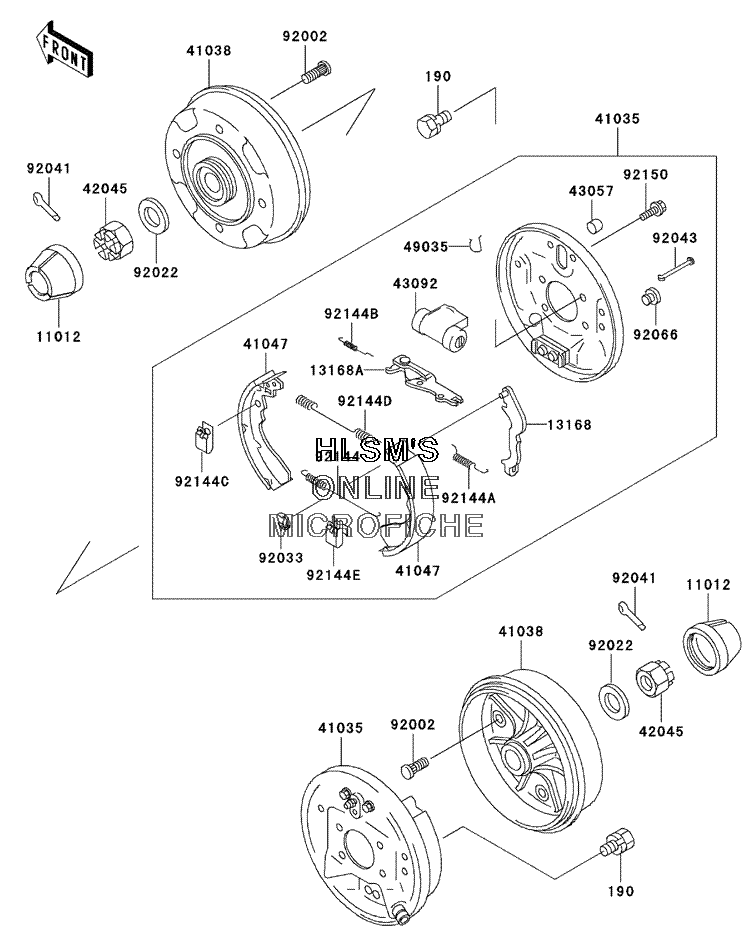

BRAKE - REAR W/ HUBS для Kawasaki MULE 550 (KAF300-C6) - 2002 года выпуска
-
№АртикулНазвание
-
190190H1016 BOLT-UPSET-WS, 10X16BOLT-UPSET-WS, 10X16
-
1101211012-1969 CAP, WHEELCAP, WHEEL
-
1316813168-1481 LEVERLEVER
-
13168A13168-1482 LEVERLEVER
-
4103541035-1283 PANEL-ASSY-BRAKE, REARPANEL-ASSY-BRAKE, REAR
-
4103841038-1239 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
4104741047-1052 SHOE-ASSY-BRAKE, REARSHOE-ASSY-BRAKE, REAR
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
4305743057-1054 CAP-BREATHERCAP-BREATHER
-
4309243092-1058 CYLINDERCYLINDER
-
4903549035-1058 PIN-SPRINGPIN-SPRING
-
9200292002-1388 BOLT, 10X30BOLT, 10X30
-
9202292022-1658 WASHER, 18.3X34X4.5WASHER, 18.3X34X4.5
-
9203392033-1279 RING-SNAPRING-SNAP
-
9204192041-1053 COTTER, 4.0X35COTTER, 4.0X35
-
9204392043-1460 PIN, SHOE HOLDPIN, SHOE HOLD
-
9206692066-1365 PLUGPLUG
-
9214492144-1613 SPRING, RETURN, LOWERSPRING, RETURN, LOWER
-
92144A92144-1614 SPRINGSPRING
-
92144B92144-1615 SPRINGSPRING
-
92144C92144-1616 SPRING, SHOE HOLDSPRING, SHOE HOLD
-
92144D92144-1851 SPRING, RETURN, UPPERSPRING, RETURN, UPPER
-
92144E92144-1858 SPRING, SHOE HOLDSPRING, SHOE HOLD
-
9215092150-1664 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
