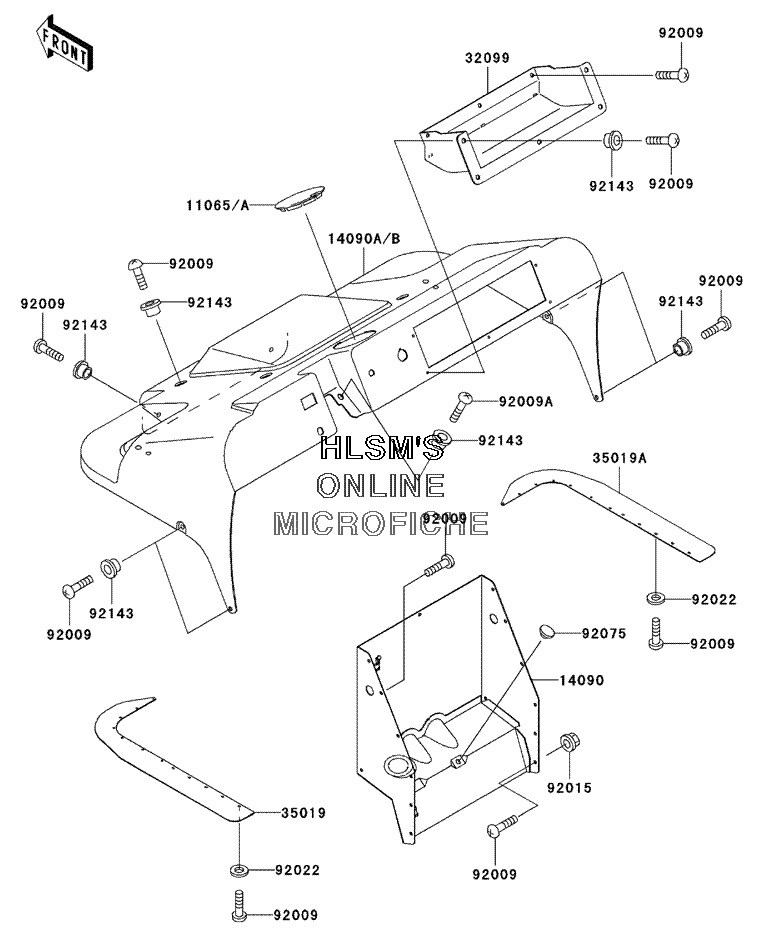

FENDER - FRONT для Kawasaki MULE 550 (KAF300-C6) - 2002 года выпуска
-
№АртикулНазвание
-
1106511065-1053-260 CAP (A.RED)CAP (A.RED)
-
11065A11065-1053-6A CAP (LEFT) (H.GREEN)CAP (LEFT) (H.GREEN)
-
1409014090-1742 COVER, FRONT, CENTERCOVER, FRONT, CENTER
-
14090A14090-1743-260 COVER, FRONT, UPPER (A.RED)COVER, FRONT, UPPER (A.RED)
-
14090B14090-1743-6A COVER, FRONT, UPPER (H.GREEN)COVER, FRONT, UPPER (H.GREEN)
-
3209932099-1174 CASE, STORAGECASE, STORAGE
-
3501935019-1343 FLAP, FRONT, SIDE (LEFT)FLAP, FRONT, SIDE (LEFT)
-
35019A35019-1346 FLAP, FRONT, SIDE (RIGHT)FLAP, FRONT, SIDE (RIGHT)
-
9200992009-1166 SCREWSCREW
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1346 WASHER, 6.5X20X1.6 (BLACK)WASHER, 6.5X20X1.6 (BLACK)
-
9207592075-281 DAMPERDAMPER
-
9214392143-1087 COLLARCOLLAR
