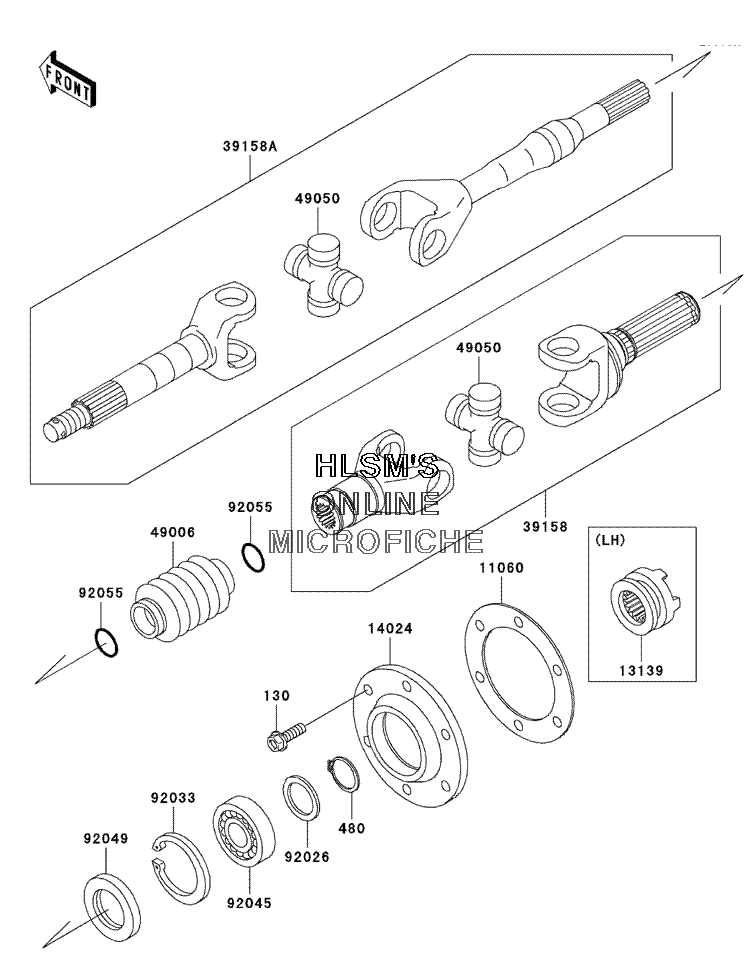

DRIVE SHAFT (REAR) для Kawasaki MULE 3000 (KAF620-G4) - 2004 года выпуска
-
№АртикулНазвание
-
130130H0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
480480J2800 CIRCLIP-TYPE-C, 28MMCIRCLIP-TYPE-C, 28MM
-
1106011060-1251 GASKET, DRIVESHAFT COVERGASKET, DRIVESHAFT COVER
-
1313913139-1078 SHIFTERSHIFTER
-
1402414024-1560 COVER, DRIVESHAFTCOVER, DRIVESHAFT
-
3915839158-1119 SHAFT-ASSY-DRIVE, INSIDESHAFT-ASSY-DRIVE, INSIDE
-
39158A39158-1120 SHAFT-ASSY-DRIVESHAFT-ASSY-DRIVE
-
4900649006-1257 BOOT, DRIVE SHAFTBOOT, DRIVE SHAFT
-
4905049050-1060 SPIDERSPIDER
-
9202692026-1489 SPACER, 28.1X38X2.6SPACER, 28.1X38X2.6
-
9203392033-1274 RING-SNAP, 55MMRING-SNAP, 55MM
-
9204592045-1208 BEARING-BALL, 6006BEARING-BALL, 6006
-
9204992049-1298 SEAL-OIL, TC35X55X8SEAL-OIL, TC35X55X8
-
9205592055-1451 RING-O, 19.5X3.0RING-O, 19.5X3.0
