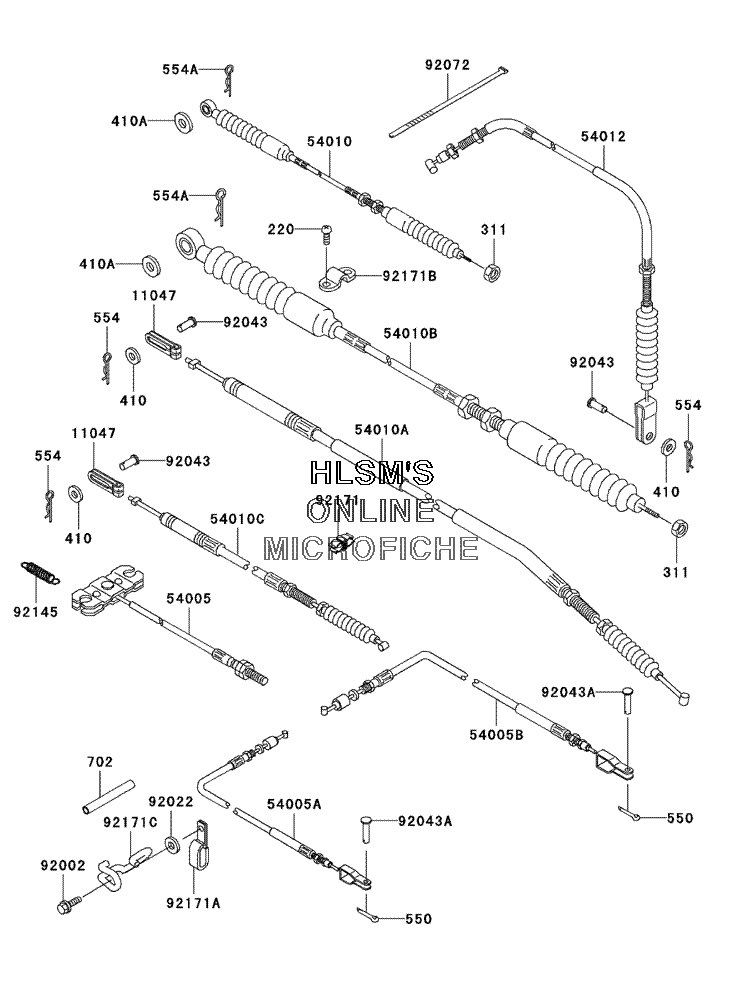

CABLES для Kawasaki MULE 3010 Diesel 4x4 (KAF950-B2) - 2004 года выпуска
-
№АртикулНазвание
-
220220D0514 SCREW-PAN-CROS, 5X14SCREW-PAN-CROS, 5X14
-
311311B0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
410410B0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
410A410E0800 W-PLAIN-S, 8MMW-PLAIN-S, 8MM
-
550550D2022 PIN-COTTER, 2.0X22PIN-COTTER, 2.0X22
-
554554A0600 PIN-SNAPPIN-SNAP
-
554A554A0800 PIN-SNAP, 8MMPIN-SNAP, 8MM
-
702702A0555 TUBE-RUBBER, 5X8X55TUBE-RUBBER, 5X8X55
-
1104711047-1043 BRACKET, DIFF LOCKBRACKET, DIFF LOCK
-
5400554005-1198 CABLE-BRAKE, PARKING, FRCABLE-BRAKE, PARKING, FR
-
54005A54005-1201 CABLE-BRAKE, PARKING, RR (LEFT)CABLE-BRAKE, PARKING, RR (LEFT)
-
54005B54005-1202 CABLE-BRAKE, PARKING, RR (RIGHT)CABLE-BRAKE, PARKING, RR (RIGHT)
-
5401054010-0006 CABLE, SHIFT CONTROLCABLE, SHIFT CONTROL
-
54010A54010-1120 CABLE, DIFF LOCKCABLE, DIFF LOCK
-
54010B54010-1124 CABLE, HI-LOWCABLE, HI-LOW
-
54010C54010-1126 CABLE, 2-4WDCABLE, 2-4WD
-
5401254012-1613 CABLE-THROTTLECABLE-THROTTLE
-
9200292002-1589 BOLT, 8X14BOLT, 8X14
-
9202292022-1317 WASHER, 8.5X20X1.6 (BLACK)WASHER, 8.5X20X1.6 (BLACK)
-
9204392043-092 PIN, 6X11PIN, 6X11
-
92043A92043-1039 PINPIN
-
9207292072-1239 BAND, L=188BAND, L=188
-
9214592145-7506 SPRINGSPRING
-
9217192171-0129 CLAMP, HIGHTENSION CORDCLAMP, HIGHTENSION CORD
-
92171A92171-0176 CLAMP, CABLECLAMP, CABLE
-
92171B92171-1203 CLAMPCLAMP
-
92171C92171-1210 CLAMP, BRAKE CABLECLAMP, BRAKE CABLE
