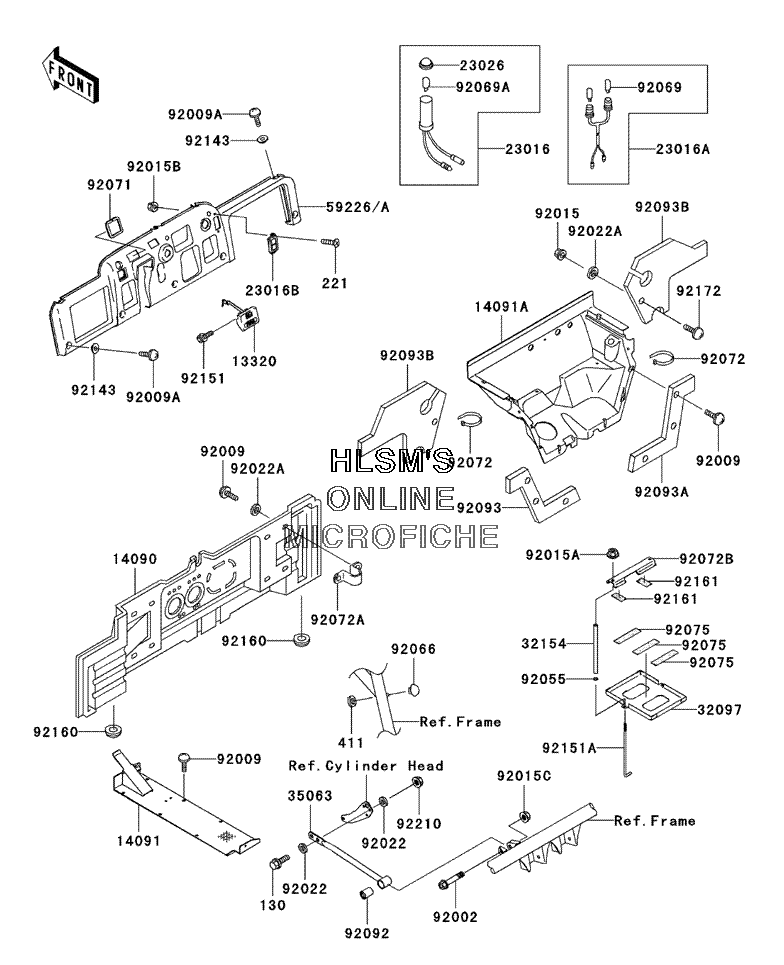

FRAME FITTINGS для Kawasaki MULE 3010 Diesel 4x4 (KAF950-B2) - 2004 года выпуска
-
№АртикулНазвание
-
1332013320-1016 LEVER-ASSYLEVER-ASSY
-
1409014090-1247 COVER, SEAT UNDERCOVER, SEAT UNDER
-
1409114091-0118 COVER, FLOOR, CNTCOVER, FLOOR, CNT
-
14091A14091-1378 COVER, FLOORCOVER, FLOOR
-
2301623016-1128 LAMP-ASSY, TEMPLAMP-ASSY, TEMP
-
23016A23016-1188 LAMP-ASSY, INDICATORLAMP-ASSY, INDICATOR
-
23016B23016-1189 LAMP-ASSYLAMP-ASSY
-
2302623026-1157 LENS, TEMP LAMPLENS, TEMP LAMP
-
3209732097-1200 CASE-BATTERYCASE-BATTERY
-
3215432154-7502 PIPE, 10.22X12.7X206.5PIPE, 10.22X12.7X206.5
-
3506335063-1107 STAYSTAY
-
5922659226-7501-AZ PANEL-CONTROL, GRAYPANEL-CONTROL, GRAY
-
9200292002-1757 BOLT, ROD, 12MMBOLT, ROD, 12MM
-
9200992009-1166 SCREWSCREW
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1386 NUT, 6MMNUT, 6MM
-
92015A92015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015B92015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015C92015-1706 NUT, 12MMNUT, 12MM
-
9202292022-1317 WASHER, 8.5X20X1.6 (BLACK)WASHER, 8.5X20X1.6 (BLACK)
-
92022A92022-1346 WASHER, 6.5X20X1.6 (BLACK)WASHER, 6.5X20X1.6 (BLACK)
-
9205592055-7501 RING-ORING-O
-
9206692066-1485 PLUGPLUG
-
9206992069-1020 BULB, 12V 3W, T7BULB, 12V 3W, T7
-
92069A92069-1059 BULB, 12V 1.7W, T10BULB, 12V 1.7W, T10
-
9207192071-7504 GROMMETGROMMET
-
9207292072-1197 BAND, L=365BAND, L=365
-
92072A92072-1252 BANDBAND
-
92072B92072-1441 BAND, BATTERYBAND, BATTERY
-
9207592075-1829 DAMPERDAMPER
-
9209292092-005 BUSHING-RUBBERBUSHING-RUBBER
-
9209392093-1293 SEAL, FRONT FENDER (LEFT)SEAL, FRONT FENDER (LEFT)
-
92093A92093-1294 SEAL, FRONT FENDER (RIGHT)SEAL, FRONT FENDER (RIGHT)
-
92093B92093-1295 SEAL, LOWER COVERSEAL, LOWER COVER
-
9214392143-1087 COLLARCOLLAR
-
9215192151-1305 BOLT, 5X12BOLT, 5X12
-
92151A92151-1728 BOLTBOLT
-
9216092160-1148 DAMPERDAMPER
-
9216192161-0032 DAMPERDAMPER
-
130130J0822 BOLT-FLANGEDBOLT-FLANGED
-
221221C0616 SCREW-CSK-CROSSCREW-CSK-CROS
-
411411F1000 WASHER-PLAIN, 10MM (BLACK)WASHER-PLAIN, 10MM (BLACK)
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
-
9221092210-0005 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
