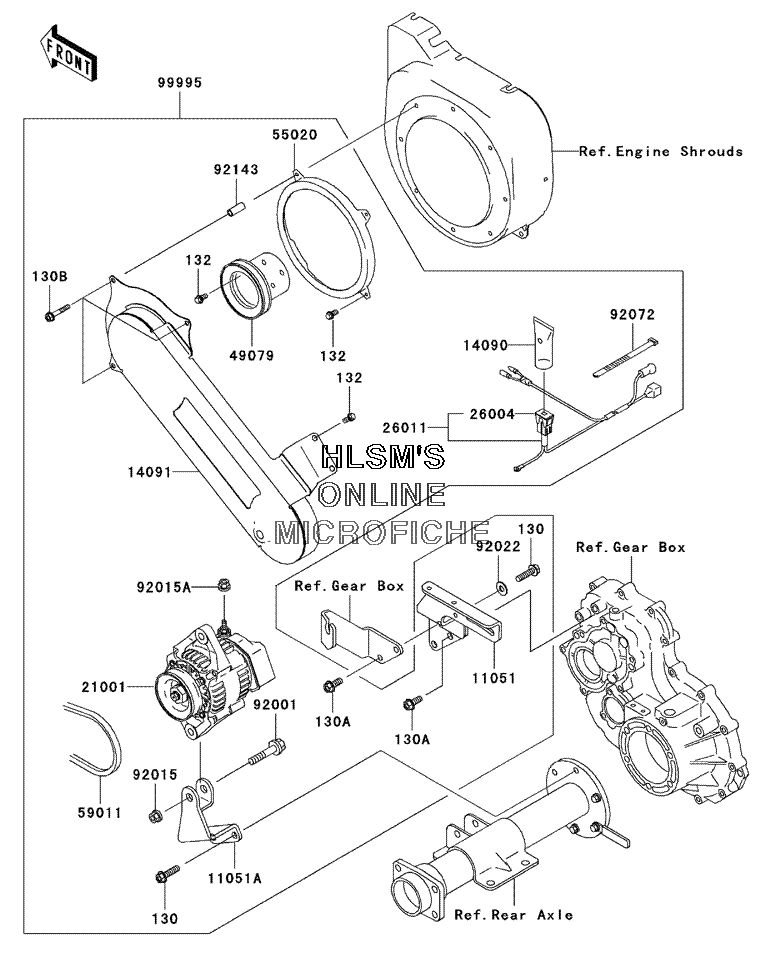

GENERATOR (OPTIONAL) для Kawasaki MULE 550 (KAF300-C7) - 2004 года выпуска
-
№АртикулНазвание
-
130130H0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130A130J0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130B130L0635 BOLT-FLANGEDBOLT-FLANGED
-
132132J0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
1105111051-1359 BRACKET, GENERATOR (UPPER)BRACKET, GENERATOR (UPPER)
-
11051A11051-1360 BRACKET, GENERATOR (LOWER)BRACKET, GENERATOR (LOWER)
-
1409014090-1362 COVER, FUSECOVER, FUSE
-
1409114091-1141 COVER, PULLEY BELTCOVER, PULLEY BELT
-
2100121001-1129 GENERATORGENERATOR
-
2600426004-1096 FUSE-ASSY, 50AFUSE-ASSY, 50A
-
2601126011-1586 WIRE-LEAD, GENERATORWIRE-LEAD, GENERATOR
-
4907949079-1060 PULLEY-BELTPULLEY-BELT
-
5502055020-2070 GUARD, FLYWHEEL SIDEGUARD, FLYWHEEL SIDE
-
5901159011-1064 BELTBELT
-
9200192001-1522 BOLT, BLACK, 10X47BOLT, BLACK, 10X47
-
9201592015-1189 NUT, LOCK, 10MM, BLACKNUT, LOCK, 10MM, BLACK
-
92015A92015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1317 WASHER, 8.5X20X1.6, BLACKWASHER, 8.5X20X1.6, BLACK
-
9207292072-030 BAND, L=123BAND, L=123
-
9214392143-1046 COLLARCOLLAR
-
9999599995-1472 KIT., ALTERNATORKIT., ALTERNATOR
