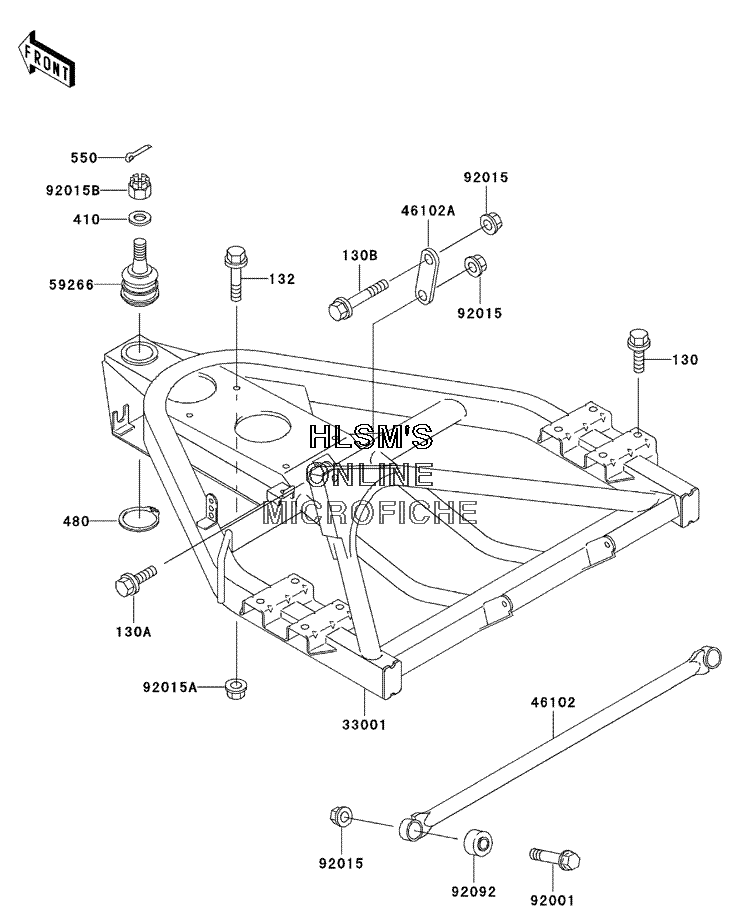

SUSPENSION - SWINGARM для Kawasaki MULE 550 (KAF300-C7) - 2004 года выпуска
-
№АртикулНазвание
-
130130J1016 BOLT-FLANGED, 10X16BOLT-FLANGED, 10X16
-
130A130J1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130B130J1055 BOLT-FLANGED, 10X55BOLT-FLANGED, 10X55
-
132132G0835 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
410410B1400 WASHER-PLAIN-SMALL, 14MMWASHER-PLAIN-SMALL, 14MM
-
480480J3800 CIRCLIP-TYPE-C, 38MMCIRCLIP-TYPE-C, 38MM
-
550550D3230 PIN-COTTER, 3.2X30PIN-COTTER, 3.2X30
-
3300133001-1373 ARM-COMP-SWINGARM-COMP-SWING
-
4610246102-1297 RODROD
-
46102A46102-1298 RODROD
-
5926659266-1087 JOINT-BALLJOINT-BALL
-
9200192001-1702 BOLT, FLANGED, 10X44BOLT, FLANGED, 10X44
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1432 NUT, 8MMNUT, 8MM
-
92015B92015-1841 NUT, CASTLE, 14MMNUT, CASTLE, 14MM
-
9209292092-1072 BUSHING-RUBBERBUSHING-RUBBER
