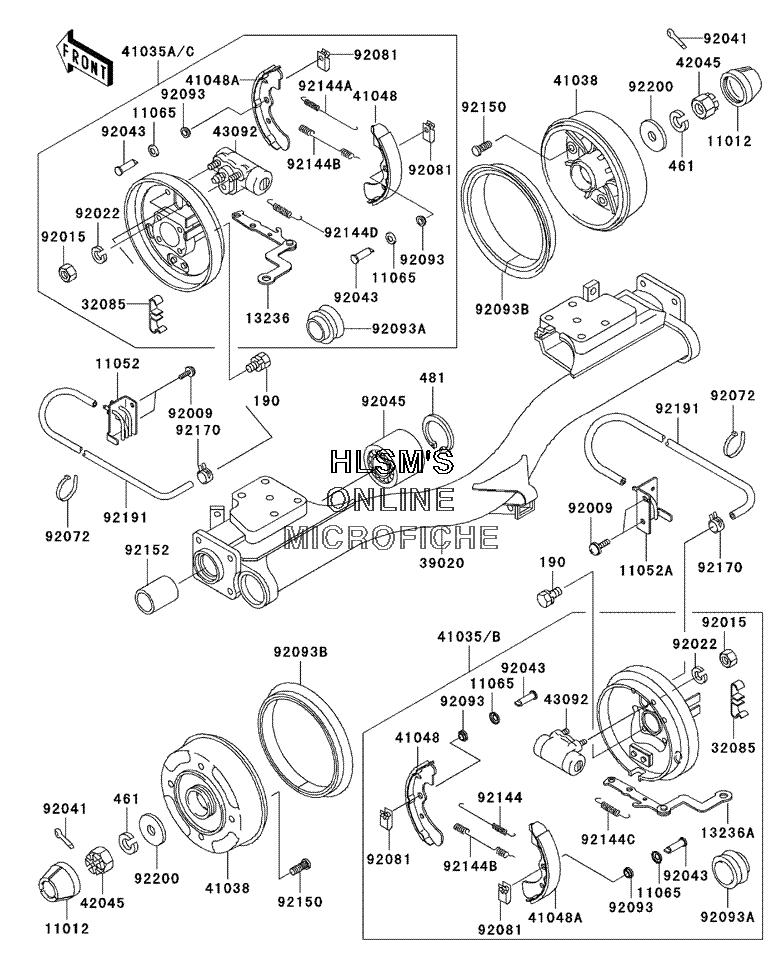

BRAKE - REAR W/ HUBS для Kawasaki MULE 3000 (KAF620-G5) - 2005 года выпуска
-
№АртикулНазвание
-
190190H1016 BOLT-UPSET-WS, 10X16BOLT-UPSET-WS, 10X16
-
461461F1800 WASHER-SPRING, 18MMWASHER-SPRING, 18MM
-
481481J5200 CIRCLIP 52MMCIRCLIP 52MM
-
1101211012-1969 CAP, WHEELCAP, WHEEL
-
1105211052-1125 BRACKET, BREATHER TUBE (RIGHT)BRACKET, BREATHER TUBE (RIGHT)
-
11052A11052-1128 BRACKET, BREATHER TUBE (LEFT)BRACKET, BREATHER TUBE (LEFT)
-
1106511065-1175 CAPCAP
-
1323613236-1355 LEVER-COMP, REAR BRAKE PANEL (RIGHT)LEVER-COMP, REAR BRAKE PANEL (RIGHT)
-
13236A13236-1356 LEVER-COMP, REAR BRAKE PANEL (LEFT)LEVER-COMP, REAR BRAKE PANEL (LEFT)
-
3208532085-1298 STOPPER, REAR BRAKE LEVERSTOPPER, REAR BRAKE LEVER
-
3902039020-1056 BRACKET-COMP-REAR SUSPENSIONBRACKET-COMP-REAR SUSPENSION
-
41035B41035-1535 PANEL-ASSY.-BRAKE, REAR (LEFT)PANEL-ASSY.-BRAKE, REAR (LEFT)
-
41035C41035-1536 PANEL-ASSY.-BRAKE, REAR (RIGHT)PANEL-ASSY.-BRAKE, REAR (RIGHT)
-
4103841038-1336 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
4104841048-1132 SHOE-BRAKESHOE-BRAKE
-
41048A41048-1133 SHOE-BRAKESHOE-BRAKE
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
4309243092-1053 CYLINDER, REAR WHEELCYLINDER, REAR WHEEL
-
9200992009-1166 SCREWSCREW
-
9201592015-1729 NUT, 6MMNUT, 6MM
-
9202292022-1951 WASHER, SPRING, 6MMWASHER, SPRING, 6MM
-
9204192041-1053 COTTER, 4.0X35COTTER, 4.0X35
-
9204392043-1636 PINPIN
-
9204592045-1411 BEARING-BALL, 25BWD02CA68BEARING-BALL, 25BWD02CA68
-
9207292072-030 BAND, L=123BAND, L=123
-
9208192081-1904 SPRING, SHOE CLAMPSPRING, SHOE CLAMP
-
9209392093-1532 SEALSEAL
-
92093A92093-1533 SEALSEAL
-
92093B92093-1543 SEAL, BS184.8X13.5ZSSEAL, BS184.8X13.5ZS
-
9214492144-1299 SPRING, BRAKESPRING, BRAKE
-
92144A92144-1300 SPRING, BRAKESPRING, BRAKE
-
92144B92144-1301 SPRING, BRAKESPRING, BRAKE
-
92144C92144-1302 SPRING, ROD (LEFT)SPRING, ROD (LEFT)
-
92144D92144-1303 SPRING, ROD (RIGHT)SPRING, ROD (RIGHT)
-
9215092150-1366 BOLTBOLT
-
9215292152-1276 COLLAR, 25.1X38X40.8COLLAR, 25.1X38X40.8
-
9217092170-2042 CLAMPCLAMP
-
9219192191-1525 TUBE, 4.7X9.5X1100TUBE, 4.7X9.5X1100
-
9220092200-1474 WASHER, 18.5X52X4.5WASHER, 18.5X52X4.5
