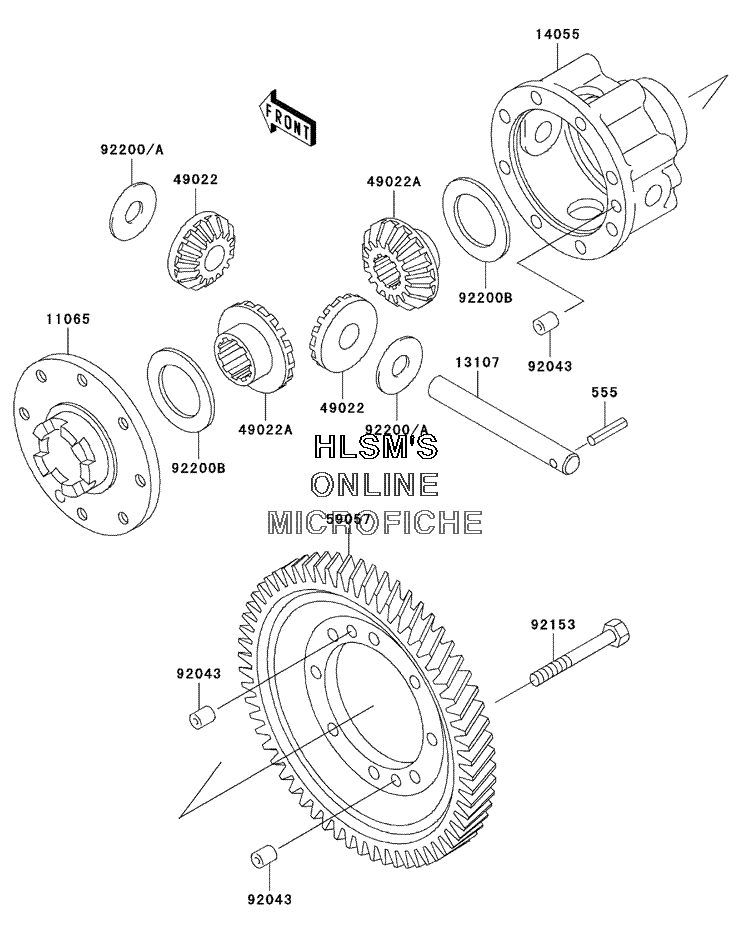

DIFFERENTIAL для Kawasaki MULE 3000 (KAF620-G5) - 2005 года выпуска
-
№АртикулНазвание
-
555555A0525 PIN-SPRING 5X25PIN-SPRING 5X25
-
1106511065-0033 CAP, GEAR CASECAP, GEAR CASE
-
1310713107-0009 SHAFTSHAFT
-
1405514055-0003 CASE-GEAR, DIFFERENTIALCASE-GEAR, DIFFERENTIAL
-
4902249022-1105 GEAR-BEVEL (10 TEETH)GEAR-BEVEL (10 TEETH)
-
49022A49022-1117 GEAR-BEVEL (16 TEETH)GEAR-BEVEL (16 TEETH)
-
5905759057-0002 GEAR-HELICAL, DIFFERENTIALGEAR-HELICAL, DIFFERENTIAL
-
9204392043-0029 PIN, 10X12PIN, 10X12
-
9215392153-0331 BOLT, 10X63BOLT, 10X63
-
9220092200-0021 WASHER, 14.5X38X1.2WASHER, 14.5X38X1.2
-
92200A92200-1044 WASHER, 14.5X38X1.0WASHER, 14.5X38X1.0
-
92200B92200-1045 WASHER, 35.5X54X1.0WASHER, 35.5X54X1.0
