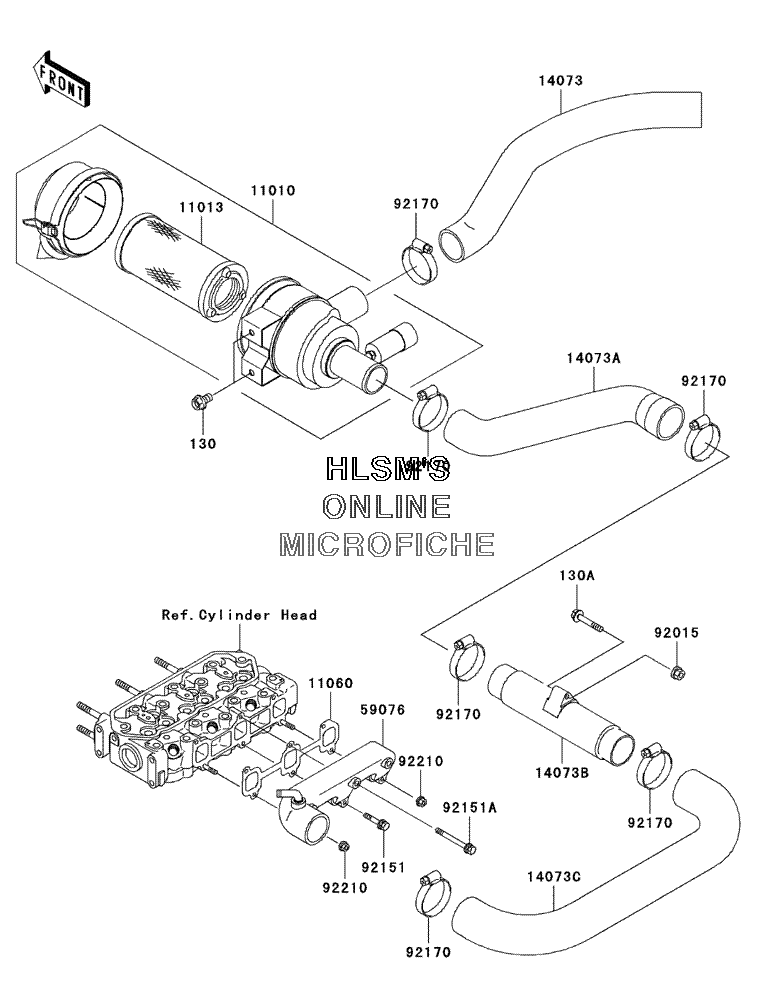

AIR CLEANER для Kawasaki MULE 3010 Diesel 4x4 (KAF950-B3) - 2005 года выпуска
-
№АртикулНазвание
-
130130J0814 BOLT-FLANGED, 8X14BOLT-FLANGED, 8X14
-
130A130L0635 BOLT-FLANGEDBOLT-FLANGED
-
1101011010-1689 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101311013-1290 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1106011060-1960 GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
1407314073-1752 DUCT, AIR CLEANER, INLETDUCT, AIR CLEANER, INLET
-
14073A14073-1753 DUCT, AIR CLEANER, OUTLETDUCT, AIR CLEANER, OUTLET
-
14073B14073-1754 DUCT, AIR CLEANER, OUTLETDUCT, AIR CLEANER, OUTLET
-
14073C14073-1755 DUCT, ENGINE, INLETDUCT, ENGINE, INLET
-
5907659076-1112 MANIFOLD-INTAKEMANIFOLD-INTAKE
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9215192151-1667 BOLT, 6X20BOLT, 6X20
-
92151A92151-1695 BOLT, 6X60BOLT, 6X60
-
9217092170-1338 CLAMPCLAMP
-
9221092210-1210 NUT, 6MMNUT, 6MM
