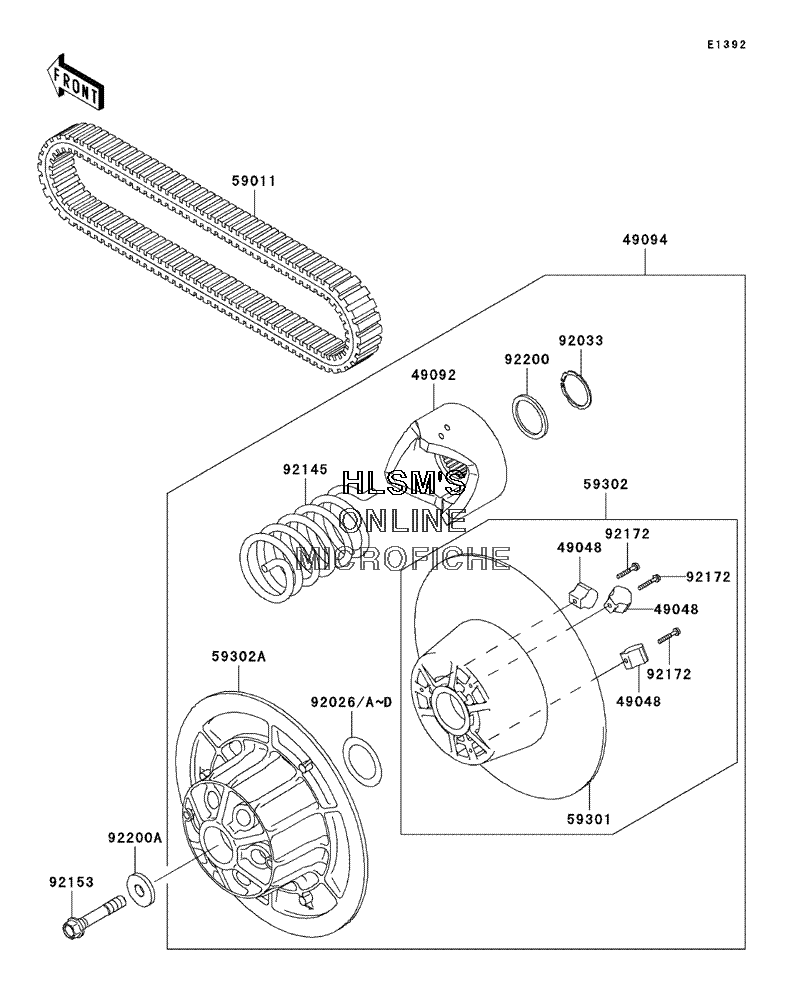

DRIVEN CONVERTER для Kawasaki MULE 3010 Diesel 4x4 (KAF950-B3) - 2005 года выпуска
-
№АртикулНазвание
-
4904849048-1097 SHOESHOE
-
4909249092-1069 RAMPRAMP
-
4909449094-1107 CONVERTER-ASSY-DRIVENCONVERTER-ASSY-DRIVEN
-
5901159011-1087 BELTBELT
-
5930159301-1072 SHEAVE-MOVABLESHEAVE-MOVABLE
-
5930259302-1104 SHEAVE-COMP, MOVABLESHEAVE-COMP, MOVABLE
-
59302A59302-1105 SHEAVE-COMPSHEAVE-COMP
-
9202692026-0036 SPACER, 40.5X58X0.3SPACER, 40.5X58X0.3
-
92026A92026-1625 SPACER, 40.5X58X1.0SPACER, 40.5X58X1.0
-
92026B92026-1626 SPACER, 40.5X58X0.6SPACER, 40.5X58X0.6
-
92026C92026-1627 SPACER, 40.5X58X1.4SPACER, 40.5X58X1.4
-
92026D92026-1628 SPACER, 40.5X58X0.8SPACER, 40.5X58X0.8
-
9203392033-1317 RING-SNAPRING-SNAP
-
9214592145-0047 SPRING, DRIVEN CONVERTERSPRING, DRIVEN CONVERTER
-
9215392153-0509 BOLT, 12X70BOLT, 12X70
-
9217292172-0060 SCREW, 4X25SCREW, 4X25
-
9220092200-1645 WASHERWASHER
-
92200A92200-1665 WASHERWASHER
