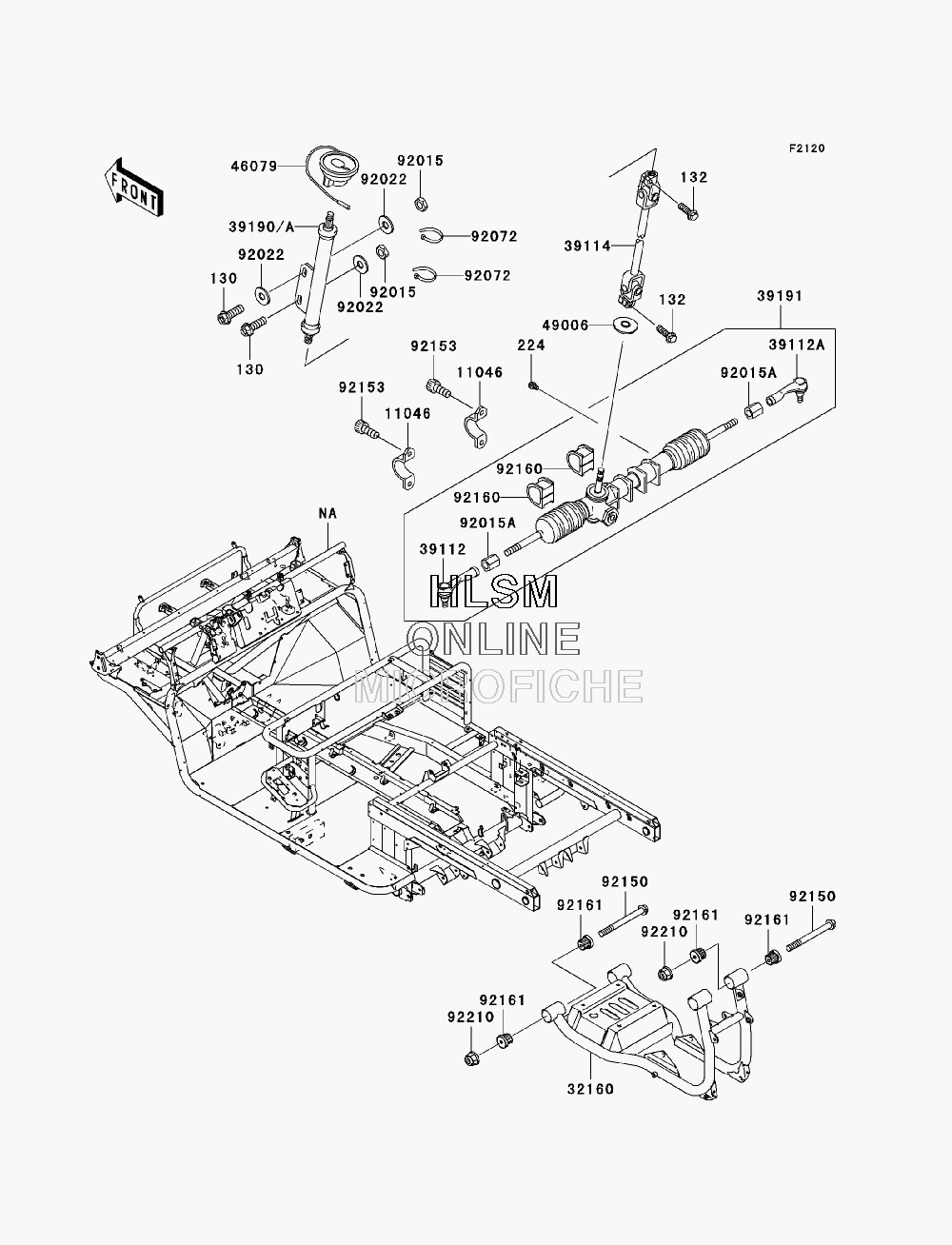

FRAME для Kawasaki MULE 3010 TRANS4X4 (KAF620J7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130BB1030 BOLT-FLANGED, 10X30BOLT-FLANGED, 10X30
-
132132BB0825 BOLT-FLANGED-SMALL, 8X25BOLT-FLANGED-SMALL, 8X25
-
224224AA0508 SCREW-PAN-WP-CROSS, 5X8SCREW-PAN-WP-CROSS, 5X8
-
1104611046-1858 BRACKET, STEERING GEARBRACKET, STEERING GEAR
-
3216032160-0004 FRAME-COMP, REARFRAME-COMP, REAR
-
3911239112-1068 RODEND-TIE, STEERING GEAR, LEFT HANDRODEND-TIE, STEERING GEAR, LEFT HAND
-
39112A39112-1069 RODEND-TIE, STEERING GEAR, RIGHT HANDRODEND-TIE, STEERING GEAR, RIGHT HAND
-
3911439114-0009 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
39190A39190-1006 SHAFT-ASSY-STEERINGSHAFT-ASSY-STEERING
-
3919139191-0008 GEAR-ASSY-STEERINGGEAR-ASSY-STEERING
-
4607946079-1063 CONTACT, HORN SWITCHCONTACT, HORN SWITCH
-
4900649006-1255 BOOT, STEERING SHAFT, LWRBOOT, STEERING SHAFT, LWR
-
9201592015-1189 NUT, LOCK, 10MM, BLACKNUT, LOCK, 10MM, BLACK
-
92015A92015-1864 NUTNUT
-
9202292022-1396 WASHER, 10.5X26X2.3, BLACKWASHER, 10.5X26X2.3, BLACK
-
9207292072-1239 BAND, L=188BAND, L=188
-
9215092150-1731 BOLT, FLANGED, 10X100BOLT, FLANGED, 10X100
-
9215392153-1269 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9216092160-1084 DAMPER, STEERING GEARDAMPER, STEERING GEAR
-
9216192161-1126 DAMPERDAMPER
-
9221092210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
