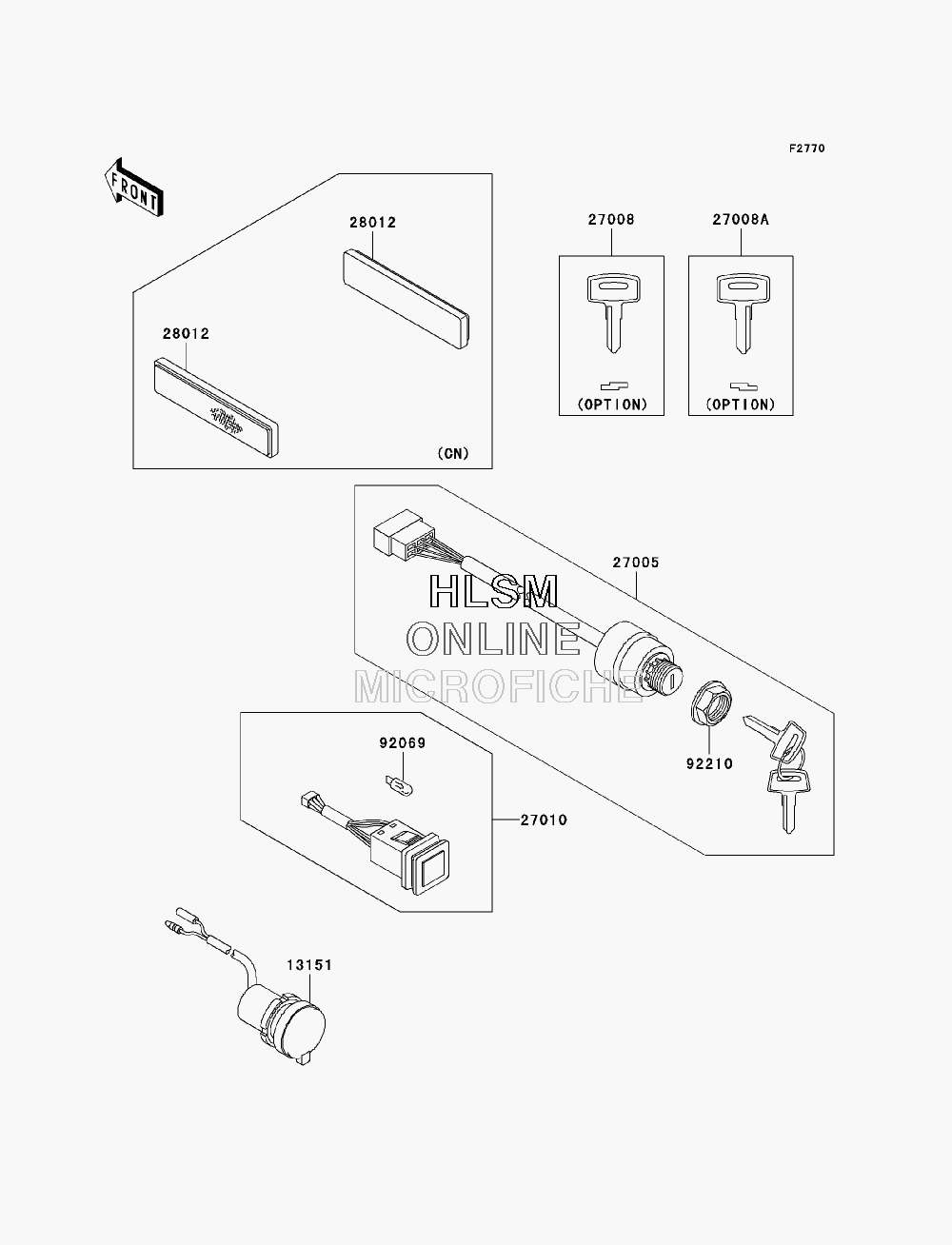

SWITCHES для Kawasaki MULE 3010 TRANS4X4 (KAF620J7F) - 2007 года выпуска
-
№АртикулНазвание
-
1315113151-0003 SWITCH-COMP, D.C.TERMINALSWITCH-COMP, D.C.TERMINAL
-
2700527005-1244 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1153 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
27008A27008-1157 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-1498 SWITCH, HEAD LAMPSWITCH, HEAD LAMP
-
2801228012-1086 REFLECTOR-REFLEX, FRONT (CANADA ONLY)REFLECTOR-REFLEX, FRONT (CANADA ONLY)
-
9206992069-1118 BULB, 12V 1.7W, T6.5BULB, 12V 1.7W, T6.5
-
9221092210-1264 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
