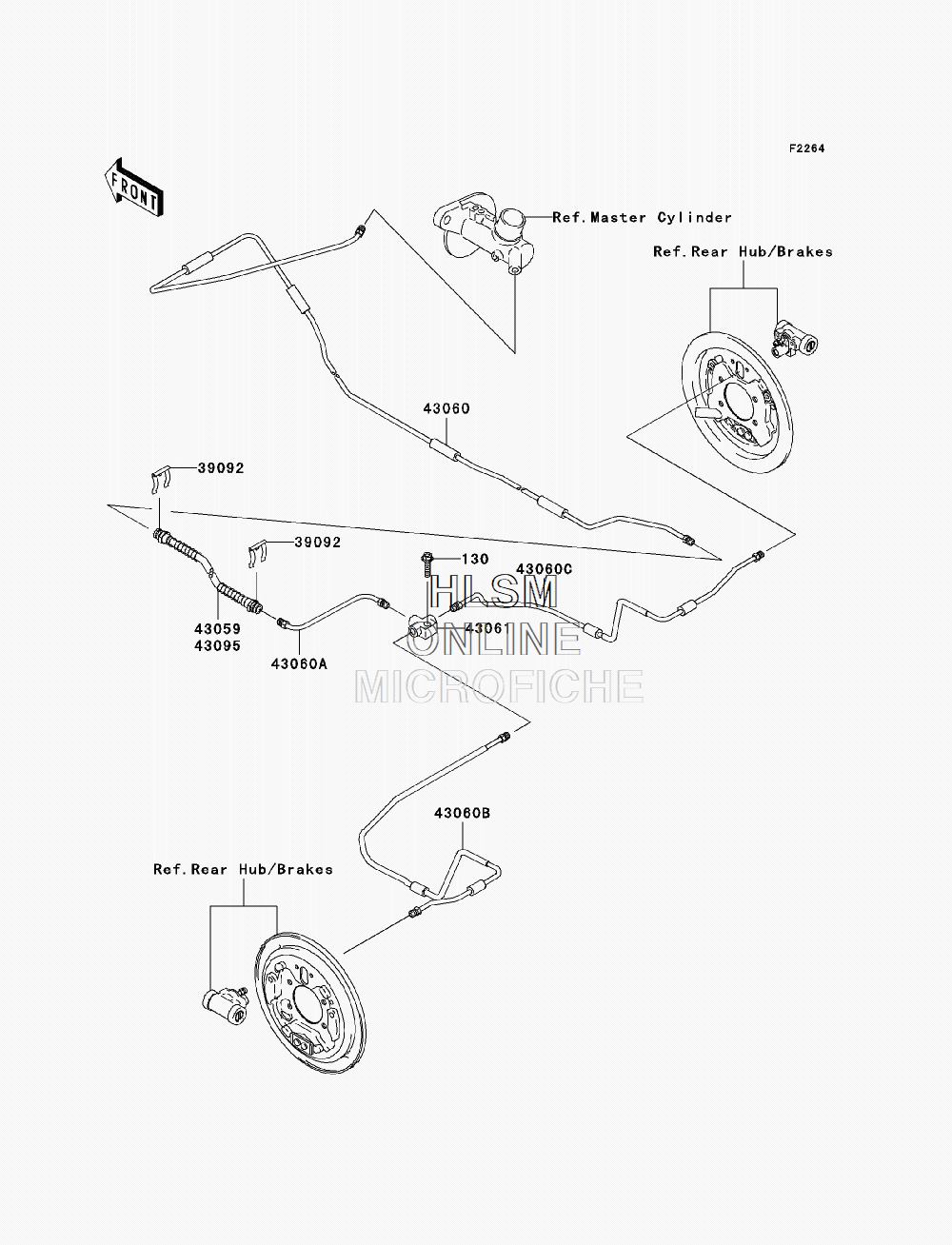

BRAKE PIPING - REAR для Kawasaki MULE 600 (KAF400B7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130AA0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
3909239092-1052 PIN-HAIRPIN-HAIR
-
4305943059-1665 HOSE-BRAKE, CNTHOSE-BRAKE, CNT
-
4306043060-0003 PIPE-BRAKE, M/CYLINDERPIPE-BRAKE, M/CYLINDER
-
43060A43060-0006 PIPE-BRAKE, REAR, CNTPIPE-BRAKE, REAR, CNT
-
43060B43060-0007 PIPE-BRAKE, REAR, LEFT HANDPIPE-BRAKE, REAR, LEFT HAND
-
43060C43060-0008 PIPE-BRAKE, REAR, RIGHT HANDPIPE-BRAKE, REAR, RIGHT HAND
-
4306143061-1063 JOINT-BRAKEJOINT-BRAKE
