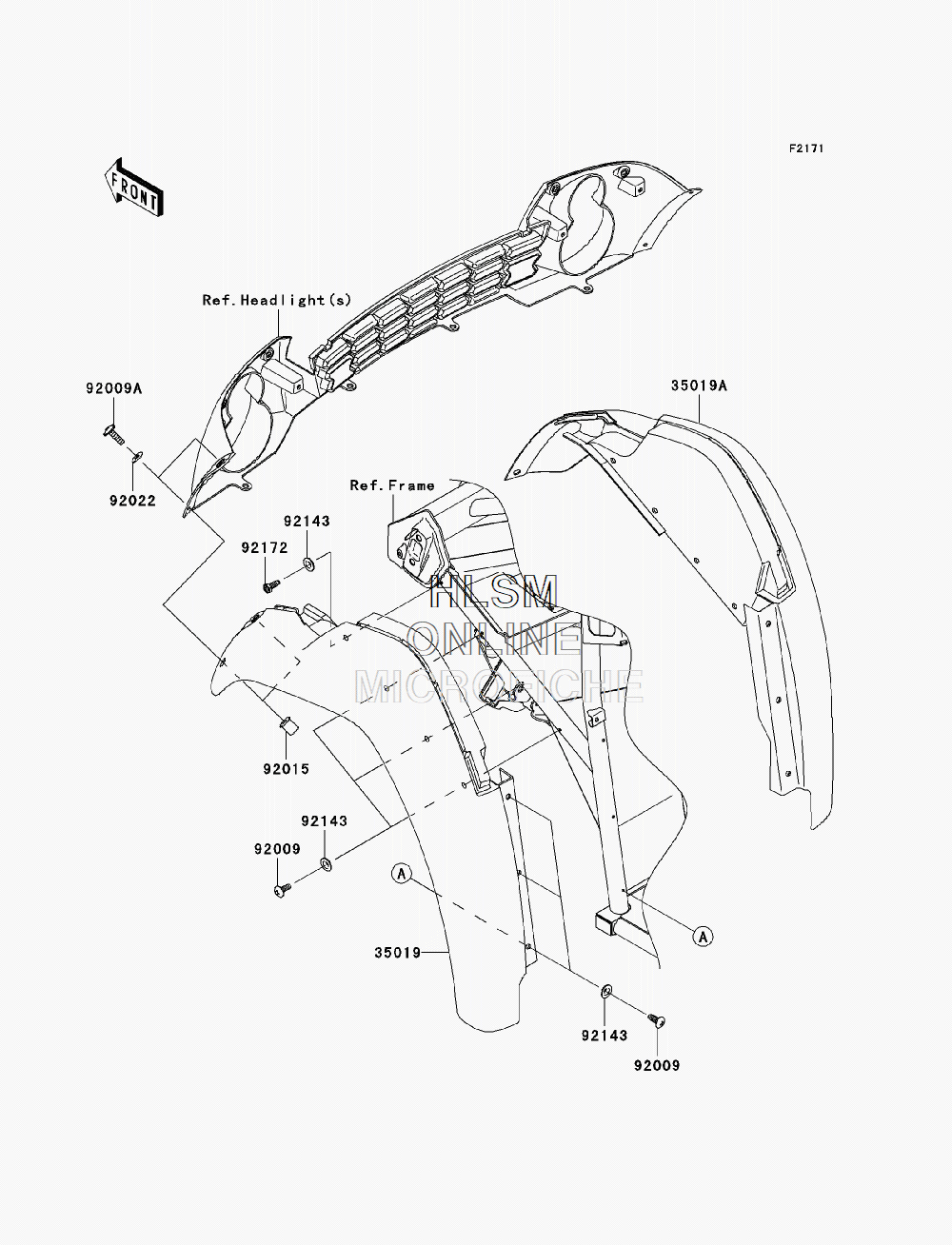

FENDER - FRONT для Kawasaki MULE 600 (KAF400B7F) - 2007 года выпуска
-
№АртикулНазвание
-
3501935019-0034-283 FLAP, FRONT, LEFT HAND, BLACKFLAP, FRONT, LEFT HAND, BLACK
-
35019A35019-0035-283 FLAP, FRONT, RIGHT HAND, BLACKFLAP, FRONT, RIGHT HAND, BLACK
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1256 SCREW, 6X22, BLACKSCREW, 6X22, BLACK
-
9201592015-1700 NUTNUT
-
9202292022-1143 WASHER, 6.5X16X1WASHER, 6.5X16X1
-
9214392143-1087 COLLARCOLLAR
-
9217292172-0205 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
