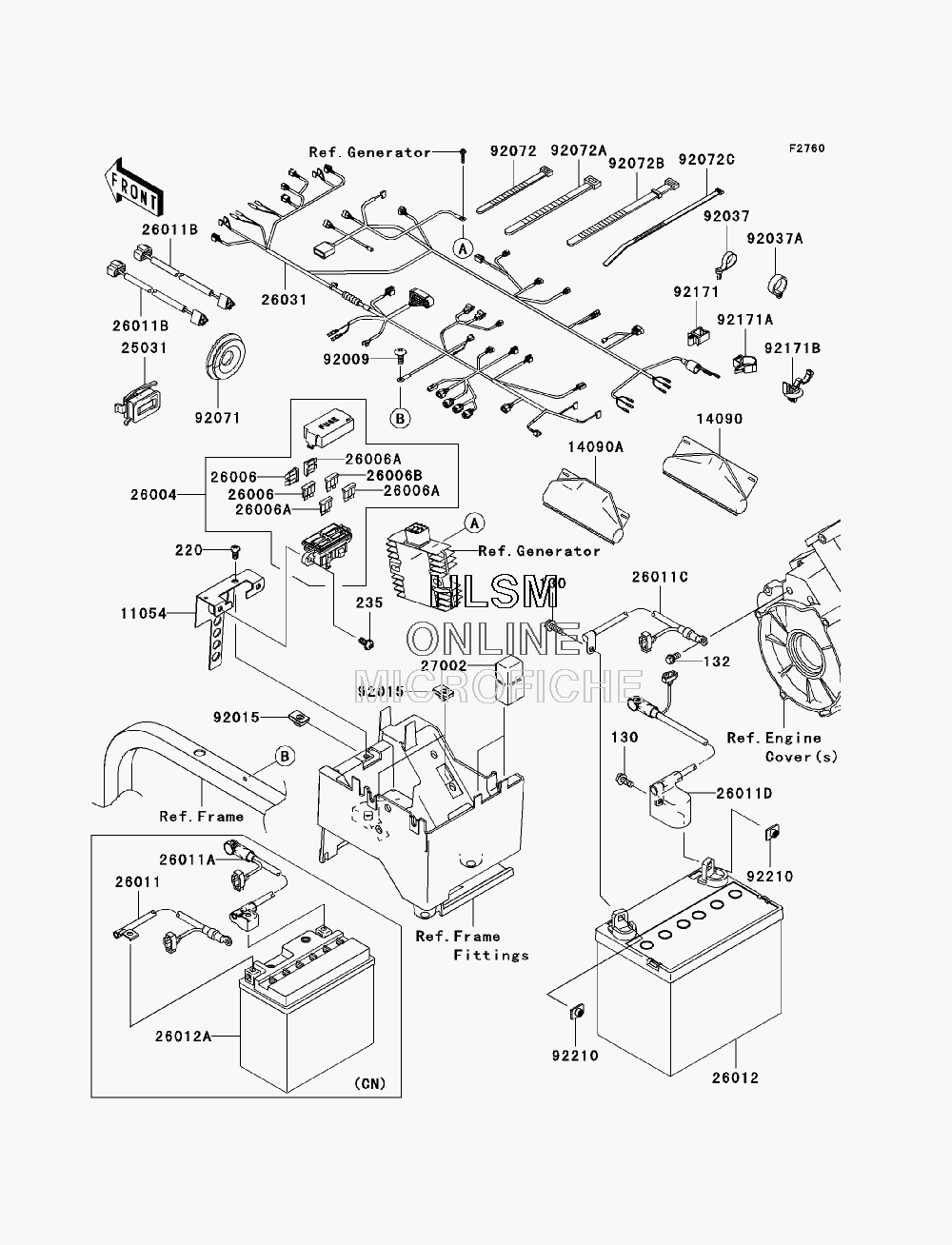

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki TERYX 750 4X4 (KRF750A8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130BA0616 BOLT-FLANGED, 6X16 (USA ONLY)BOLT-FLANGED, 6X16 (USA ONLY)
-
132132BD0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
220220AA0612 SCREW-PAN-CROSS, 6X12SCREW-PAN-CROSS, 6X12
-
1105411054-1068 BRACKET, FUSE ASSYBRACKET, FUSE ASSY
-
1409014090-1331 COVER, COUPLERCOVER, COUPLER
-
14090A14090-1611 COVER, COUPLERCOVER, COUPLER
-
2503125031-7506 METER-ASSY, HOURMETER-ASSY, HOUR
-
2600426004-0015 FUSE-ASSYFUSE-ASSY
-
2600626006-0004 FUSE, 30AFUSE, 30A
-
26006A26006-0005 FUSE, 10AFUSE, 10A
-
26006B26006-1082 FUSE, 5AFUSE, 5A
-
2601126011-0129 WIRE-LEAD, BATTERY (-) (CANADA ONLY)WIRE-LEAD, BATTERY (-) (CANADA ONLY)
-
26011A26011-0130 WIRE-LEAD, BATTERY (+) (CANADA ONLY)WIRE-LEAD, BATTERY (+) (CANADA ONLY)
-
26011B26011-0143 WIRE-LEAD, HEAD LAMPWIRE-LEAD, HEAD LAMP
-
26011C26011-0181 WIRE-LEAD, BATTERY (-) (USA ONLY)WIRE-LEAD, BATTERY (-) (USA ONLY)
-
26011D26011-0190 WIRE-LEAD, BATTERY (+) (USA ONLY)WIRE-LEAD, BATTERY (+) (USA ONLY)
-
2601226012-0107 BATTERY (USA ONLY)BATTERY (USA ONLY)
-
26012A26012-1414 BATTERY, MF, KMX14-BS, 12V 12AH (CANADA ONLY)BATTERY, MF, KMX14-BS, 12V 12AH (CANADA ONLY)
-
2603126031-0664 HARNESS, MAINHARNESS, MAIN
-
2700227002-1088 RELAY-ASSYRELAY-ASSY
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9201592015-1602 NUT, 6MMNUT, 6MM
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037A92037-1827 CLAMP, HOSECLAMP, HOSE
-
9207192071-0030 GROMMETGROMMET
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-031 BAND, L=149BAND, L=149
-
92072B92072-056 BAND, L=186BAND, L=186
-
92072C92072-3509 BAND, L=292.1BAND, L=292.1
-
9217192171-0290 CLAMPCLAMP
-
92171A92171-0316 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171B92171-0453 CLAMPCLAMP
-
9221092210-1352 NUT, PLATE, 6MM (USA ONLY)NUT, PLATE, 6MM (USA ONLY)
-
235235AA0614 SCREW-PAN-WP-CROSS, 6X14SCREW-PAN-WP-CROSS, 6X14
