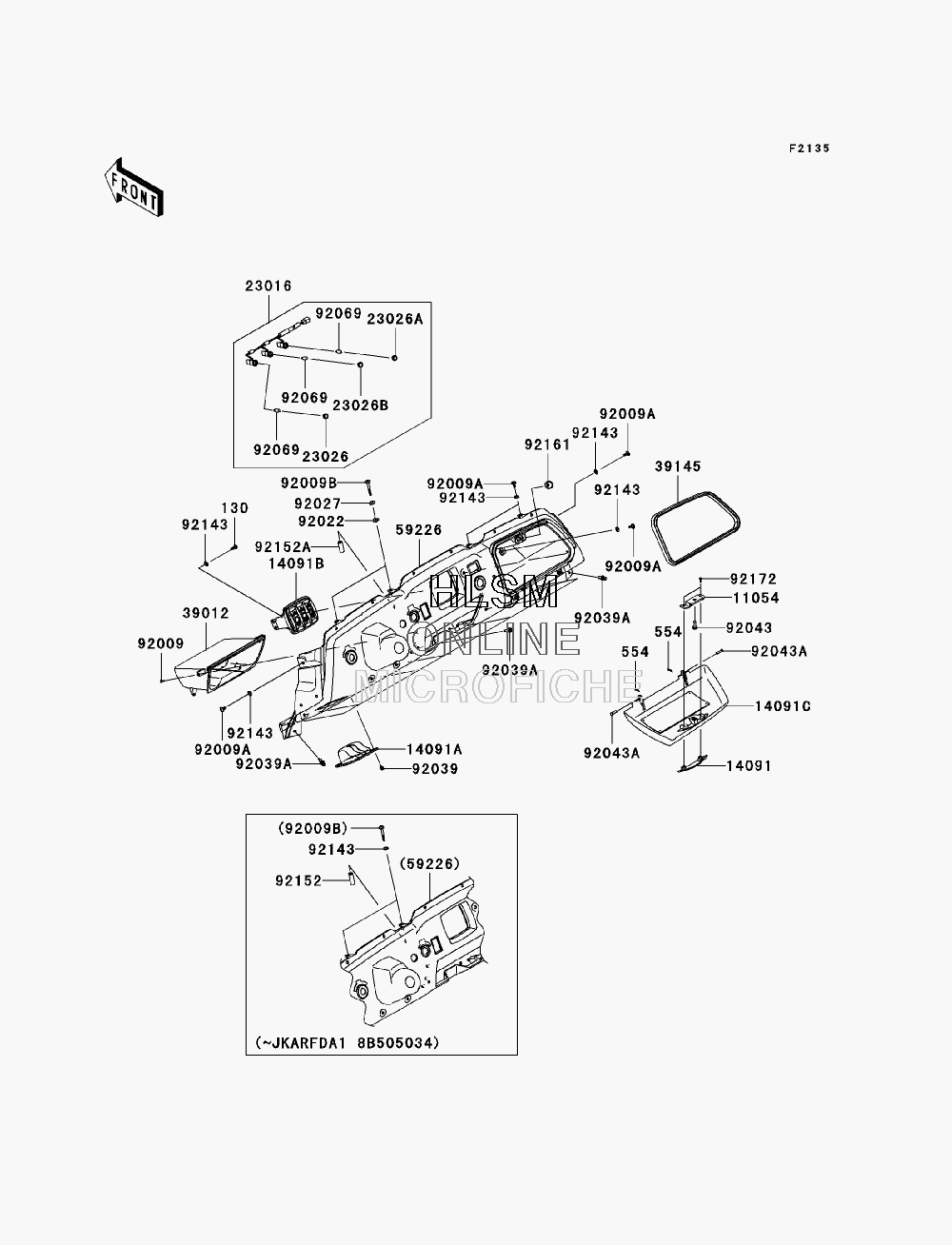

FRONT BOX для Kawasaki TERYX 750 4X4 (KRF750A8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130BB0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
554554DA0600 PIN-SNAPPIN-SNAP
-
1105411054-1789 BRACKETBRACKET
-
1409114091-0700-6Z COVER, STORAGE CAP, F. BLACKCOVER, STORAGE CAP, F. BLACK
-
14091A14091-0702-6Z COVER, LEFT HAND, F. BLACKCOVER, LEFT HAND, F. BLACK
-
14091B14091-0870-6Z COVER, CONTROL PANEL, F. BLACKCOVER, CONTROL PANEL, F. BLACK
-
14091C14091-0985-6Z COVER, STORAGE, F. BLACKCOVER, STORAGE, F. BLACK
-
2301623016-0016 LAMP-ASSYLAMP-ASSY
-
2302623026-0010 LENS, PILOT, ORANGELENS, PILOT, ORANGE
-
23026A23026-0011 LENS, REDLENS, RED
-
23026B23026-1251 LENS, PILOT, GREENLENS, PILOT, GREEN
-
3901239012-0017-6Z CASE-STORAGE, F. BLACKCASE-STORAGE, F. BLACK
-
3914539145-0029 TRIM-SEAL, L=940TRIM-SEAL, L=940
-
5922659226-0018-6Z PANEL-CONTROL, F. BLACKPANEL-CONTROL, F. BLACK
-
9200992009-1444 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
92009B92009-1829 SCREW, 6X56SCREW, 6X56
-
9202292022-239 WASHER, 10.5X20X1 (JKARFDA1 8B505035 AND ABOVE)WASHER, 10.5X20X1 (JKARFDA1 8B505035 AND ABOVE)
-
9202792027-1964 COLLAR, L=4.7 (JKARFDA1 8B505035 AND ABOVE)COLLAR, L=4.7 (JKARFDA1 8B505035 AND ABOVE)
-
9203992039-0046 RIVETRIVET
-
92039A92039-1229 RIVETRIVET
-
9204392043-0138 PINPIN
-
92043A92043-0164 PIN, 6X23PIN, 6X23
-
9206992069-1059 BULB, 12V 1.7W, T10BULB, 12V 1.7W, T10
-
9214392143-1087 COLLARCOLLAR
-
9215292152-0508 COLLAR, 7.48X14.28X42 (UP TO JKARFDA1 8B505034)COLLAR, 7.48X14.28X42 (UP TO JKARFDA1 8B505034)
-
92152A92152-0777 COLLAR, 7.95X15.88X40 (JKARFDA1 8B505035 AND ABOVE)COLLAR, 7.95X15.88X40 (JKARFDA1 8B505035 AND ABOVE)
-
9216192161-0568 DAMPERDAMPER
-
9217292172-0347 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
