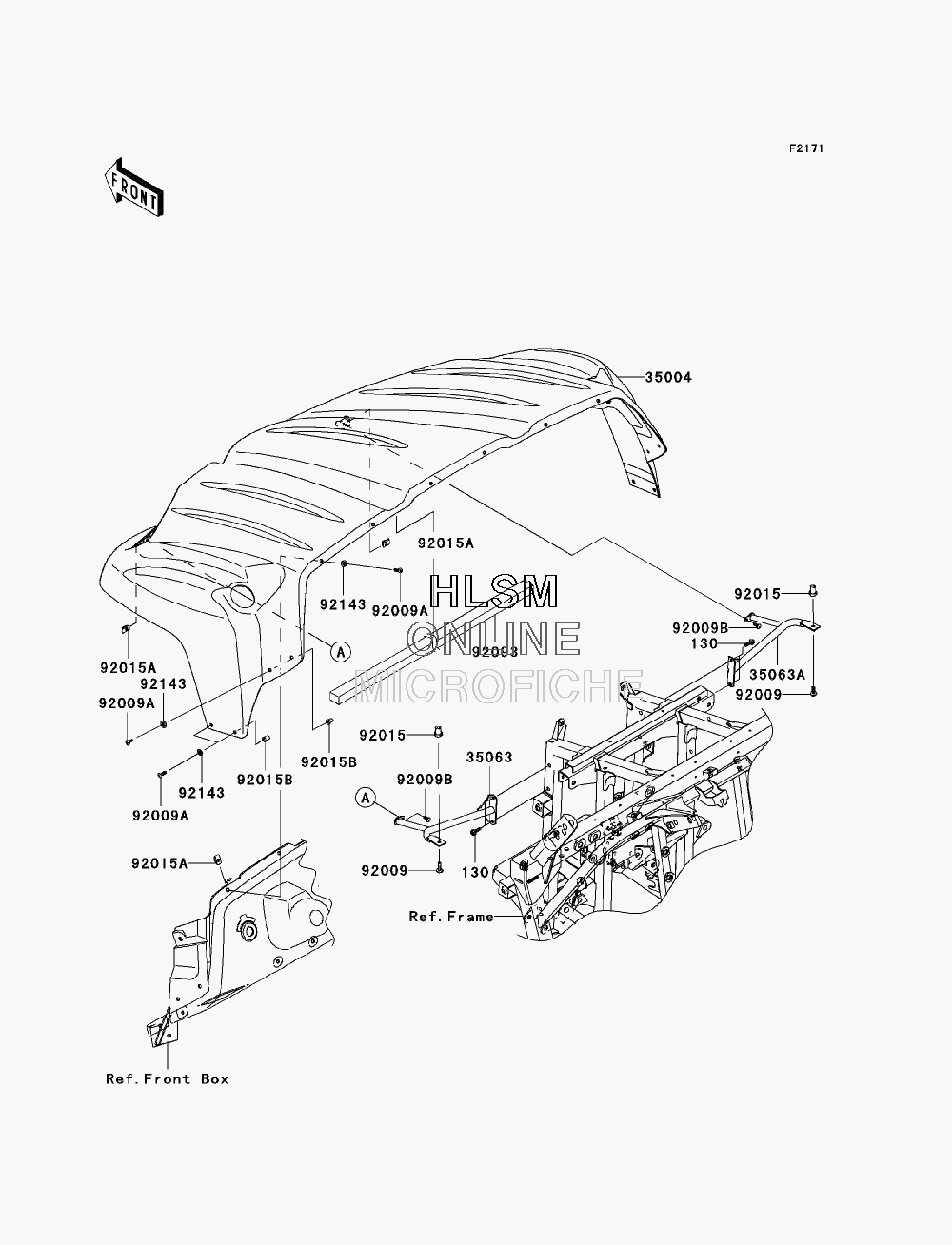

FENDER - FRONT для Kawasaki TERYX 750 4X4 (KRF750B8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130CA0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
3500435004-0077-826 FENDER-FRONT, C. H. GREEN (FOR 826)FENDER-FRONT, C. H. GREEN (FOR 826)
-
3506335063-0420 STAY, FRONT FENDER, LEFT HANDSTAY, FRONT FENDER, LEFT HAND
-
35063A35063-0421 STAY, FRONT FENDER, RIGHT HANDSTAY, FRONT FENDER, RIGHT HAND
-
9200992009-1256 SCREW, 6X22, BLACKSCREW, 6X22, BLACK
-
92009A92009-1656 SCREW, 5X20, BLACKSCREW, 5X20, BLACK
-
92009B92009-3797 SCREW, 5X16SCREW, 5X16
-
9201592015-1692 NUT, RUBBER, 6MMNUT, RUBBER, 6MM
-
92015A92015-1710 NUT, 5MMNUT, 5MM
-
92015B92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9209392093-0141 SEALSEAL
-
9214392143-1087 COLLARCOLLAR
