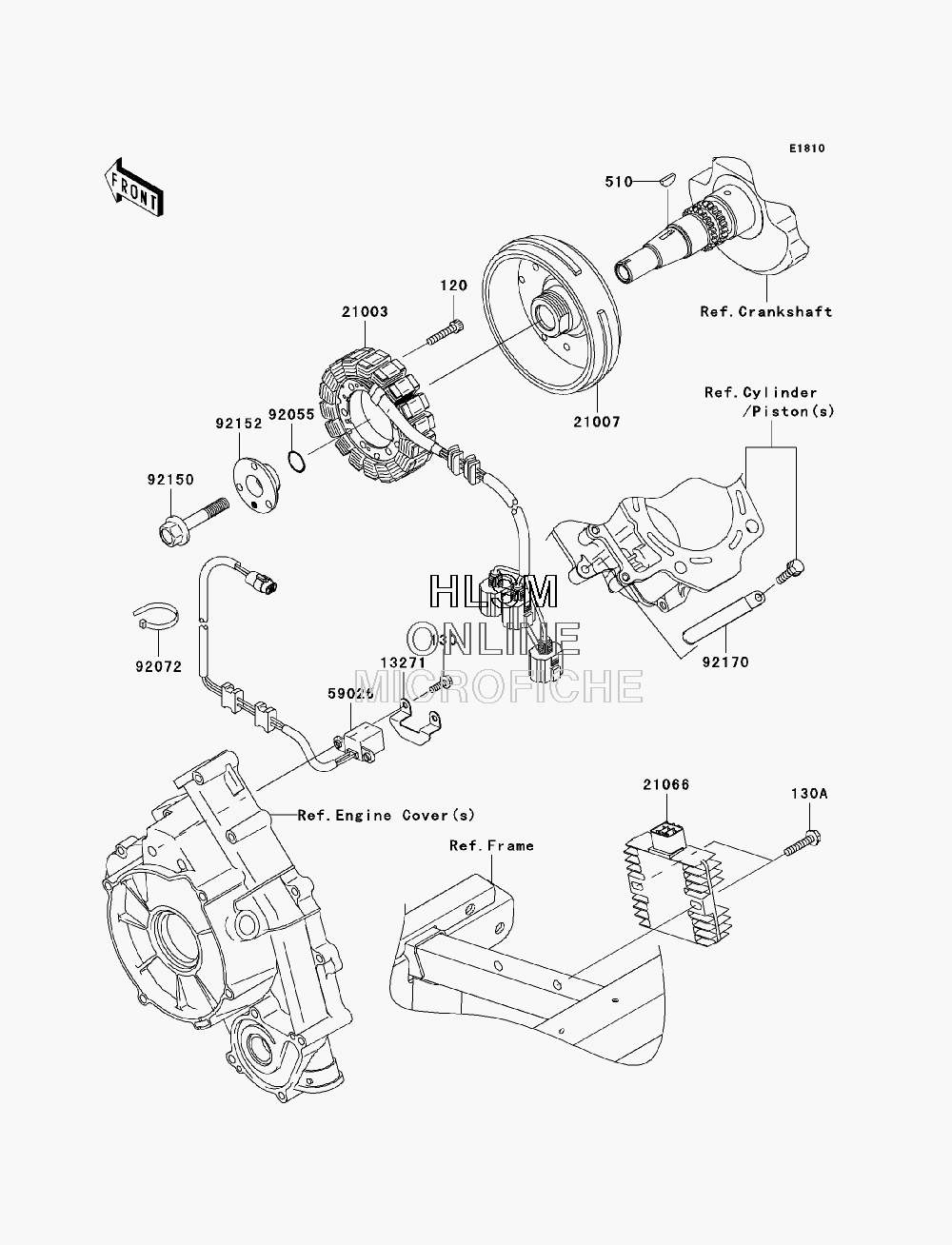

GENERATOR для Kawasaki TERYX 750 4X4 (KRF750B8F) - 2008 года выпуска
-
№АртикулНазвание
-
120120CA0628 BOLT-SOCKET, 6X28BOLT-SOCKET, 6X28
-
130130BA0516 BOLT-FLANGED, 5X16BOLT-FLANGED, 5X16
-
130A130BB0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
510510A4200 KEY-WOODRUFFKEY-WOODRUFF
-
1327113271-1369 PLATEPLATE
-
2100321003-0077 STATORSTATOR
-
2100721007-1367 ROTORROTOR
-
2106621066-0030 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
5902659026-1159 COIL-PULSINGCOIL-PULSING
-
9205592055-1215 RING-O, 19.8X2.2RING-O, 19.8X2.2
-
9207292072-1239 BAND, L=188BAND, L=188
-
9215092150-1987 BOLT, 12X65BOLT, 12X65
-
9215292152-1467 COLLAR, 20X51X17COLLAR, 20X51X17
-
9217092170-1925 CLAMPCLAMP
