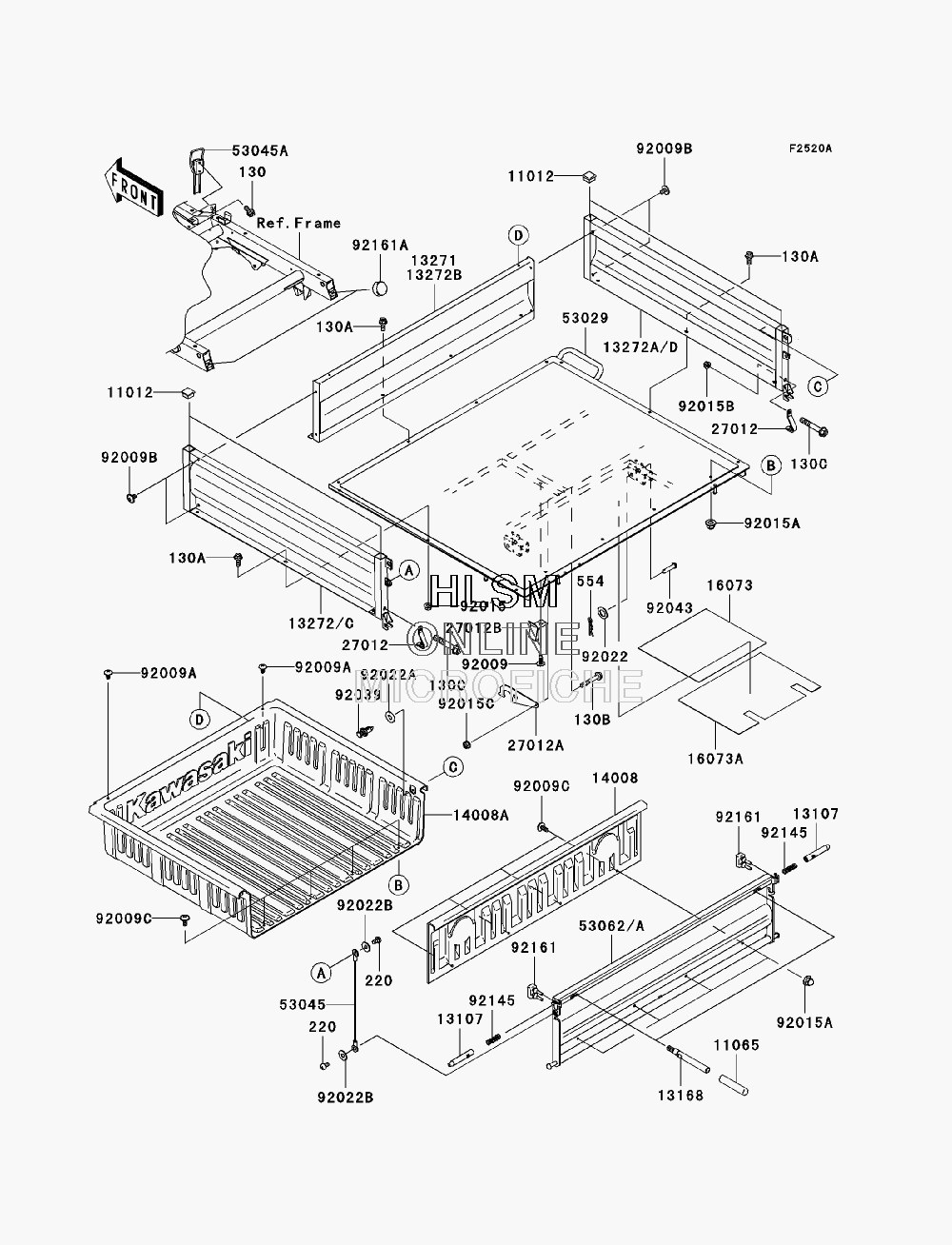

CARRIER(S) для Kawasaki MULE 610 4X4 HARDWOODS GREEN HD (KAF400C9F) - 2009 года выпуска
-
№АртикулНазвание
-
1101211012-1784 CAPCAP
-
1106511065-0126 CAPCAP
-
1310713107-0082 SHAFTSHAFT
-
1316813168-0090 LEVERLEVER
-
13272B13272-0541-826 PLATE, CARRIER, SIDE, FRONT, GREENPLATE, CARRIER, SIDE, FRONT, GREEN
-
13272C13272-0542-826 PLATE, CARRIER, SIDE, LEFT HAND, GREENPLATE, CARRIER, SIDE, LEFT HAND, GREEN
-
13272D13272-0543-826 PLATE, CARRIER, SIDE, RIGHT HAND, GREENPLATE, CARRIER, SIDE, RIGHT HAND, GREEN
-
1400814008-0010 LINER, TAIL GATELINER, TAIL GATE
-
14008A14008-0012 LINER, CARRIER BEDLINER, CARRIER BED
-
1607316073-0039 INSULATOR, CARRIERINSULATOR, CARRIER
-
16073A16073-0040 INSULATOR, CARRIERINSULATOR, CARRIER
-
2701227012-0022 HOOK, TAIL GATEHOOK, TAIL GATE
-
27012A27012-0044 HOOKHOOK
-
27012B27012-1445 HOOK, CARRIERHOOK, CARRIER
-
5302953029-0024-10 CARRIER, BLACKCARRIER, BLACK
-
5304553045-0006 HOOK-ASSY, TAIL GATEHOOK-ASSY, TAIL GATE
-
53045A53045-1063 HOOK-ASSYHOOK-ASSY
-
53062A53062-0009-826 GATE-TAIL, C. H. GREENGATE-TAIL, C. H. GREEN
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1480 SCREW, 6X12SCREW, 6X12
-
92009B92009-1661 SCREW, 6X10SCREW, 6X10
-
92009C92009-1662 SCREW, 6X14SCREW, 6X14
-
9201592015-1233 NUT, FLANGED, 6MM, BLACKNUT, FLANGED, 6MM, BLACK
-
92015A92015-1262 NUT, LOCK 6MMNUT, LOCK 6MM
-
92015B92015-1408 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015C92015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-072 WASHER, 12.5X22X1.2WASHER, 12.5X22X1.2
-
92022A92022-1317 WASHER, 8.5X20X1.6, BLACKWASHER, 8.5X20X1.6, BLACK
-
92022B92022-1545 WASHER, 7X18X1.2WASHER, 7X18X1.2
-
9203992039-1229 RIVETRIVET
-
9204392043-1451 PIN, 12X54PIN, 12X54
-
9214592145-1215 SPRING, TENSIONERSPRING, TENSIONER
-
9216192161-0258 DAMPERDAMPER
-
92161A92161-1065 DAMPER, SEATDAMPER, SEAT
-
130130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130BB0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130B130BB0640 BOLT-FLANGED, 6X40BOLT-FLANGED, 6X40
-
130C130BB0850 BOLT-FLANGED, 8X50BOLT-FLANGED, 8X50
-
220220AB0610 SCREW-PAN-CROSS, 6X10SCREW-PAN-CROSS, 6X10
-
554554DA1200 PIN-SNAP, 12MMPIN-SNAP, 12MM
