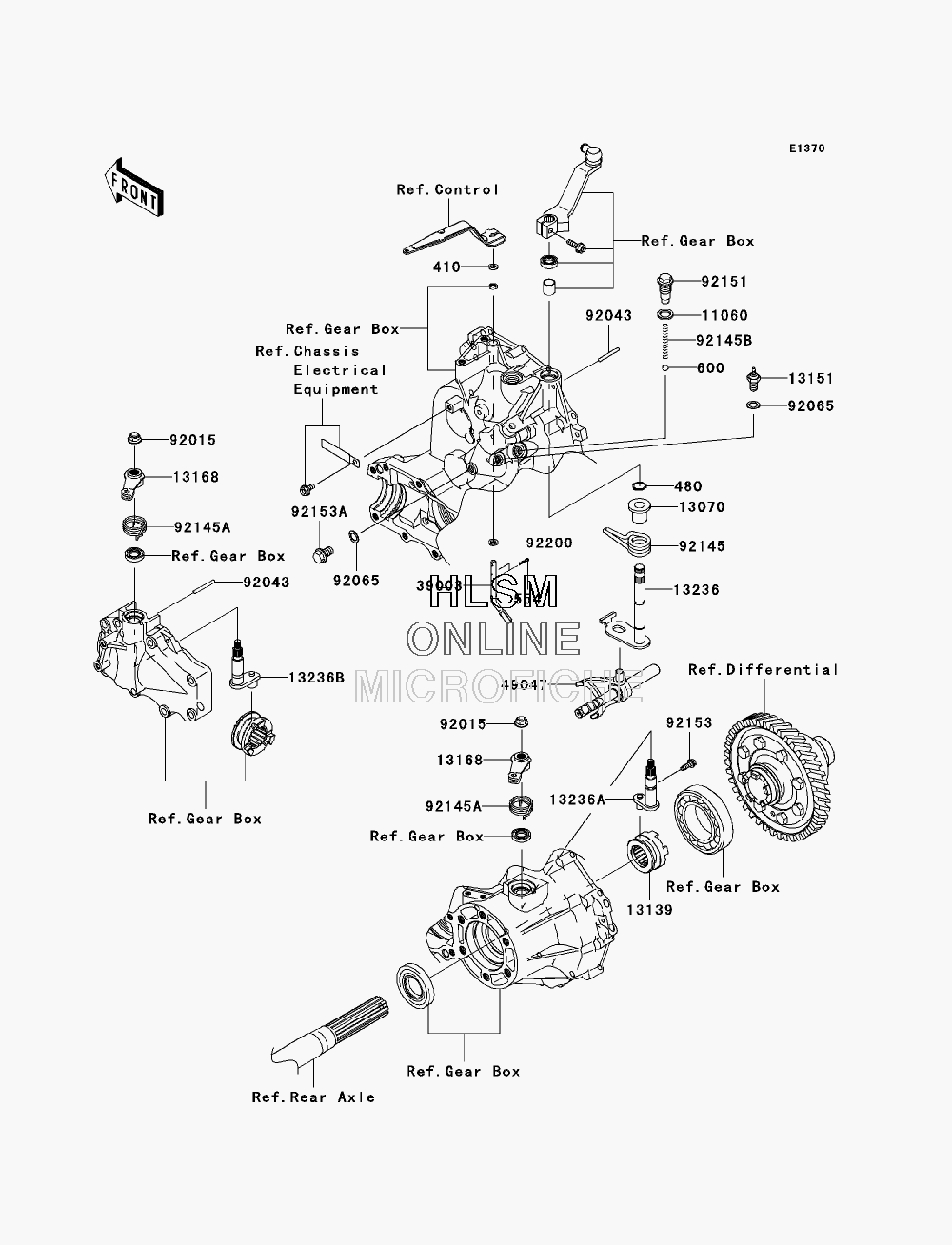

GEAR CHANGE MECHANISM для Kawasaki MULE 610 4X4 HARDWOODS GREEN HD (KAF400C9F) - 2009 года выпуска
-
№АртикулНазвание
-
410410AA0600 WASHER-PLAIN-SMALLWASHER-PLAIN-SMALL
-
480480J1300 CIRCLIP-TYPE-C, 13MMCIRCLIP-TYPE-C, 13MM
-
554554DA0600 PIN-SNAPPIN-SNAP
-
600600A1000 BALL-STEEL, 5/16"BALL-STEEL, 5/16"
-
1106011060-1287 GASKET, 14X20X2GASKET, 14X20X2
-
1307013070-0030 GUIDEGUIDE
-
1313913139-0008 SHIFTER, DIFF LOCKSHIFTER, DIFF LOCK
-
1315113151-1080 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
1316813168-1523 LEVER, DIFF LOCKLEVER, DIFF LOCK
-
1323613236-0036 LEVER-COMP, FR/REARLEVER-COMP, FR/REAR
-
13236A13236-0037 LEVER-COMP, DIFF LOCKLEVER-COMP, DIFF LOCK
-
13236B13236-0038 LEVER-COMP, 2WD/4WDLEVER-COMP, 2WD/4WD
-
3900339003-1053 ARM-PIVOT, GOVERNORARM-PIVOT, GOVERNOR
-
4904749047-0013 ROD-SHIFT, FR/REARROD-SHIFT, FR/REAR
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9204392043-1579 PIN, 4X34.8PIN, 4X34.8
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9214592145-0146 SPRINGSPRING
-
92145A92145-0226 SPRINGSPRING
-
92145B92145-1297 SPRING, CHANGE POSITIONSPRING, CHANGE POSITION
-
9215192151-1687 BOLT, CHANGE POSITIONBOLT, CHANGE POSITION
-
9215392153-0591 BOLT, 6X16.6BOLT, 6X16.6
-
92153A92153-0621 BOLT, 10X16BOLT, 10X16
-
9220092200-2029 WASHER, 6.5X11.5X2.0WASHER, 6.5X11.5X2.0
