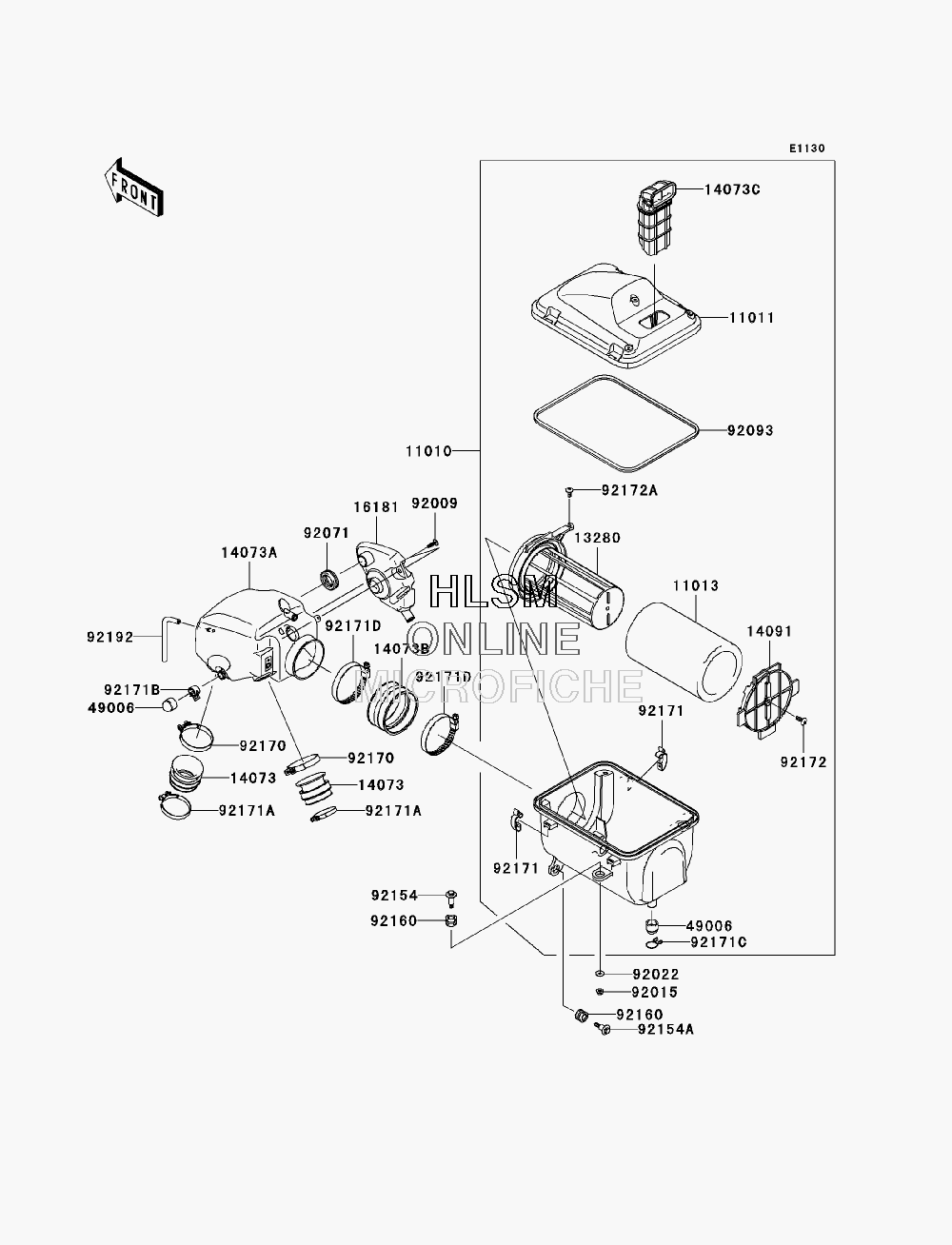

AIR CLEANER для Kawasaki TERYX 750 FI 4X4 LE (KRF750K9F) - 2009 года выпуска
-
№АртикулНазвание
-
1101011010-0184 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101111011-0140 CASE-AIR FILTER, UPPCASE-AIR FILTER, UPP
-
1101311013-0018 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1328013280-0267 HOLDERHOLDER
-
1407314073-0160 DUCTDUCT
-
14073A14073-0257 DUCT, A/C-THROBODUCT, A/C-THROBO
-
14073B14073-0258 DUCT, JOINT, A/C SIDEDUCT, JOINT, A/C SIDE
-
14073C14073-0261 DUCT, AIR INLETDUCT, AIR INLET
-
1409114091-0935 COVERCOVER
-
1618116181-0015 TANK-RESONATORTANK-RESONATOR
-
4900649006-3718 BOOT, DRAINBOOT, DRAIN
-
9200992009-1993 SCREW, TAPPING, 5X20SCREW, TAPPING, 5X20
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9207192071-1013 GROMMET, AIR FILTERGROMMET, AIR FILTER
-
9209392093-0083 SEALSEAL
-
9215492154-0028 BOLT, FLANGED, 6X28.7BOLT, FLANGED, 6X28.7
-
92154A92154-0029 BOLT, FLANGED, 6X27.5BOLT, FLANGED, 6X27.5
-
9216092160-1594 DAMPERDAMPER
-
9217092170-1448 CLAMPCLAMP
-
9217192171-0225 CLAMPCLAMP
-
92171A92171-0722 CLAMPCLAMP
-
92171B92171-1277 CLAMPCLAMP
-
92171C92171-3711 CLAMP, BOOTCLAMP, BOOT
-
92171D92171-3716 CLAMPCLAMP
-
9217292172-0130 SCREW, 6X18SCREW, 6X18
-
92172A92172-0131 SCREW, 6X14SCREW, 6X14
-
9219292192-0763 TUBE, 4X8X127TUBE, 4X8X127
