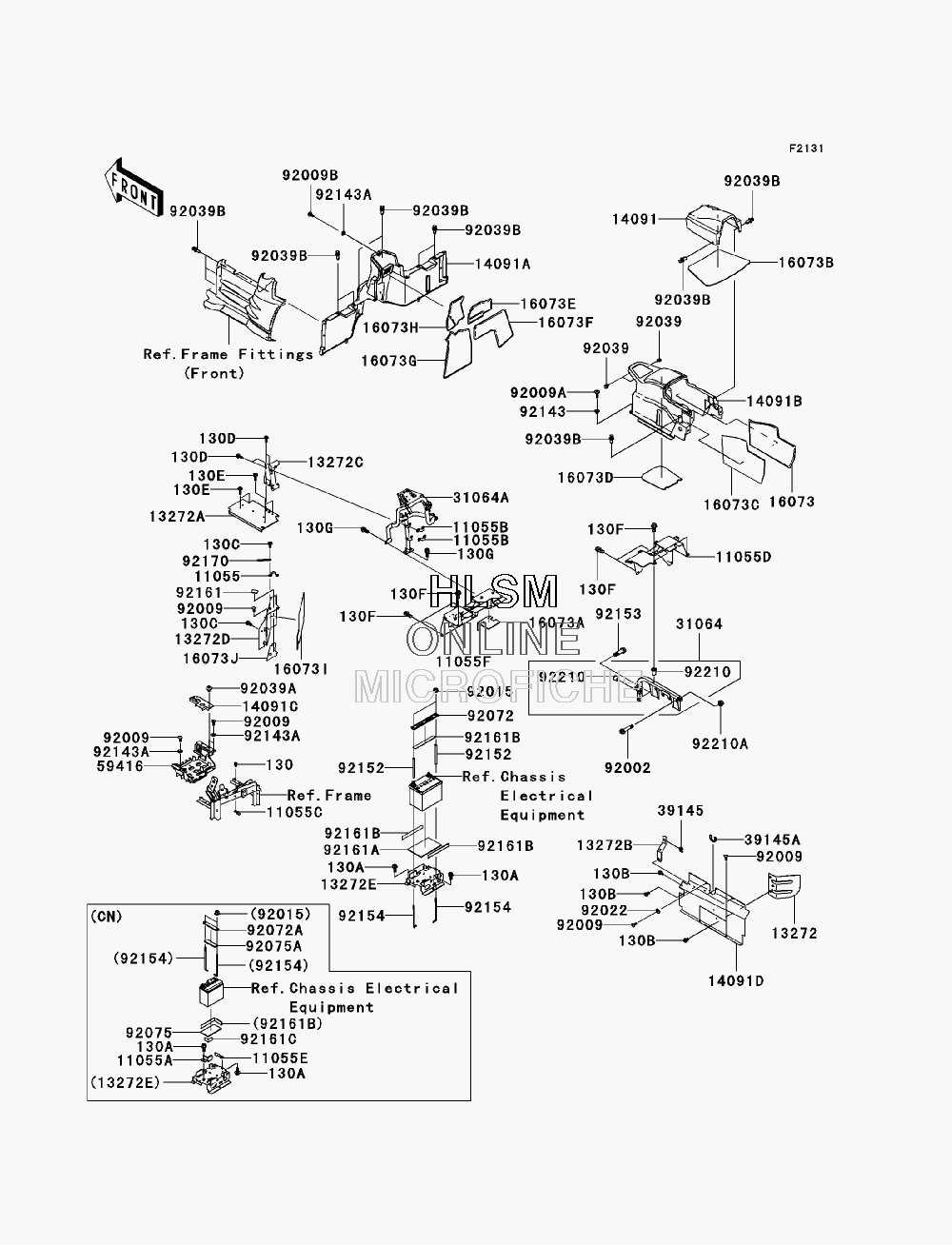

FRAME FITTINGS (REAR) для Kawasaki TERYX 750 FI 4X4 LE (KRF750K9F) - 2009 года выпуска
-
№АртикулНазвание
-
1105511055-0419 BRACKETBRACKET
-
11055A11055-0433 BRACKET (CANADA ONLY)BRACKET (CANADA ONLY)
-
11055B11055-0896 BRACKETBRACKET
-
11055C11055-1384 BRACKETBRACKET
-
11055D11055-1409 BRACKET, SEAT LOCK PLATEBRACKET, SEAT LOCK PLATE
-
11055E11055-1656 BRACKET, BATTERY STOPPER (CANADA ONLY)BRACKET, BATTERY STOPPER (CANADA ONLY)
-
11055F11055-1730 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
1327213272-0318 PLATEPLATE
-
13272A13272-0336 PLATE, TUNNEL PLATEPLATE, TUNNEL PLATE
-
13272B13272-0351 PLATEPLATE
-
13272C13272-0434 PLATEPLATE
-
13272D13272-0731 PLATE, HEAT GUARDPLATE, HEAT GUARD
-
13272E13272-0748 PLATE, BATTERY HOLDERPLATE, BATTERY HOLDER
-
1409114091-0975-6Z COVER, CONSOLE CENTER, F. BLACK (FOR 826)COVER, CONSOLE CENTER, F. BLACK (FOR 826)
-
14091A14091-0982-6Z COVER, SEAT, F. BLACK (FOR 826)COVER, SEAT, F. BLACK (FOR 826)
-
14091B14091-1724-6Z COVER, CONSOLE CENTER, F. BLACK (FOR 826)COVER, CONSOLE CENTER, F. BLACK (FOR 826)
-
14091C14091-1761 COVER, ELECTRICCOVER, ELECTRIC
-
14091D14091-1805 COVER, HEATCOVER, HEAT
-
1607316073-0092 INSULATOR, CENTER CONSOLE, RIGHT HANDINSULATOR, CENTER CONSOLE, RIGHT HAND
-
16073A16073-0097 INSULATOR, SEAT BRACKETINSULATOR, SEAT BRACKET
-
16073B16073-0102 INSULATOR, AIR CLEANER, UPPINSULATOR, AIR CLEANER, UPP
-
16073C16073-0103 INSULATOR, CENTER CONSOLE, LEFT HANDINSULATOR, CENTER CONSOLE, LEFT HAND
-
16073D16073-0104 INSULATOR, CENTER CONSOLE, UPPINSULATOR, CENTER CONSOLE, UPP
-
16073E16073-0105 INSULATOR, LEG COVER, CNT, UPPINSULATOR, LEG COVER, CNT, UPP
-
16073F16073-0106 INSULATOR, LEG COVER, CNT, RIGHT HAND, LWRINSULATOR, LEG COVER, CNT, RIGHT HAND, LWR
-
16073G16073-0107 INSULATOR, LEG COVER, CNT, LEFT HAND, LWRINSULATOR, LEG COVER, CNT, LEFT HAND, LWR
-
16073H16073-0108 INSULATOR, LEG COVER, CNT, LEFT HAND, UPPINSULATOR, LEG COVER, CNT, LEFT HAND, UPP
-
16073I16073-0112 INSULATOR, EXHAUST PIPEINSULATOR, EXHAUST PIPE
-
16073J16073-0113 INSULATOR, EXHAUST PIPEINSULATOR, EXHAUST PIPE
-
3106431064-0181 PIPE-COMPPIPE-COMP
-
31064A31064-0186 PIPE-COMPPIPE-COMP
-
3914539145-0035 TRIM-SEAL, L=53TRIM-SEAL, L=53
-
39145A39145-0040 TRIM-SEAL, L=120TRIM-SEAL, L=120
-
5941659416-0018 CASE-ELECTRICCASE-ELECTRIC
-
9200292002-1740 BOLT, FLANGED, 10X46BOLT, FLANGED, 10X46
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1256 SCREW, 6X22, BLACKSCREW, 6X22, BLACK
-
92009B92009-1621 SCREW, 6X16SCREW, 6X16
-
130130BA0510 BOLT-FLANGED, 5X10BOLT-FLANGED, 5X10
-
130A130BA0818 BOLT-FLANGED, 8X18 (USA ONLY)BOLT-FLANGED, 8X18 (USA ONLY)
-
130A130BA0818 BOLT-FLANGED, 8X18 (CANADA ONLY)BOLT-FLANGED, 8X18 (CANADA ONLY)
-
130B130BB0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130C130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130D130BB0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130E130BB0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
130F130BB1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130G130CA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9203992039-0046 RIVETRIVET
-
92039A92039-0086 RIVETRIVET
-
92039B92039-1229 RIVETRIVET
-
9207292072-0128 BAND, BATTERY, UPP (USA ONLY)BAND, BATTERY, UPP (USA ONLY)
-
92072A92072-1233 BAND, BATTERY (CANADA ONLY)BAND, BATTERY (CANADA ONLY)
-
9207592075-1076 DAMPER (CANADA ONLY)DAMPER (CANADA ONLY)
-
92075A92075-1214 DAMPER (CANADA ONLY)DAMPER (CANADA ONLY)
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9215292152-0794 COLLAR, 10.22X12.7X158.8 (USA ONLY)COLLAR, 10.22X12.7X158.8 (USA ONLY)
-
9215392153-1742 BOLT, FLANGED, 10X38BOLT, FLANGED, 10X38
-
9215492154-0137 BOLT, BATTERYBOLT, BATTERY
-
9216192161-0273 DAMPERDAMPER
-
92161A92161-0578 DAMPER (USA ONLY)DAMPER (USA ONLY)
-
92161B92161-0579 DAMPER (CANADA ONLY)DAMPER (CANADA ONLY)
-
92161B92161-0579 DAMPER (USA ONLY)DAMPER (USA ONLY)
-
92161C92161-0580 DAMPER (CANADA ONLY)DAMPER (CANADA ONLY)
-
9217092170-1925 CLAMPCLAMP
-
9221092210-0507 NUT, POP, 10MMNUT, POP, 10MM
-
92210A92210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
