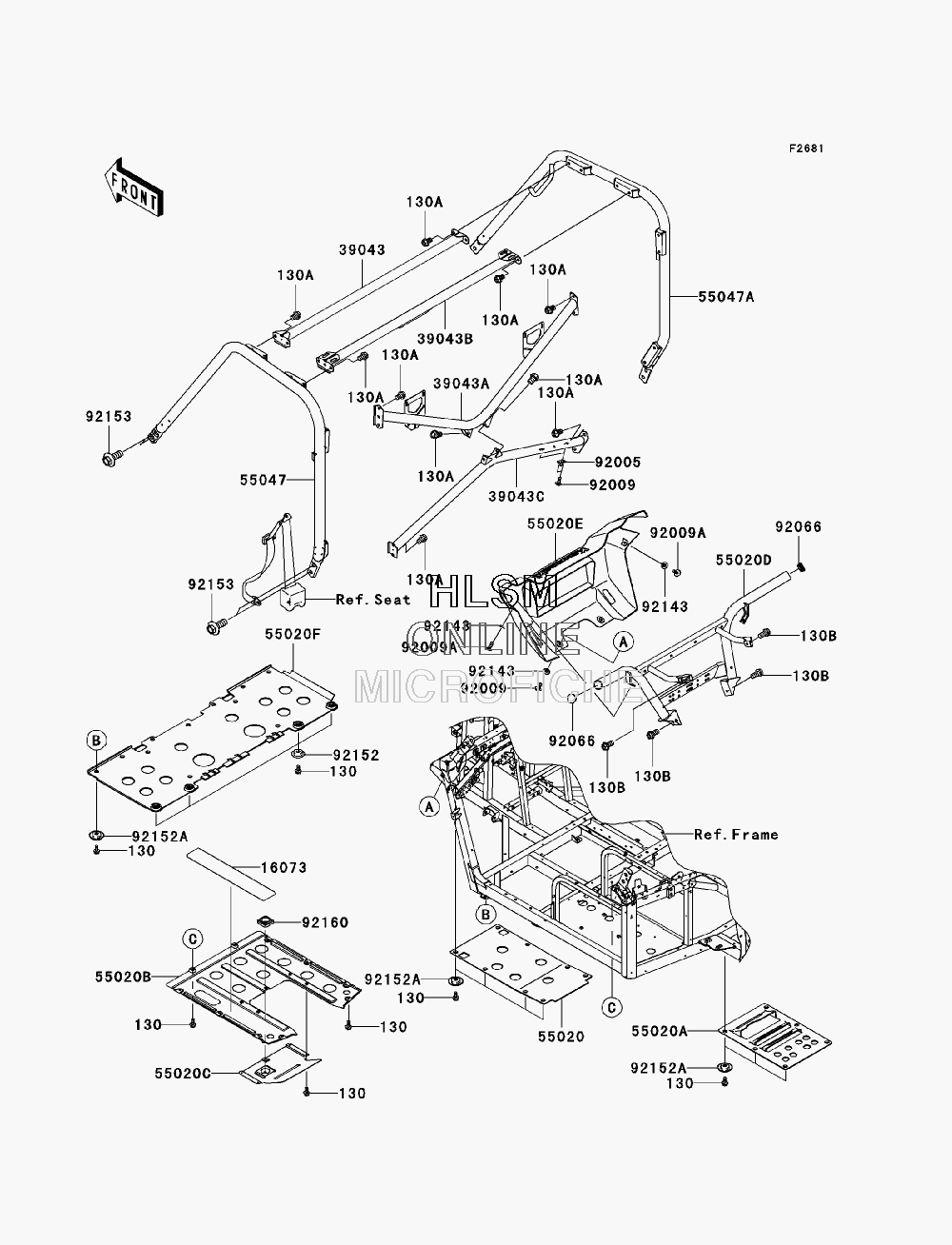

GUARD(S) / CAB FRAME для Kawasaki TERYX 750 FI 4X4 NRA OUTDOORS (KRF750M9F) - 2009 года выпуска
-
№АртикулНазвание
-
130130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130CB1014 BOLT-FLANGED, 10X14BOLT-FLANGED, 10X14
-
130B130CB1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
1607316073-0045 INSULATOR, ENGINE GUARDINSULATOR, ENGINE GUARD
-
3904339043-0001-388 CROSSMEMBER-COMP, UPP, FRONT, BLACK (FOR 16P)CROSSMEMBER-COMP, UPP, FRONT, BLACK (FOR 16P)
-
39043A39043-0005-388 CROSSMEMBER-COMP, REAR, UPP, BLACK (FOR 16P)CROSSMEMBER-COMP, REAR, UPP, BLACK (FOR 16P)
-
39043B39043-0007-388 CROSSMEMBER-COMP, UPP, REAR, BLACK (FOR 16P)CROSSMEMBER-COMP, UPP, REAR, BLACK (FOR 16P)
-
39043C39043-0008-388 CROSSMEMBER-COMP, REAR, LWR, BLACK (FOR 16P)CROSSMEMBER-COMP, REAR, LWR, BLACK (FOR 16P)
-
5502055020-0301 GUARD, SKID, FRONTGUARD, SKID, FRONT
-
55020A55020-0402 GUARD, SKID, REARGUARD, SKID, REAR
-
55020B55020-0437 GUARD, SKID, MIDDLEGUARD, SKID, MIDDLE
-
55020C55020-0438 GUARD, ENGINE, SUBGUARD, ENGINE, SUB
-
55020D55020-0494-388 GUARD, FRONT PIPE, T. BLACK (FOR 16P)GUARD, FRONT PIPE, T. BLACK (FOR 16P)
-
55020E55020-0521-16P GUARD, FRONT COVER, CAMOUFLAGE (FOR 16P)GUARD, FRONT COVER, CAMOUFLAGE (FOR 16P)
-
55020F55020-0522 GUARD, SKID, MIDDLEGUARD, SKID, MIDDLE
-
5504755047-0011-388 BAR-COMP, LEFT HAND, W. BLACKBAR-COMP, LEFT HAND, W. BLACK
-
55047A55047-0012-388 BAR-COMP, RIGHT HAND, W. BLACKBAR-COMP, RIGHT HAND, W. BLACK
-
9200592005-0077 FITTINGFITTING
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9206692066-0114 PLUGPLUG
-
9214392143-1087 COLLARCOLLAR
-
9215292152-0512 COLLARCOLLAR
-
92152A92152-0784 COLLARCOLLAR
-
9215392153-1282 BOLT, FLANGED, 14X36BOLT, FLANGED, 14X36
-
9216092160-1772 DAMPERDAMPER
