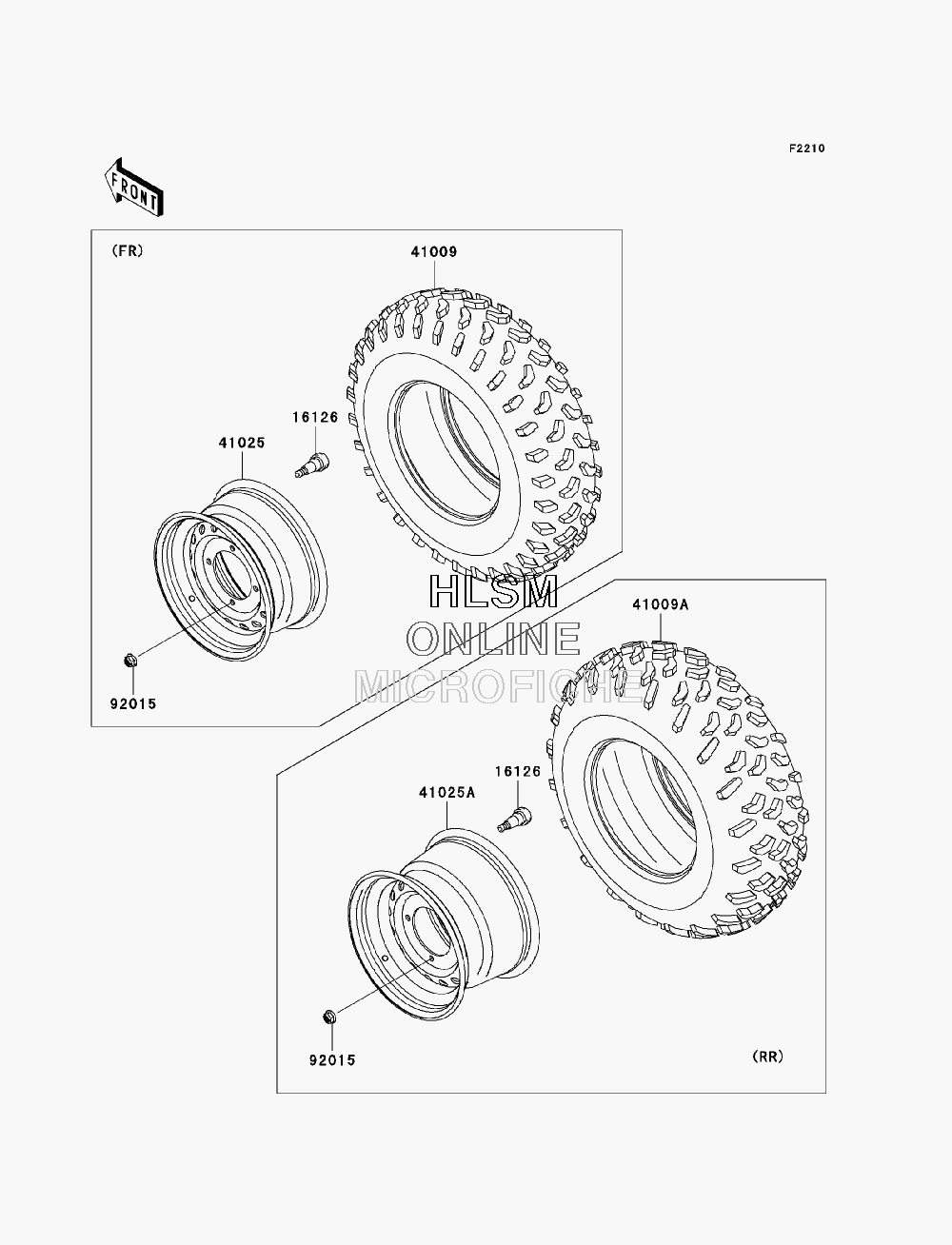

WHEELS - TIRES для Kawasaki TERYX 750 FI 4X4 NRA OUTDOORS (KRF750M9F) - 2009 года выпуска
-
№АртикулНазвание
-
1612616126-4001 VALVE, TIREVALVE, TIRE
-
4100941009-0143 TIRE, FRONT, 26X8.00-12, M989TIRE, FRONT, 26X8.00-12, M989
-
41009A41009-0144 TIRE, REAR, 26X10.00-12, M990TIRE, REAR, 26X10.00-12, M990
-
4102541025-0123-16N RIM, FRONT, 12X6.0AT, CAMOUFLAGE (FOR 16P)RIM, FRONT, 12X6.0AT, CAMOUFLAGE (FOR 16P)
-
41025A41025-0124-16N RIM, REAR, 12X8.0AT, CAMOUFLAGE (FOR 16P)RIM, REAR, 12X8.0AT, CAMOUFLAGE (FOR 16P)
-
9201592015-1706 NUT, 12MMNUT, 12MM
