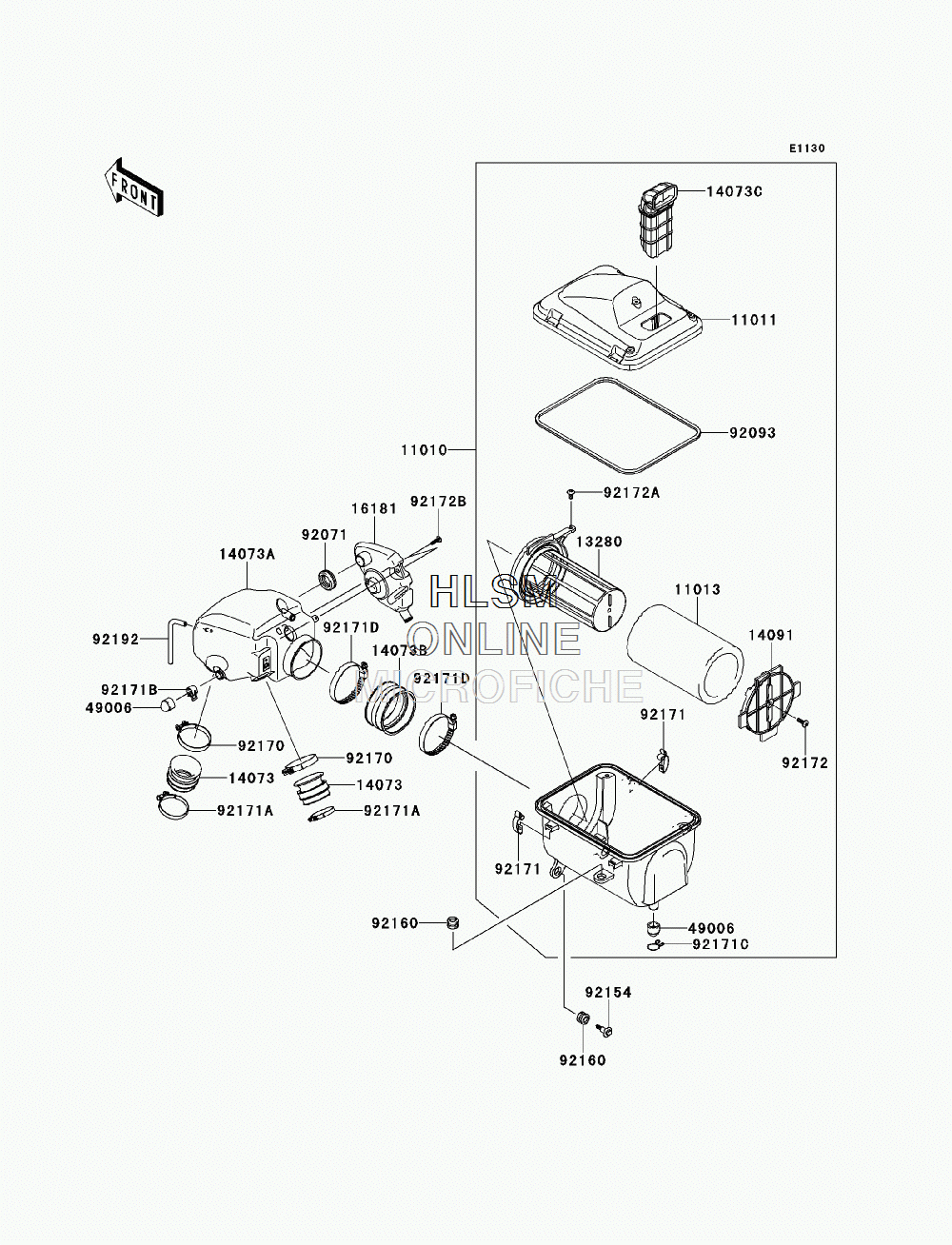

AIR CLEANER для Kawasaki TERYX 750 FI 4X4 (KRF750NAF) - 2010 года выпуска
-
№АртикулНазвание
-
1101011010-0184 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101111011-0140 CASE-AIR FILTER,UPPCASE-AIR FILTER,UPP
-
1101311013-0018 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1328013280-0267 HOLDERHOLDER
-
1407314073-0160 DUCTDUCT
-
14073A14073-0257 DUCT,A/C-THROBODUCT,A/C-THROBO
-
14073B14073-0258 DUCT,JOINT,A/C SIDEDUCT,JOINT,A/C SIDE
-
14073C14073-0261 DUCT,AIR INLETDUCT,AIR INLET
-
1409114091-0935 COVERCOVER
-
1618116181-0015 TANK-RESONATORTANK-RESONATOR
-
4900649006-3718 BOOT,DRAINBOOT,DRAIN
-
9207192071-1013 GROMMET,AIR FILTERGROMMET,AIR FILTER
-
9209392093-0083 SEALSEAL
-
9215492154-0029 BOLT,FLANGED,6X27.5BOLT,FLANGED,6X27.5
-
9216092160-1594 DAMPERDAMPER
-
9217092170-1448 CLAMPCLAMP
-
9217192171-0225 CLAMPCLAMP
-
92171A92171-0722 CLAMPCLAMP
-
92171B92171-1277 CLAMPCLAMP
-
92171C92171-3711 CLAMP,BOOTCLAMP,BOOT
-
92171D92171-3716 CLAMPCLAMP
-
9217292172-0130 SCREW,6X18SCREW,6X18
-
92172A92172-0131 SCREW,6X14SCREW,6X14
-
92172B92172-0444 SCREW,TAPPING,5X20SCREW,TAPPING,5X20
-
9219292192-0763 TUBE,4X8X127TUBE,4X8X127
