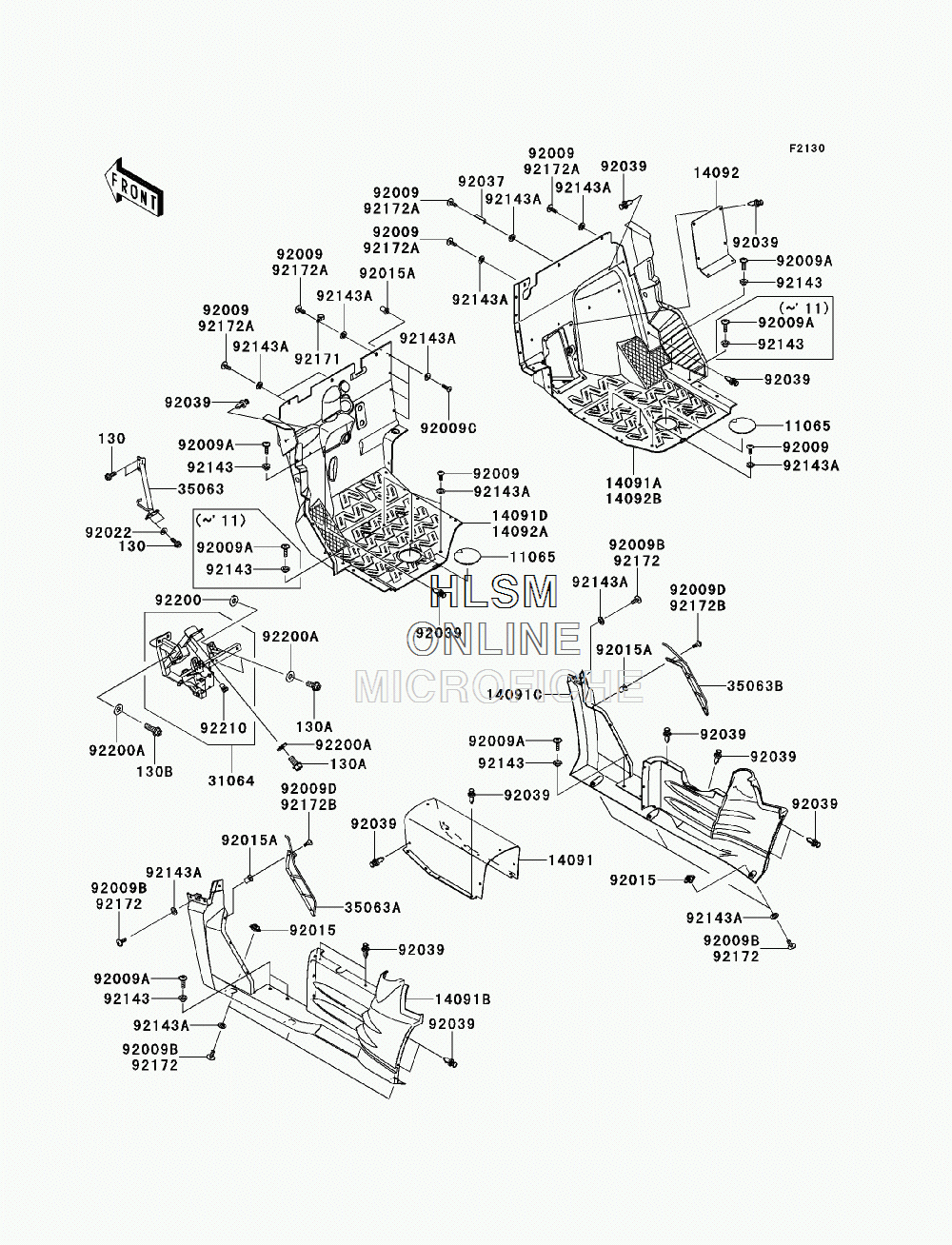

FRAME FITTINGS (FRONT) для Kawasaki TERYX 750 FI 4X4 (KRF750NAF) - 2010 года выпуска
-
№АртикулНазвание
-
130130BA0618 BOLT-FLANGED,6X18BOLT-FLANGED,6X18
-
130A130CA1020 BOLT-FLANGED,10X20BOLT-FLANGED,10X20
-
130B130CB1030 BOLT-FLANGED,10X30BOLT-FLANGED,10X30
-
1106511065-0267 CAPCAP
-
1409114091-0696-6Z COVER,CENTER,F.BLACKCOVER,CENTER,F.BLACK
-
14091A14091-1640 COVER,FLOOR, RIGHT HANDCOVER,FLOOR, RIGHT HAND
-
14091B14091-1686-6Z COVER,SIDE, LEFT HAND,F.BLACKCOVER,SIDE, LEFT HAND,F.BLACK
-
14091C14091-1687-6Z COVER,SIDE, RIGHT HAND,F.BLACKCOVER,SIDE, RIGHT HAND,F.BLACK
-
14091D14091-1755 COVER,FLOOR, LEFT HANDCOVER,FLOOR, LEFT HAND
-
1409214092-0079-6Z COVER, RESERV. TANK,F.BLACKCOVER, RESERV. TANK,F.BLACK
-
3106431064-0172 PIPE-COMPPIPE-COMP
-
3506335063-0518 STAY,MASTER CYLINDERSTAY,MASTER CYLINDER
-
35063A35063-0544 STAY,SIDE COVER, LEFT HANDSTAY,SIDE COVER, LEFT HAND
-
35063B35063-0545 STAY,SIDE COVER, RIGHT HANDSTAY,SIDE COVER, RIGHT HAND
-
9200992009-1166 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
92009A92009-1256 SCREW,6X22,BLACKSCREW,6X22,BLACK
-
92009B92009-1621 SCREW,6X16SCREW,6X16
-
92009C92009-1655 SCREW,5X18SCREW,5X18
-
92009D92009-1934 SCREW,5X20SCREW,5X20
-
9201592015-1487 NUTNUT
-
92015A92015-1757 NUT,WELL,5MMNUT,WELL,5MM
-
9202292022-2373 WASHER,6.2X15.0X1.2WASHER,6.2X15.0X1.2
-
9203792037-1316 CLAMP,HARNESSCLAMP,HARNESS
-
9203992039-1229 RIVETRIVET
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9217192171-1279 CLAMPCLAMP
-
9220092200-0121 WASHER,10X22X3.2WASHER,10X22X3.2
-
92200A92200-2009 WASHER,10.3X23X1.6WASHER,10.3X23X1.6
-
9221092210-1397 NUT,POP,6MM,L=15NUT,POP,6MM,L=15
