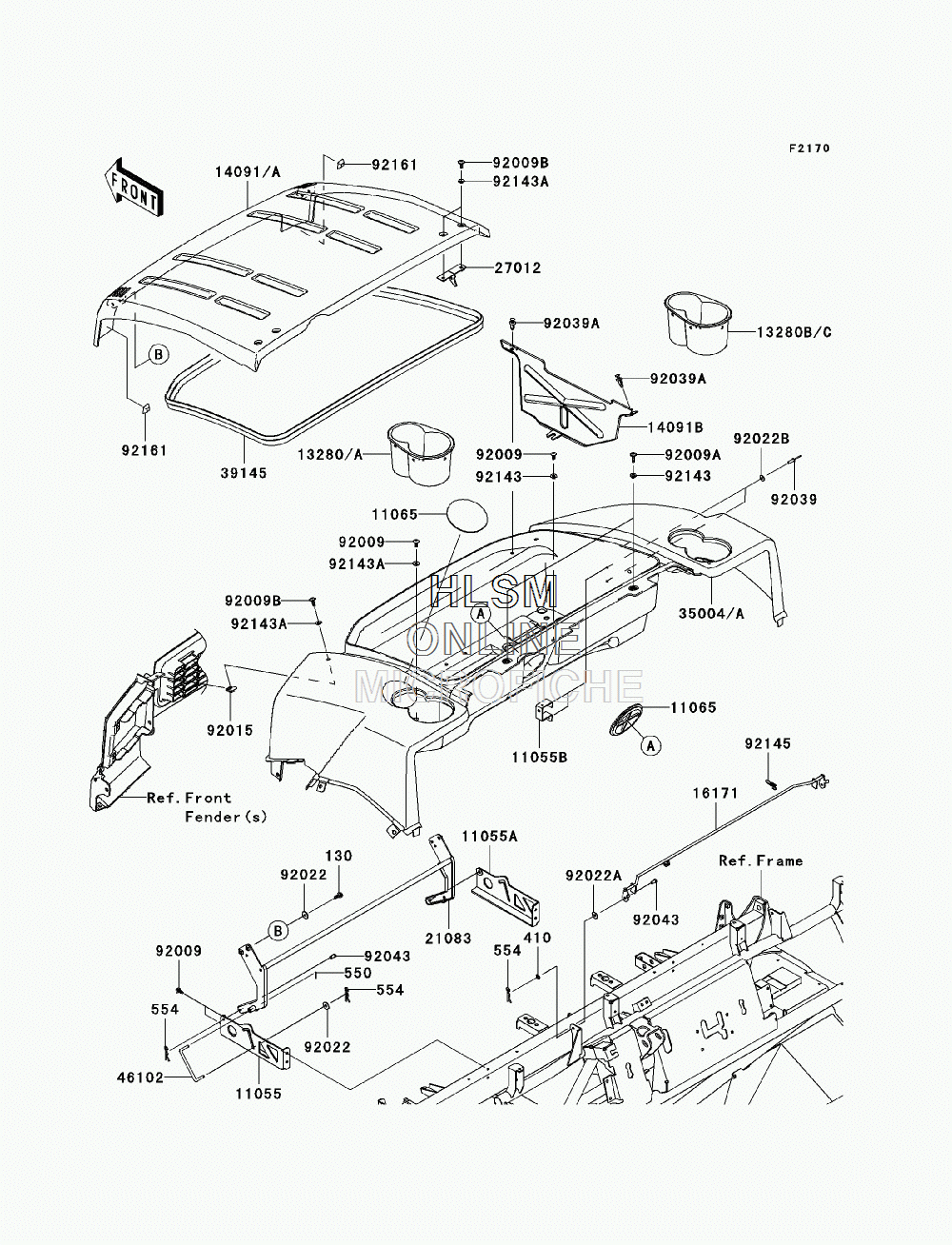

FENDER(S) для Kawasaki MULE 4000 (KAF620PBF) - 2011 года выпуска
-
№АртикулНазвание
-
130130BB0616 BOLT-FLANGED,6X16BOLT-FLANGED,6X16
-
410410AA0600 WASHER-PLAIN-SMALLWASHER-PLAIN-SMALL
-
550550AA1615 PIN-COTTER,1.6X15PIN-COTTER,1.6X15
-
554554DA0600 PIN-SNAPPIN-SNAP
-
1105511055-0037 BRACKET,HINGE, LEFT HANDBRACKET,HINGE, LEFT HAND
-
11055A11055-0038 BRACKET,HINGE, RIGHT HANDBRACKET,HINGE, RIGHT HAND
-
11055B11055-0124 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1106511065-1053-6Z CAP,F.BLACKCAP,F.BLACK
-
13280A13280-0265-286 HOLDER,CUP HOLDER, LEFT HAND,W.GREENHOLDER,CUP HOLDER, LEFT HAND,W.GREEN
-
13280C13280-0266-286 HOLDER,CUP HOLDER, RIGHT HAND,W.GREENHOLDER,CUP HOLDER, RIGHT HAND,W.GREEN
-
14091A14091-0829-286 COVER, FRONT FENDER,W.GREENCOVER, FRONT FENDER,W.GREEN
-
14091B14091-1715 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
1617116171-0013 LINKLINK
-
2108321083-0051 ARM,HOODARM,HOOD
-
2701227012-0119 HOOK,HOODHOOK,HOOD
-
35004A35004-0096-286 FENDER-FRONT,CNT,W.GREENFENDER-FRONT,CNT,W.GREEN
-
3914539145-0032 TRIM-SEAL,L=2350TRIM-SEAL,L=2350
-
4610246102-0103 RODROD
-
9200992009-1166 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
92009A92009-1256 SCREW,6X22,BLACKSCREW,6X22,BLACK
-
92009B92009-1621 SCREW,6X16SCREW,6X16
-
9201592015-1678 NUT,CLAMP,6MMNUT,CLAMP,6MM
-
9202292022-1346 WASHER,6.5X20X1.6,BLACKWASHER,6.5X20X1.6,BLACK
-
92022A92022-1545 WASHER,7X18X1.2WASHER,7X18X1.2
-
92022B92022-1949 WASHER,4.3X12.5X1WASHER,4.3X12.5X1
-
9203992039-1150 RIVETRIVET
-
92039A92039-1229 RIVETRIVET
-
9204392043-1626 PIN,6X9PIN,6X9
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9214592145-0215 SPRINGSPRING
-
9216192161-0790 DAMPER, FRONT HOODDAMPER, FRONT HOOD
