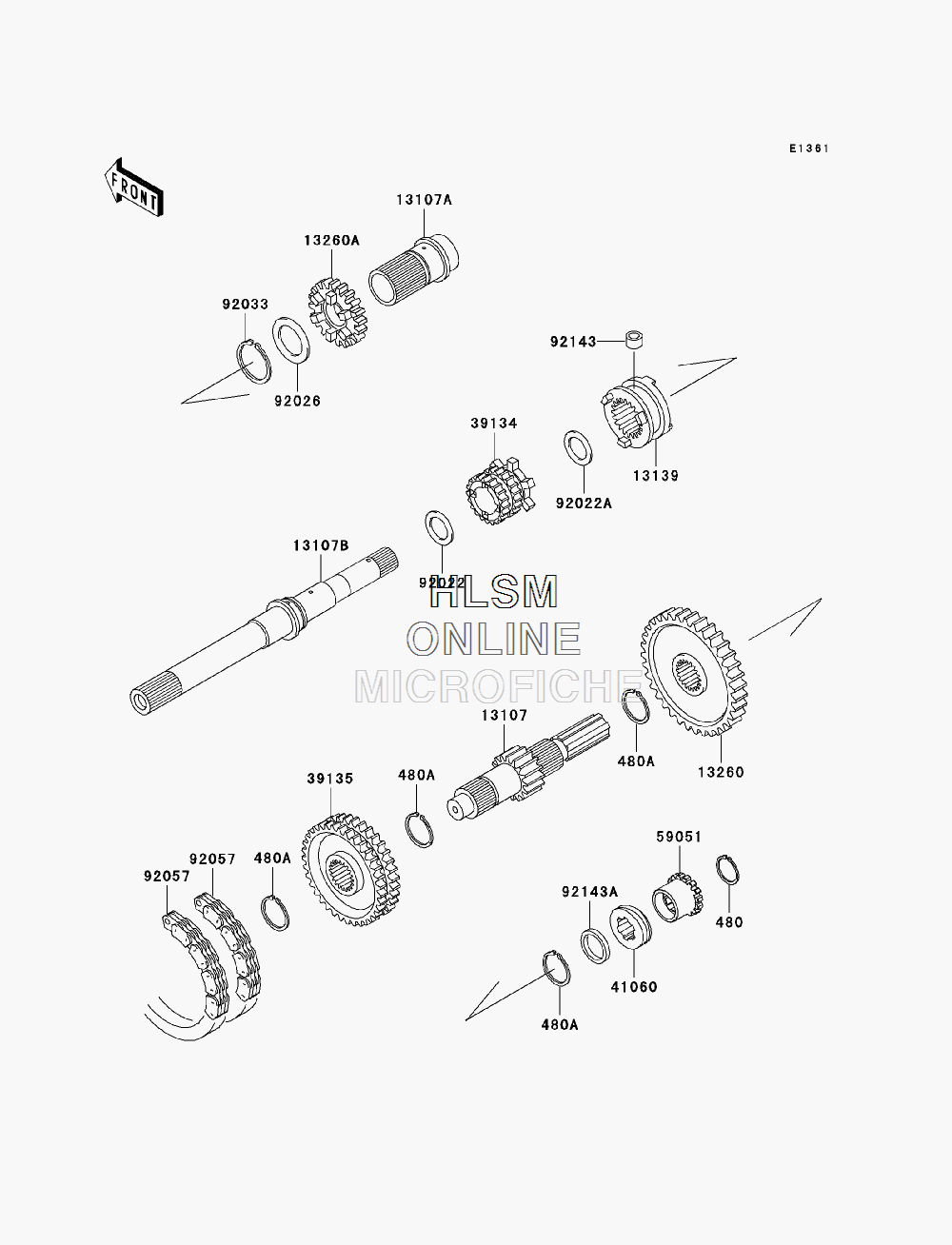

TRANSMISSION для Kawasaki MULE 4000 (KAF620PBF) - 2011 года выпуска
-
№АртикулНазвание
-
480480J2500 CIRCLIP-TYPE-C,25MMCIRCLIP-TYPE-C,25MM
-
480A480J3000 CIRCLIP-TYPE-C,30MMCIRCLIP-TYPE-C,30MM
-
1310713107-0191 SHAFT,COUNTERSHAFT,COUNTER
-
13107A13107-1315 SHAFT,INPUT OUTERSHAFT,INPUT OUTER
-
13107B13107-1471 SHAFT,INPUTSHAFT,INPUT
-
1313913139-1072 SHIFTER, FR/REARSHIFTER, FR/REAR
-
1326013260-1288 GEAR,OUTPUT REVERSE,51TGEAR,OUTPUT REVERSE,51T
-
13260A13260-1462 GEAR,INPUT 28TGEAR,INPUT 28T
-
3913439134-1055 SPROCKET-DRIVE,20TSPROCKET-DRIVE,20T
-
3913539135-1055 SPROCKET-DRIVEN,41TSPROCKET-DRIVEN,41T
-
4106041060-1147 GEAR-METER SCREWGEAR-METER SCREW
-
5905159051-0086 GEAR-SPUR,15TGEAR-SPUR,15T
-
9202292022-1109 WASHER,25.3X33X1WASHER,25.3X33X1
-
92022A92022-1573 WASHER,22.3X33X1.0WASHER,22.3X33X1.0
-
9202692026-1375 SPACER,35.3X44X0.5SPACER,35.3X44X0.5
-
9203392033-1269 RING-SNAPRING-SNAP
-
9205792057-1364 CHAIN, REVERSE,81RIGHT HAND2520,54LCHAIN, REVERSE,81RIGHT HAND2520,54L
-
9214392143-1497 COLLAR,8X14X10.5COLLAR,8X14X10.5
-
92143A92143-1597 COLLAR,25X32X4.5COLLAR,25X32X4.5
